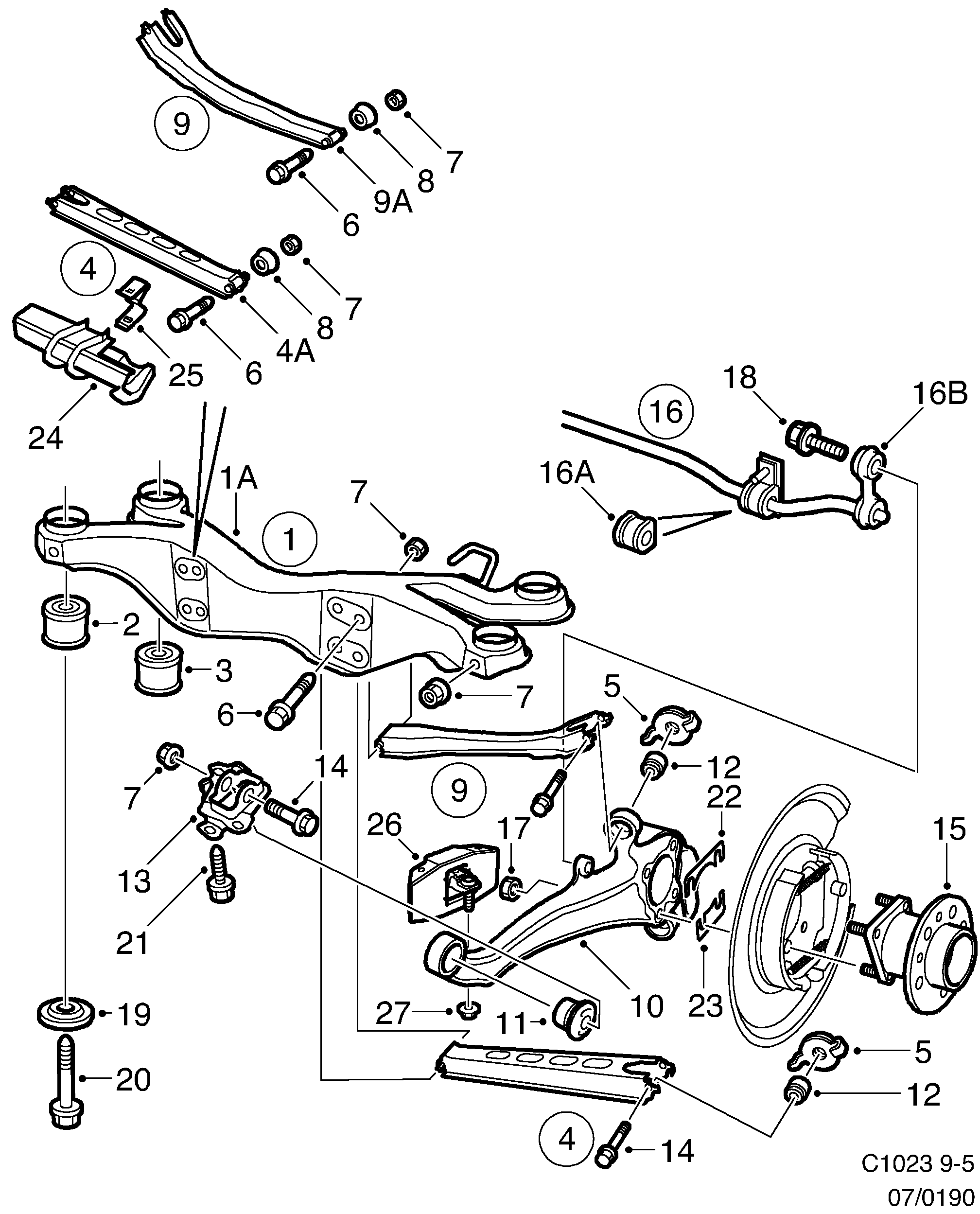

Group 7 Suspension system, section 190
| Pos | Article | Part No. |
|---|---|---|
| 1 | Rear axle | 12781680 (replaces 4906384) |
| 1 | Rear axle | 12781680 (replaces 5059316) |
| 1A | Rear axle | 12781680 (replaces 4906376) |
| 1A | Rear axle | 12781680 (replaces 5174735) |
| 1A | Rear axle | 12781680 (replaces 9227696) |
| 1A | Rear axle | 12781680 |
| 2 | Bushing | 4566394 |
| 2 | Bushing | 5059258 |
| 2 | Bushing | 5236260 |
| 3 | Bushing | 4687125 |
| 3 | Bushing | 5059266 |
| 3 | Bushing | 5236278 |
| 4 | Cross stay | 90538444 (replaces 4565263) |
| 4 | Cross stay | 90538444 |
| 4A | Bushing | 4566378 |
| 5 | Nut | 4347894 |
| 5 | Nut | 90496714 |
| 6 | Screw | 4347506 |
| 6 | Screw | 90539300 |
| 6 | Screw | 12783968 |
| 7 | Nut | 4348009 |
| 7 | Nut | 11094488 (replaces 4348835) |
| 7 | Nut | 11094488 |
| 8 | Washer | 4688354 |
| 8 | Washer | 90575452 |
| 9 | Cross stay | 90538916 (replaces 4565255) |
| 9 | Cross stay | 90538916 |
| 10 | Longitudinal link | 4689964 |
| 10 | Control arm, left | 12762582 |
| 10 | Control arm, left | 12781135 |
| 10 | Longitudinal link | 4689972 |
| 10 | Control arm, right | 12762583 |
| 10 | Control arm, right | 12781134 |
| 11 | Bushing | 5059811 (replaces 4566600) |
| 11 | Bushing | 5059811 |
| 11 | Bushing | 12781136 (replaces 5063383) |
| 11 | Bushing | 12781136 (replaces 5236633) |
| 11 | Bushing | 12781136 |
| 12 | Bushing | 4567244 |
| 13 | Bracket | 4569604 |
| 13 | Bracket | 9127784 |
| 13 | Bracket | 4569596 |
| 13 | Bracket | 9127785 |
| 14 | Screw | 4347514 |
| 16 | Stabilizer bar | 4906038 |
| 16 | Stabilizer bar | 4906046 |
| 16 | Stabilizer bar | 5239116 |
| 16 | Stabilizer bar | 5239124 (replaces 4906053) |
| 16 | Stabilizer bar | 5239124 |
| 16A | Bearing | 4906731 |
| 16A | Bearing | 4906749 |
| 16A | Bearing | 4906756 |
| 16B | Link | 4565859 |
| 16B | Link | 4906111 |
| 17 | Flange lock nut | 90538869 (replaces 4345153) |
| 18 | Screw | 4347522 |
| 18 | Screw | 11096631 |
| 19 | Washer | 4347571 |
| 19 | Washer | 90495598 |
| 20 | Screw | 4940177 |
| 21 | Screw | 4347852 |
| 21 | Screw | 90497723 |
| 22 | Shim | 4908174 |
| 23 | Shim | 4908166 |
| 24 | Protecting casing | 9127955 (replaces 5055132) |
| 24 | Protecting casing | 9127956 (replaces 5055140) |
| 25 | Clip | 9127957 (replaces 5057146) |
| 26 | Vibration damper | 5063029 |
| 27 | Nut | 11074604 (replaces 4347480) |
| 27 | Hexagon nut | 11074604 |
