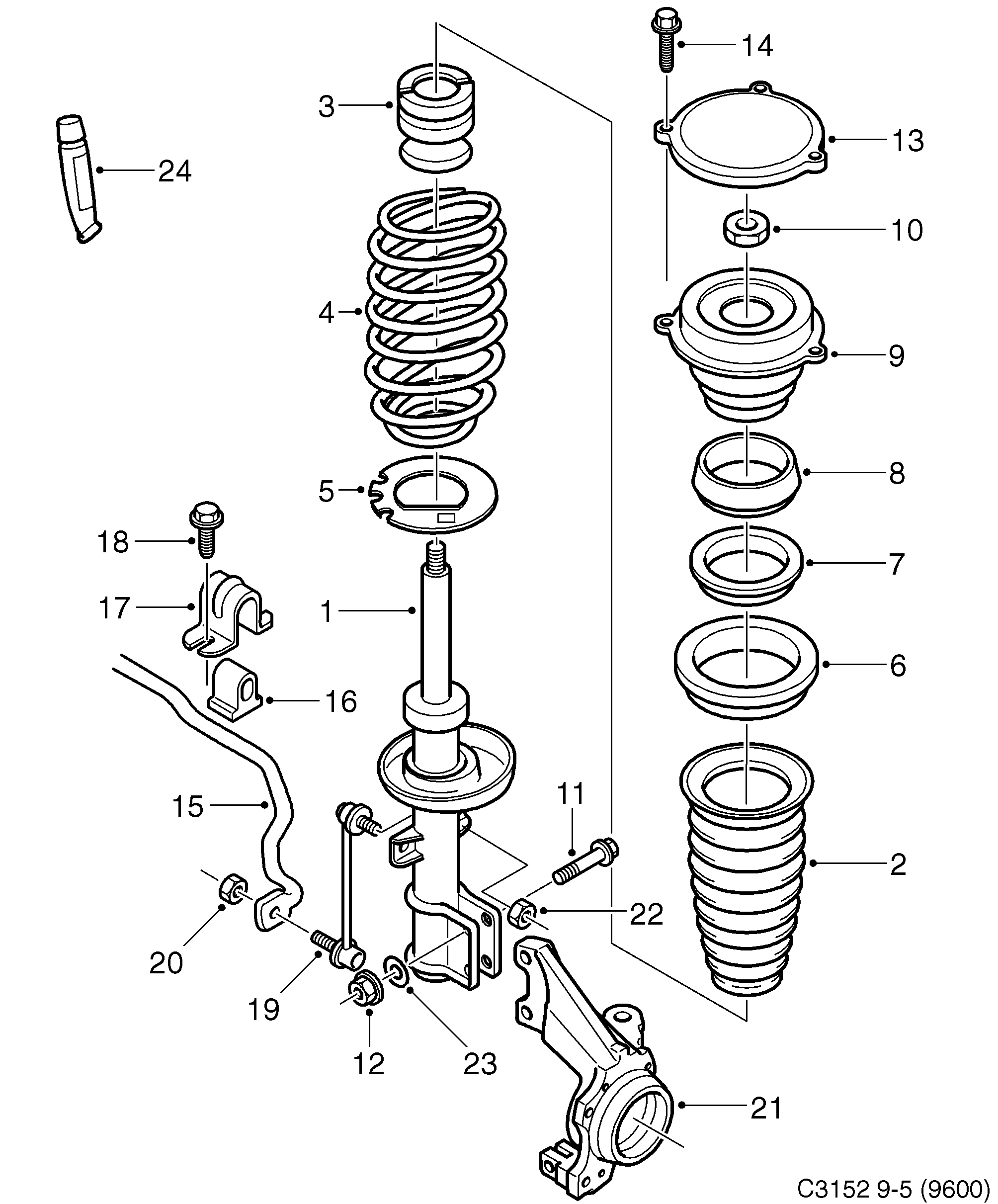

Group 7 Suspension system, section 120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring strut | 12760161 |
| 1 | Spring strut | 12760162 |
| 1 | Spring strut | 12760163 |
| 2 | Bellows | 4565180 |
| 3 | Bump stop | 5232863 |
| 4 | Spring | 12755246 |
| 4 | Spring | 12755248 |
| 4 | Compression spring | 5233796 |
| 4 | Spring | 12760122 |
| 4 | Spring | 12760123 |
| 4 | Spring | 12760124 |
| 5 | Spacer | 4689378 |
| 6 | Spring support | 4689519 |
| 7 | Thrust bearing | 4909701 |
| 8 | Seal | 12772082 |
| 9 | Support bearing | 5233366 |
| 10 | Lock nut | 7979537 |
| 11 | Hexagon screw | 92152298 |
| 12 | Nut | 11094488 (replaces 4348835) |
| 13 | Cover | 4565230 |
| 14 | Screw | 7987217 |
| 15 | Stabilizer bar | 12761909 |
| 15 | Stabilizer bar | 12761908 |
| 16 | Bearing | 12781132 (replaces 5235742) |
| 17 | Cap | 4687109 |
| 17 | Cap | 13111105 |
| 18 | Screw | 11900016 (replaces 7976897) |
| 18 | Screw | 92152021 |
| 19 | Pendulum | 5236823 |
| 20 | Nut | 11094488 |
| 23 | Washer | 11011199 (replaces 92150260) |
| 24 | Grease | 9117810 |
