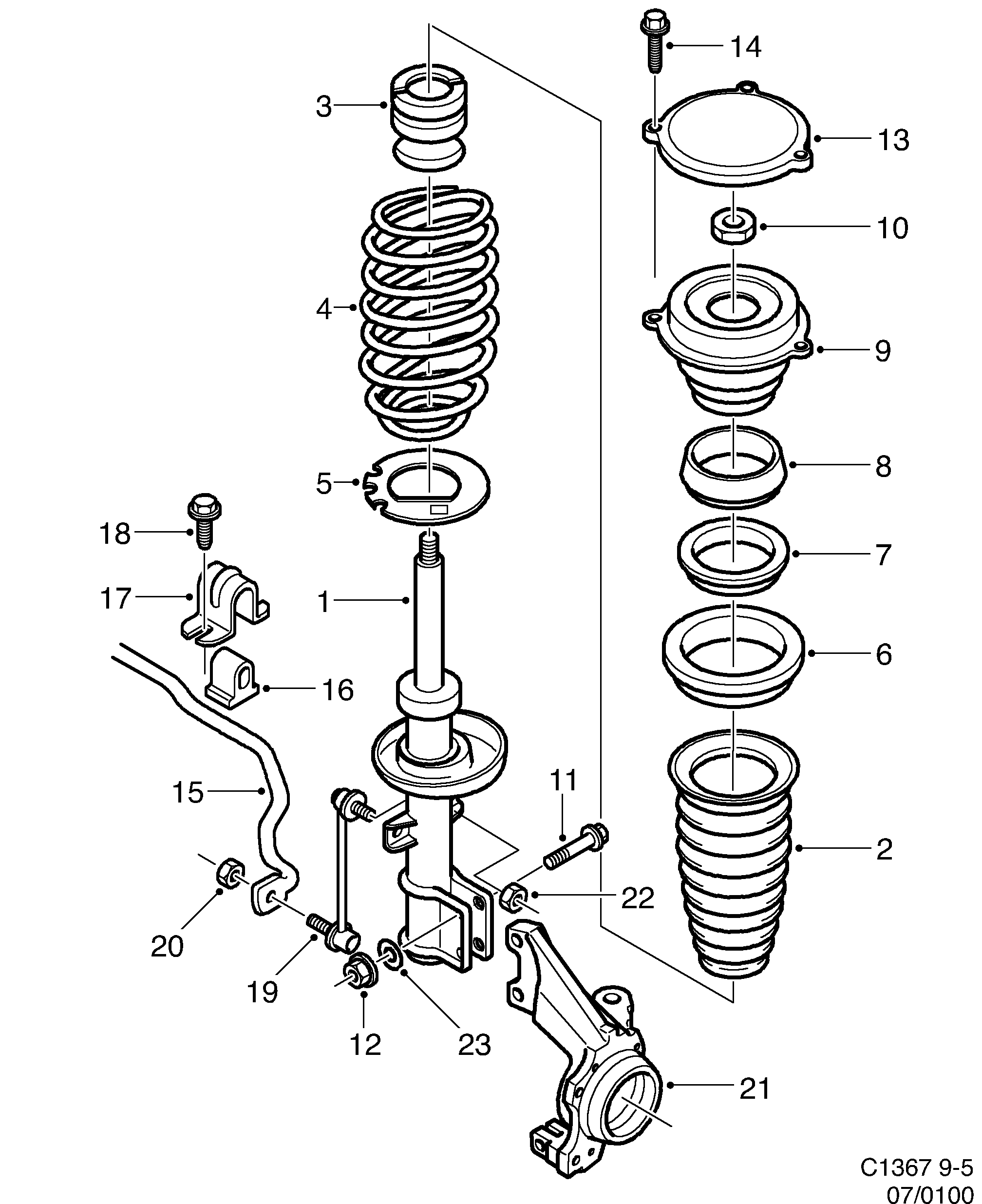

Group 7 Suspension system, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring strut | 5063466 (replaces 4905014) |
| 1 | Spring strut | 5063466 (replaces 5058417) |
| 1 | Spring strut | 5063466 (replaces 4565214) |
| 1 | Spring strut | 5063466 (replaces 5063458) |
| 1 | Spring strut | 5063466 (replaces 4689329) |
| 1 | Spring strut | 5063466 |
| 1 | Spring strut | 4566634 (replaces 4566626) |
| 1 | Spring strut | 4566634 |
| 1 | Spring strut | 12760162 (replaces 5234174) |
| 1 | Spring strut | 12760162 (replaces 5336920) |
| 1 | Spring strut | 12760162 (replaces 5234182) |
| 1 | Spring strut | 12760162 (replaces 5336938) |
| 1 | Spring strut | 12760163 (replaces 5234190) |
| 1 | Spring strut | 12760163 (replaces 5336946) |
| 1 | Spring strut | 12760163 (replaces 5234208) |
| 1 | Spring strut | 12760163 (replaces 5336953) |
| 2 | Bellows | 4565180 |
| 3 | Bump stop | 5232863 (replaces 4837415) |
| 3 | Bump stop | 5232863 |
| 4 | Compression spring | 4566642 |
| 4 | Compression spring | 4566659 |
| 4 | Compression spring | 5062294 |
| 4 | Compression spring | 12755246 (replaces 4566667) |
| 4 | Compression spring | 12755246 (replaces 5062302) |
| 4 | Compression spring | 5062310 (replaces 4566675) |
| 4 | Compression spring | 5062310 |
| 4 | Compression spring | 5233796 (replaces 5056338) |
| 4 | Compression spring | 5062328 |
| 4 | Compression spring | 5062344 (replaces 5062187) |
| 4 | Compression spring | 5062344 |
| 4 | Compression spring | 5062195 |
| 4 | Compression spring | 5062351 |
| 4 | Compression spring | 5062369 (replaces 5062237) |
| 4 | Compression spring | 5062369 |
| 4 | Compression spring | 4566709 |
| 4 | Compression spring | 5237557 |
| 4 | Compression spring | 12755246 (replaces 5233770) |
| 4 | Compression spring | 12755248 (replaces 5233788) |
| 4 | Compression spring | 5233796 |
| 4 | Compression spring | 5233432 |
| 4 | Compression spring | 5234562 |
| 4 | Compression spring | 5234570 |
| 4 | Compression spring | 5234588 |
| 4 | Compression spring | 5234802 |
| 5 | Spacer | 4689378 |
| 6 | Spring support | 4689519 |
| 7 | Thrust bearing | 4909701 (replaces 4246377) |
| 7 | Thrust bearing | 4909701 |
| 8 | Seal | 12772082 (replaces 4565172) |
| 9 | Support bearing | 5061007 (replaces 4565149) |
| 9 | Support bearing | 5061007 (replaces 5057625) |
| 9 | Support bearing | 5061007 |
| 9 | Support bearing | 5233366 |
| 9 | Support bearing | 5233366 (replaces 5239843) |
| 10 | Lock nut | 7979537 |
| 11 | Screw | 4940219 |
| 11 | Screw | 92152298 (replaces 4348538) |
| 12 | Nut | 4348009 |
| 12 | Nut | 11094488 (replaces 4348835) |
| 13 | Cover | 4565230 |
| 14 | Flange screw | 7987217 (replaces 7986581) |
| 14 | Screw | 7987217 |
| 15 | Stabilizer bar | 5055108 |
| 15 | Stabilizer bar | 4835534 |
| 15 | Stabilizer bar | 12761908 (replaces 4835625) |
| 15 | Stabilizer bar | 12761909 (replaces 5234786) |
| 16 | Bearing | 90468567 (replaces 4686820) |
| 16 | Bearing | 5059795 |
| 16 | Bearing | 5059803 |
| 16 | Bearing | 12781132 (replaces 5235742) |
| 17 | Cap | 4687109 |
| 18 | Screw | 11900016 (replaces 7976897) |
| 19 | Pendulum | 5236823 (replaces 4686606) |
| 19 | Pendulum | 5236823 |
| 20 | Lock nut | 90304096 (replaces 4345567) |
| 23 | Washer | 11011199 (replaces 8073116) |
