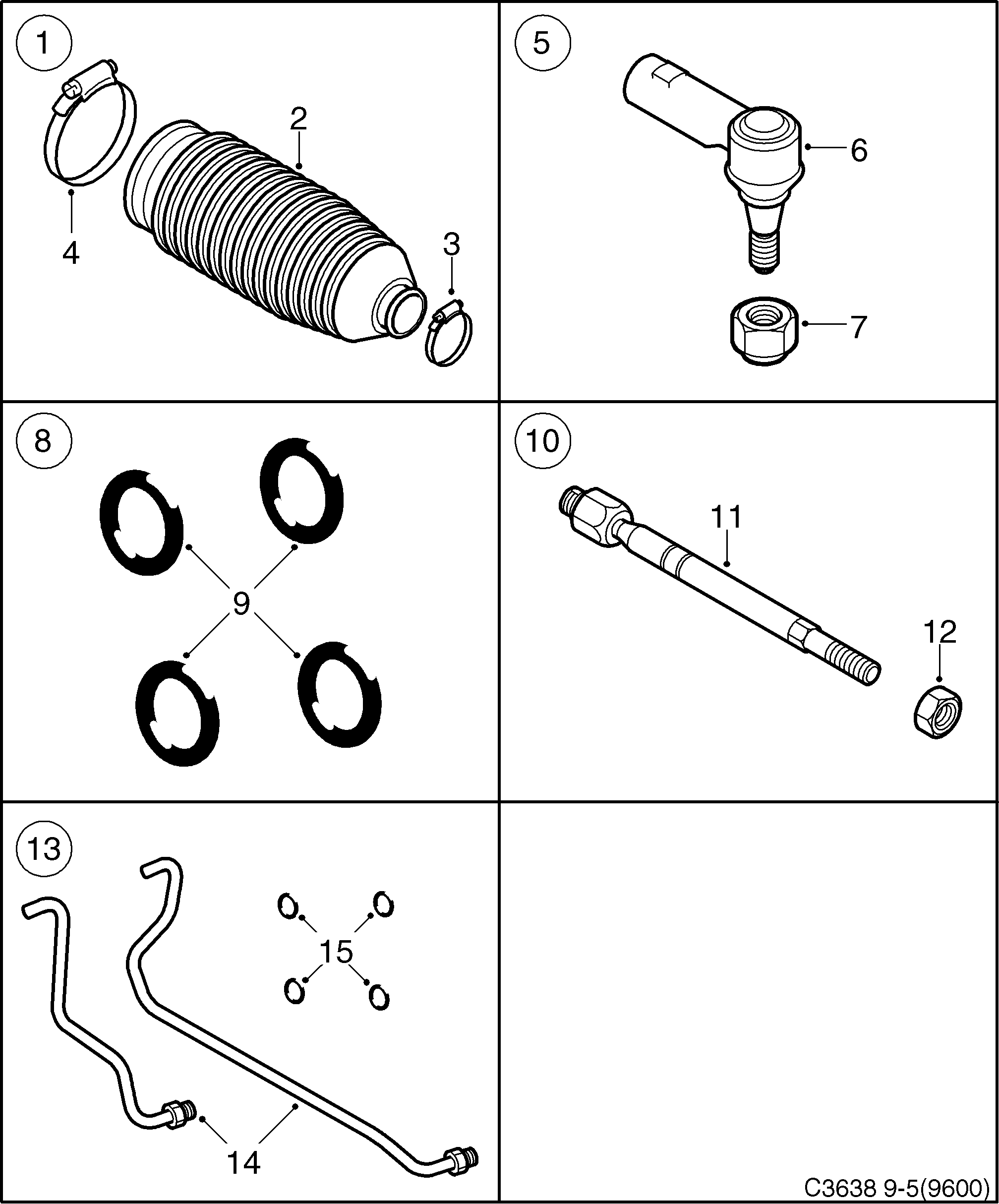

Group 6 Front wheel suspension, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bellows kit | 93194334 (replaces 4905865) |
| 2 | Bellows | 4905667 |
| 3 | Clamp | 12781811 (replaces 4905675) |
| 4 | Clamp | 12781812 (replaces 4905683) |
| 5 | Drag link end | 4836540 |
| 6 | Drag link end | 4905949 |
| 7 | Lock nut | 90304096 (replaces 4345567) |
| 5 | Drag link end | 93194328 (replaces 5239314) |
| 7 | Nut | 4348009 |
| 5 | Repair kit | 93194328 |
| 7 | Nut | 13136972 |
| 5 | Drag link end | 93194329 (replaces 5239322) |
| 5 | Repair kit | 93194329 |
| 8 | O-ring | 4836565 |
| 9 | O-ring | 4836466 |
| 10 | Steering rod | 4836557 |
| 11 | Steering rod | 5233424 |
| 12 | Nut | 12781815 (replaces 8972309) |
| 10 | Steering rod | 93194335 (replaces 5239330) |
| 10 | Repair kit | 93194335 |
| 11 | Steering rod | 5235585 |
| 13 | Repair kit | 93194330 |
| 13 | Repair kit | 93194337 |
