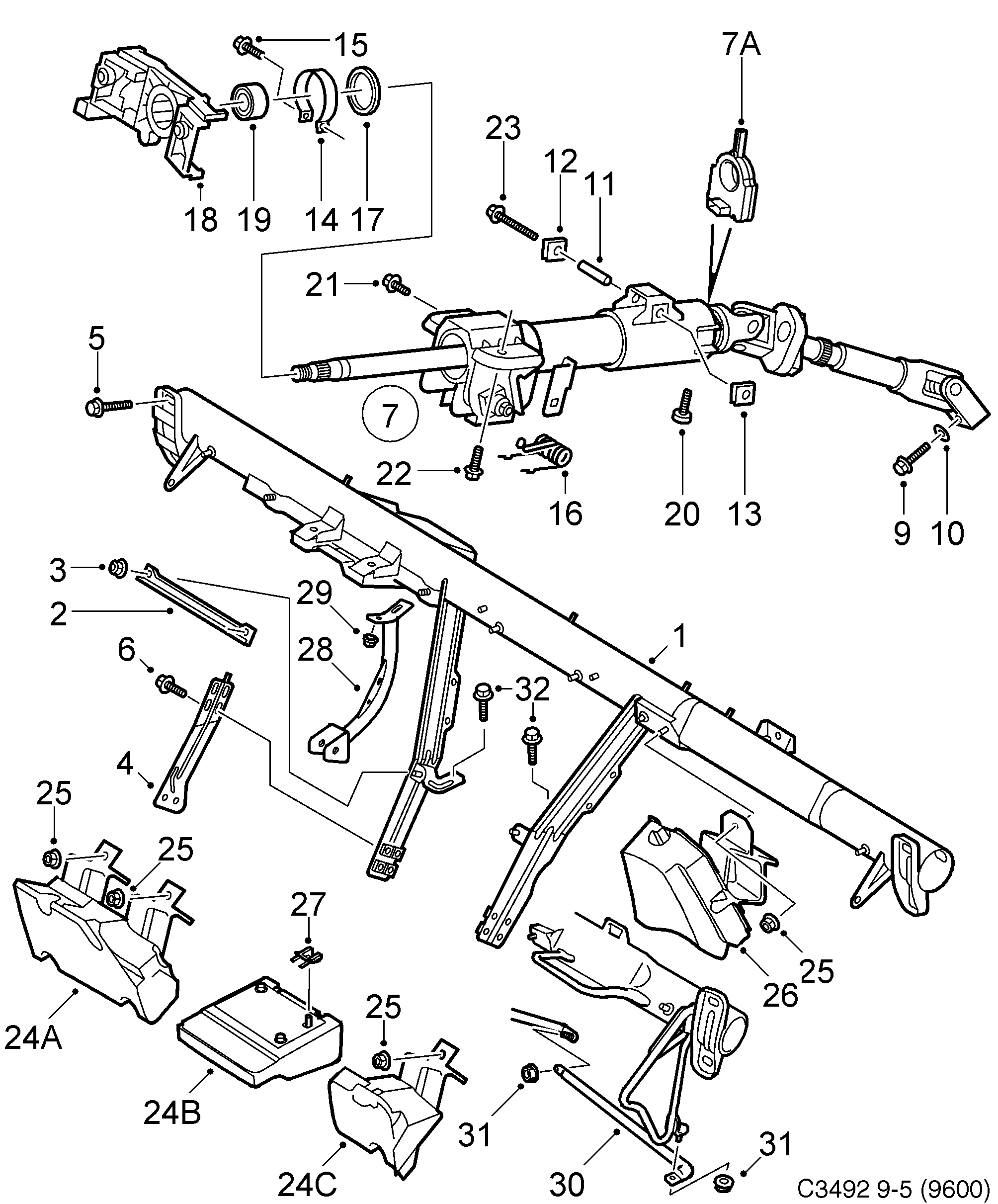

Group 6 Front wheel suspension, section 160
| Pos | Article | Part No. |
|---|---|---|
| 1 | Steering wheel member | 5552492 (replaces 4848271) |
| 1 | Steering wheel member | 5552492 (replaces 5200779) |
| 1 | Steering wheel member | 5552492 |
| 1 | Instrument member | 12758404 |
| 1 | Steering wheel member | 5206560 (replaces 4717575) |
| 1 | Steering wheel member | 5206560 |
| 1 | Instrument member | 12758405 |
| 2 | Cross stay | 4718854 |
| 3 | Nut | 11900451 (replaces 7977929) |
| 3 | Nut | 92153044 (replaces 7974298) |
| 4 | Support | 5204649 (replaces 5012745) |
| 4 | Support | 5204649 |
| 4 | Support | 5012752 |
| 5 | Screw | 92152142 (replaces 7975212) |
| 5 | Screw | 92150996 |
| 6 | Screw | 92153212 (replaces 7972623) |
| 6 | Screw | 92153212 |
| 7 | Steering column | 5209507 (replaces 4848438) |
| 7 | Steering column | 5209507 |
| 7 | Steering column | 5209465 (replaces 5200969) |
| 7 | Steering column | 5209465 |
| 7 | Steering column | 5208335 |
| 7 | Steering column | 5209473 (replaces 5201694) |
| 7 | Steering column | 5209473 |
| 7 | Steering column | 5208343 |
| 7 | Steering column | 5209481 (replaces 4848446) |
| 7 | Steering column | 5209481 (replaces 5014303) |
| 7 | Steering column | 5209481 |
| 7 | Steering column | 5209499 (replaces 5202130) |
| 7 | Steering column | 5209499 |
| 7A | Sensor | 5235783 |
| 9 | Hexagon screw | 7985898 |
| 10 | Washer | 55564926 (replaces 8073249) |
| 10 | Washer | 92153033 (replaces 8029985) |
| 11 | Sleeve | 4846721 |
| 12 | Bushing | 4846804 |
| 13 | Bushing | 4846713 |
| 14 | Clamp | 4846754 |
| 15 | Screw | 8097883 |
| 16 | Spring | 5010467 |
| 17 | Lock ring | 5016779 (replaces 5010194) |
| 18 | Bearing housing | 4846747 |
| 19 | Bushing | 4847349 |
| 20 | Hexagon screw | 4847372 |
| 21 | Screw | 5172812 (replaces 4940656) |
| 21 | Screw | 5172812 |
| 22 | Screw | 55566034 (replaces 7978190) |
| 23 | Screw | 11900373 (replaces 7982119) |
| 23 | Hexagon screw | 11900373 |
| 24A | Knee pad | 4684155 |
| 24A | Knee pad | 5200803 |
| 24B | Knee pad | 5201967 |
| 24C | Knee pad | 5200852 |
| 24A | Knee pad | 4684197 |
| 25 | Hexagon nut | 11900452 (replaces 7977952) |
| 25 | Nut | 90191908 (replaces 4345419) |
| 25 | Nut | 90191908 |
| 26 | Knee pad | 4704011 |
| 26 | Knee pad | 5203823 |
| 27 | Clip | 12780365 (replaces 8252553) |
| 28 | Pedal stop | 5204599 |
| 28 | Pedal stop | 5390661 |
| 30 | Stanchion | 4848628 |
| 32 | Screw | 12781156 |
