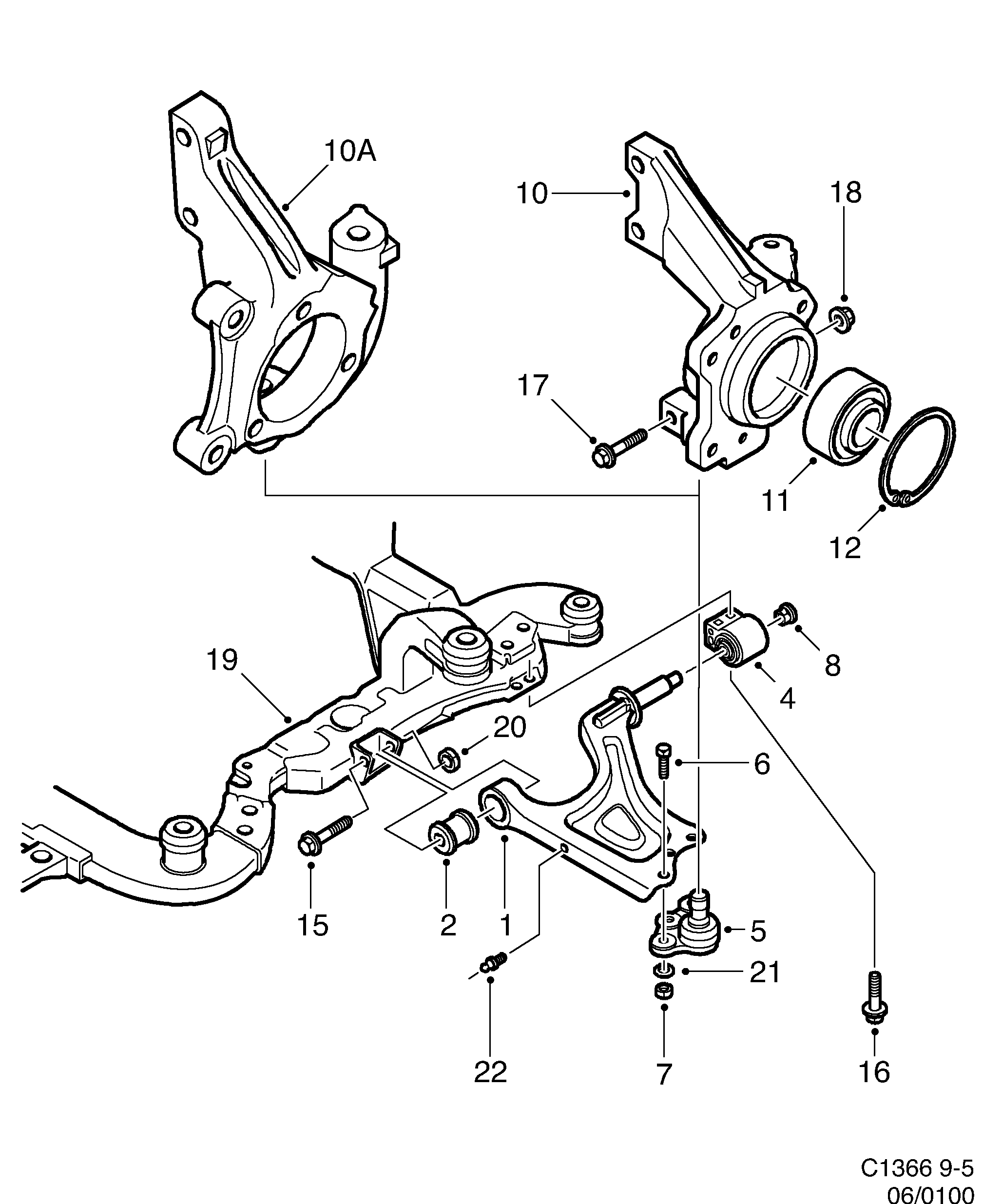

Group 6 Front wheel suspension, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Arm | 93185279 |
| 1 | Arm | 5236674 |
| 4 | Bushing | 5233374 |
| 5 | End piece | 93185278 |
| 6 | Screw | 5125802 |
| 7 | Nut | 4348512 |
| 8 | Nut | 7987456 |
| 21 | Washer | 4685129 |
| 1 | Arm | 93185280 |
| 1 | Arm | 5236682 |
| 1 | Link arm | 5236641 |
| 1 | Link arm | 5236658 |
| 2 | Bushing | 4566899 |
| 4 | Bushing | 5063391 (replaces 4908109) |
| 4 | Bushing | 5063391 |
| 5 | End piece | 5231683 (replaces 4835740) |
| 5 | End piece | 5231683 |
| 5 | End piece | 5237516 |
| 6 | Screw | 4348330 |
| 7 | Nut | 4348355 |
| 8 | Nut | 92153201 (replaces 7979552) |
| 10 | Steering knuckle housing | 90490135 (replaces 4569638) |
| 10 | Steering knuckle housing | 90490136 |
| 10A | Steering knuckle housing | 12762375 (replaces 5233689) |
| 10A | Steering knuckle housing | 12762376 (replaces 5233697) |
| 10A | Steering knuckle housing | 12762375 |
| 10A | Steering knuckle housing | 12762376 |
| 11 | Angular contact ball brg. | 4689923 |
| 12 | Snap ring | 4345450 |
| 15 | Screw | 7984933 |
| 15 | Screw | 11100011 (replaces 4685996) |
| 15 | Screw | 4348843 |
| 15 | Hexagon screw | 11100011 |
| 16 | Screw | 7985856 |
| 16 | Flange screw | 13198720 (replaces 5238712) |
| 16 | Flange screw | 13198720 |
| 17 | Screw | 4940219 |
| 17 | Screw | 5125745 |
| 17 | Hexagon screw | 24461287 |
| 18 | Nut | 4348009 |
| 18 | Nut | 90576769 |
| 20 | Nut | 11094488 (replaces 4348835) |
| 22 | Pivot | 5287073 |
