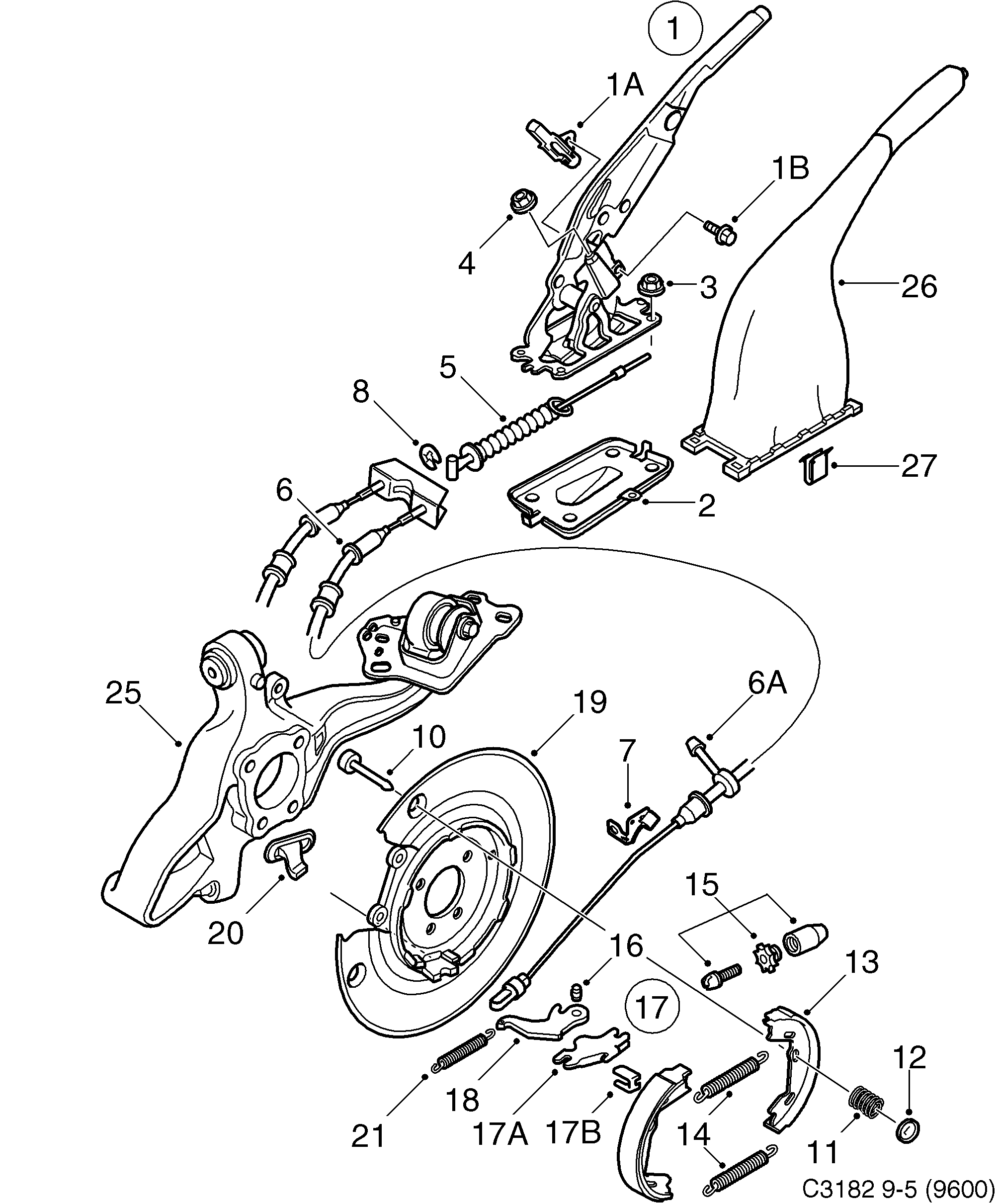

Group 5 Brakes, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Parking brake lever | 5055397 |
| 1A | Switch | 4247698 |
| 1B | Screw | 4346276 |
| 2 | Cover plate | 4567343 |
| 1 | Parking brake lever | 12844163 (replaces 4908125) |
| 1 | Parking brake lever | 12844163 |
| 3 | Nut | 11900451 (replaces 7977929) |
| 3 | Nut | 92151925 |
| 4 | Nut | 92153044 (replaces 7974298) |
| 5 | Parking brake cable | 4905980 |
| 6 | Parking brake cable | 4908356 |
| 6 | Parking brake cable | 5059829 |
| 8 | Retaining ring | 8123531 |
| 7 | Bracket | 4835781 |
| 7 | Bracket | 90575472 |
| 7 | Bracket | 4835799 |
| 7 | Bracket | 90575473 |
| 10 | Locking pin | 90279209 (replaces 4400198) |
| 11 | Compression spring | 6681527 (replaces 4400206) |
| 12 | Lock plate | 6663706 (replaces 4400214) |
| 13 | Brake shoe kit | 4836441 |
| 14 | Spring | 90079327 (replaces 4400263) |
| 15 | Adjusting kit | 8993941 |
| 16 | Pin | 90075839 (replaces 4400248) |
| 17 | Shackle | 90496947 (replaces 4646832) |
| 17A | Shackle | 90496947 (replaces 4400313) |
| 17B | Clip | 4836342 |
| 18 | Lever | 90495017 (replaces 4836367) |
| 19 | Attaching plate | 90496440 |
| 19 | Attaching plate | 90496441 (replaces 4836383) |
| 19 | Attaching plate | 90496441 |
| 19 | Attaching plate | 90490768 (replaces 5390042) |
| 19 | Attaching plate | 90490769 (replaces 5390059) |
| 20 | Dust seal | 90495967 (replaces 4836359) |
| 21 | Return spring | 12783879 (replaces 4241345) |
| 21 | Tension spring | 12783879 |
| 26 | Boot | 4816120 |
| 26 | Boot | 4816138 |
| 27 | Clip | 8578262 |
| 27 | Clip | 5125687 |
| 27 | Clip | 12783805 (replaces 5337621) |
| 27 | Clip | 12783805 |
