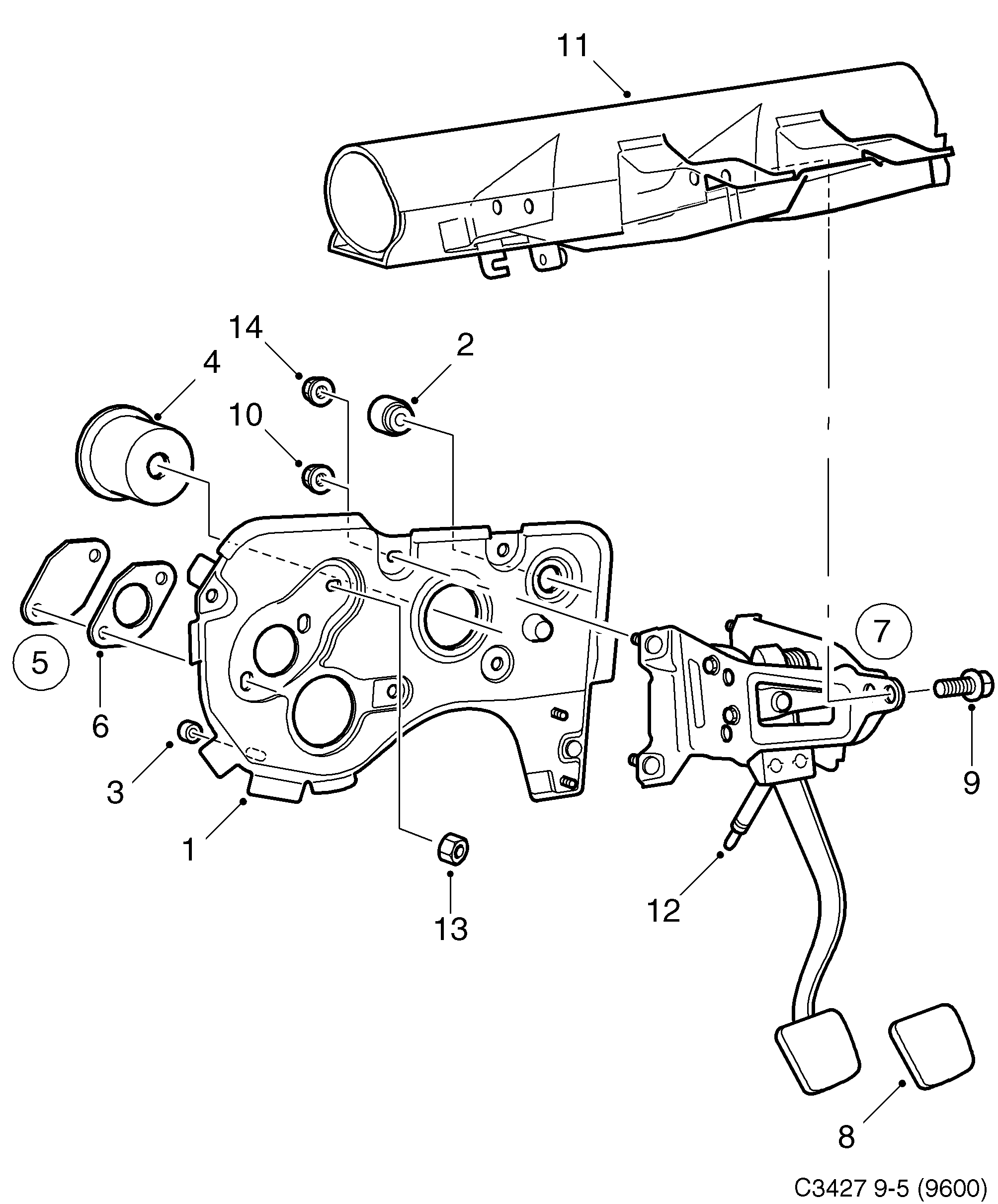

Group 5 Brakes, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cowl plate | 90505059 (replaces 4565495) |
| 1 | Cowl plate | 90505059 |
| 1 | Cowl plate | 90505058 (replaces 4565503) |
| 2 | Grommet | 90156374 |
| 2 | Plug | 8575599 |
| 3 | Seal | 4345724 |
| 4 | Seal | 4835187 |
| 4 | Seal | 4835195 |
| 5 | Cover | 90497326 (replaces 4567889) |
| 5 | Cover | 90497326 |
| 6 | Seal | 4688842 |
| 7 | Bracket | 90539487 (replaces 4689360) |
| 7 | Bracket | 90539487 |
| 7 | Bracket | 90539488 (replaces 4689352) |
| 7 | Bracket | 90539488 |
| 7 | Bracket | 90498514 (replaces 4687612) |
| 7 | Bracket | 90498514 |
| 7 | Bracket | 90498515 (replaces 4687620) |
| 7 | Bracket | 90498515 |
| 8 | Pedal pad | 90468789 (replaces 4688586) |
| 8 | Pedal pad | 90468789 (replaces 90222351) |
| 8 | Pedal pad | 4688594 |
| 8 | Pedal pad | 4688594 (replaces 4244612) |
| 12 | Piston rod | 90468840 |
| 12 | Piston rod | 4688859 |
| Insulating disc | 90184910 | |
| 9 | Screw | 55566034 (replaces 7978190) |
| 9 | Screw | 11900365 |
| 10 | Nut | 90191908 (replaces 4345419) |
| 13 | Nut | 92153045 |
| 14 | Nut | 90191908 |
