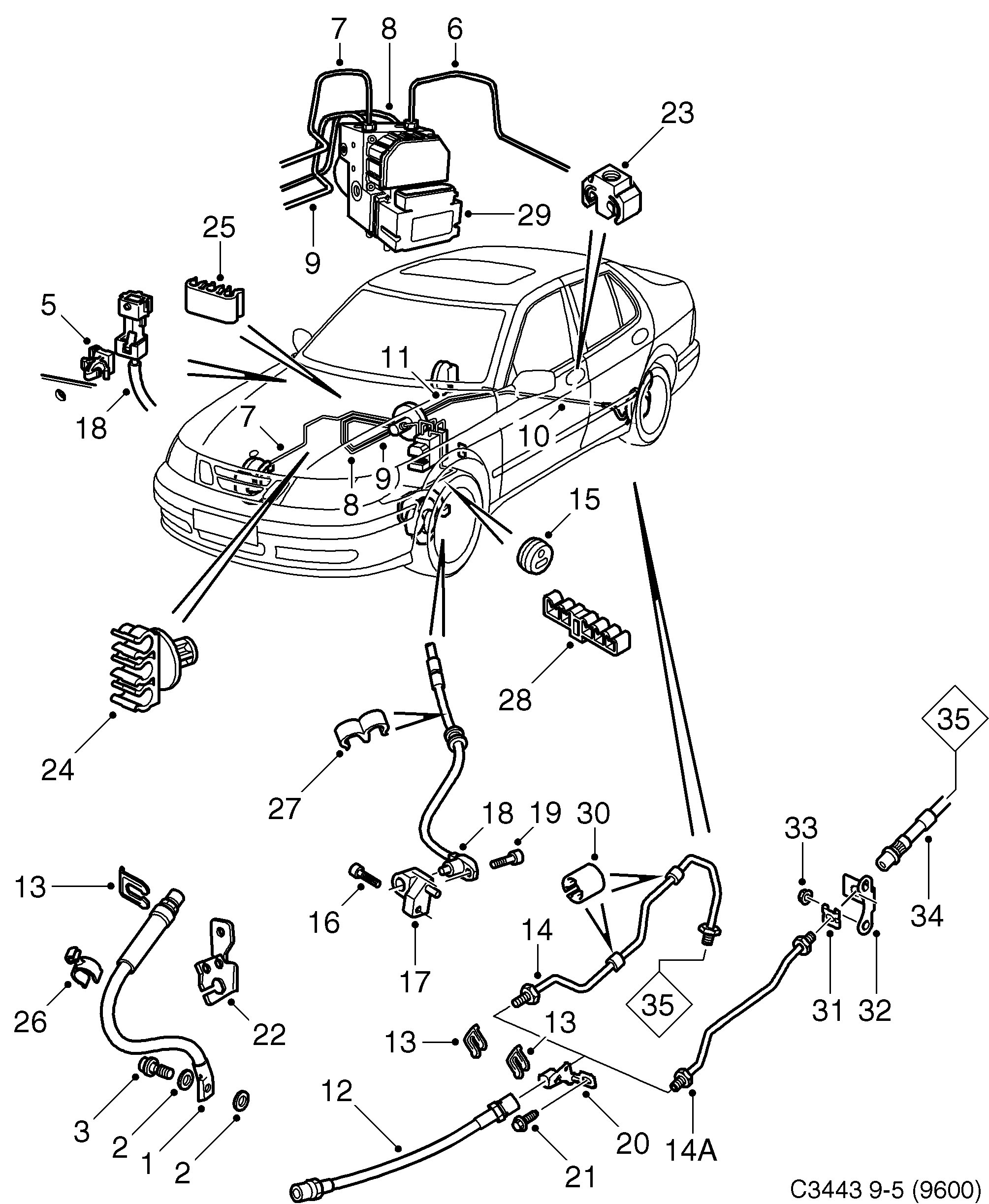

Group 5 Brakes, section 220
| Pos | Article | Part No. |
|---|---|---|
| 1 | Brake hose | 90539843 (replaces 4565743) |
| 1 | Brake hose | 90539843 |
| 2 | Sealing ring | 4345609 |
| 2 | Sealing ring | 24444010 |
| 3 | Banjo screw | 4345591 |
| 3 | Banjo screw | 13112908 |
| 5 | Clip | 4176095 |
| 6 | Brake pipe | 5060728 (replaces 4565891) |
| 6 | Brake pipe | 5060728 |
| 7 | Brake pipe | 4565909 |
| 8 | Brake pipe | 4906178 |
| 9 | Brake pipe | 4906186 |
| 10 | Brake pipe | 4689105 |
| 10 | Brake pipe | 5391347 |
| 10 | Brake pipe | 12770703 (replaces 12758819) |
| 10 | Brake line | 12770703 |
| Brake pipe | 4689089 | |
| Brake pipe | 5391412 | |
| Brake pipe | 4689097 | |
| Brake pipe | 5391420 | |
| 11 | Brake pipe | 4906202 |
| 11 | Brake pipe | 5232947 |
| 11 | Brake pipe | 12770702 (replaces 5533880) |
| 11 | Brake pipe | 12770702 (replaces 12758820) |
| 11 | Brake line | 12770702 |
| 12 | Brake hose | 90445758 (replaces 4565719) |
| 12 | Brake hose | 90445758 |
| 13 | Hose retainer | 90539036 (replaces 4649844) |
| 13 | Hose retainer | 90539036 |
| 13 | Clamping spring | 90498320 |
| 14 | Brake pipe | 4907630 |
| 14 | Brake pipe | 4907648 |
| 14A | Brake pipe | 12770693 (replaces 4908877) |
| 14A | Brake line | 12770693 |
| 14A | Brake pipe | 12770694 (replaces 4908885) |
| 14A | Brake line | 12770694 |
| 15 | Grommet | 4399358 |
| 15 | Grommet | 5390711 |
| 16 | Screw | 92150005 |
| 16 | Screw | 11900357 |
| 17 | Bracket | 4909099 |
| 17 | Bracket | 4909107 |
| 18 | Wheel speed sensor | 4909966 |
| 18 | Wheel speed sensor | 5390752 |
| 20 | Bracket | 4835781 |
| 20 | Bracket | 4835799 |
| 21 | Screw | 11900355 (replaces 7978117) |
| 22 | Bracket | 4568119 |
| 22 | Bracket | 5234935 |
| 22 | Bracket | 4568127 |
| 22 | Bracket | 5234943 |
| 23 | Clamp | 4835005 |
| 23 | Clamp | 4906657 (replaces 4402426) |
| 24 | Clamp | 5323811 |
| 24 | Tube clamp | 13152368 |
| 24 | Clip | 90168790 |
| 25 | Tube clamp | 4838512 |
| 26 | Clamp | 4836805 |
| 26 | Clip | 90306635 |
| 27 | Tube clamp | 12793419 (replaces 9106139) |
| 27 | Clamp | 12793419 |
| 27 | Clamp | 92152129 |
| 30 | Tube clamp | 8965097 |
| 31 | Clamping spring | 90498320 (replaces 5058193) |
| 32 | Bracket | 5056593 |
| 33 | Flange lock nut | 90538869 (replaces 4345153) |
| 33 | Hexagon nut | 90538869 |
| 33 | Hexagon nut | 12783369 |
| 34 | Brake hose | 4908695 |
