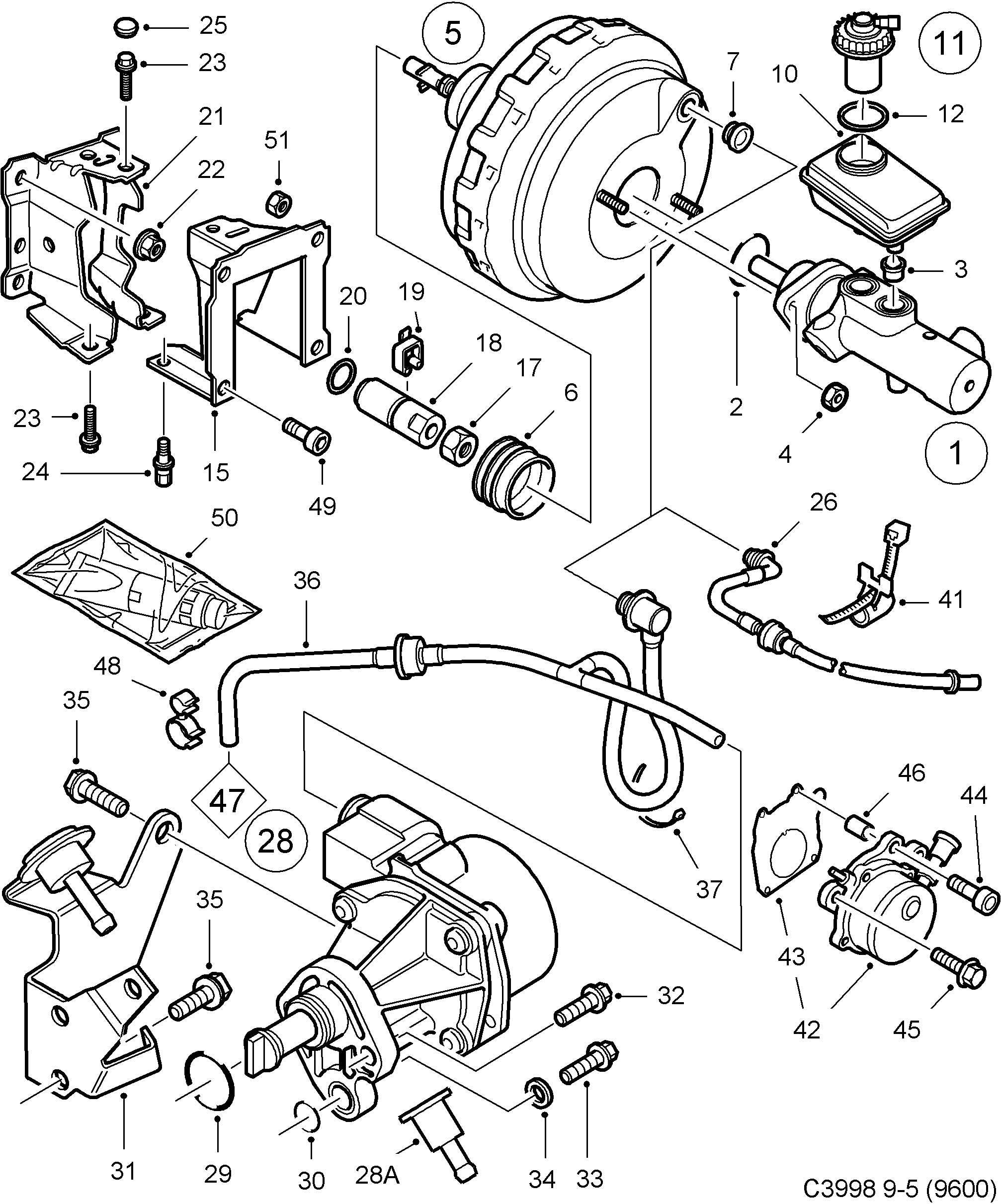

Group 5 Brakes, section 200
| Pos | Article | Part No. |
|---|---|---|
| 1 | Master cylinder | 4836698 |
| 1 | Master cylinder | 5390869 |
| 1 | Master cylinder | 12761907 |
| 1 | Master cylinder | 4836706 |
| 1 | Master cylinder | 5338074 (replaces 5390877) |
| 1 | Master cylinder | 5338074 |
| 2 | Seal | 2894223 (replaces 4836755) |
| 2 | Seal | 5392634 |
| 3 | Plug | 4836730 |
| 4 | Nut | 4836748 |
| 5 | Brake servo | 4836656 |
| 5 | Brake servo | 5390844 |
| 5 | Brake servo | 4836664 |
| 5 | Brake servo | 5390851 |
| 6 | Bellows | 4836672 |
| 6 | Bellows | 5392584 |
| 7 | Grommet | 4836680 |
| 10 | Reservoir | 3495551 (replaces 4836771) |
| 10 | Reservoir | 3495551 |
| 10 | Reservoir | 3495552 (replaces 4836789) |
| 10 | Reservoir | 3495552 |
| 11 | Cover | 3495503 (replaces 4836763) |
| 11 | Cover | 3495503 |
| 11 | Cover | 5061411 (replaces 4836847) |
| 11 | Cover | 5061411 |
| 14 | Nut | 92150143 (replaces 7971922) |
| 15 | Bracket | 4567012 |
| 15 | Bracket | 90496991 |
| 15 | Bracket | 90496987 (replaces 4567038) |
| 15 | Bracket | 90496987 |
| 17 | Hexagon nut | 4345120 |
| 17 | Hexagon nut | 11040944 |
| 18 | Adjusting nut | 90498145 (replaces 4567855) |
| 18 | Adjusting nut | 90498145 |
| 18 | Adjusting nut | 4567863 |
| 18 | Adjusting nut | 90468773 |
| 19 | Return spring | 90184913 (replaces 4244307) |
| 20 | O-ring | 4568580 |
| 20 | O-ring | 90497286 |
| 21 | Bracket | 90496989 (replaces 4567020) |
| 21 | Bracket | 90496989 |
| 21 | Bracket | 4567046 |
| 21 | Side panel | 90496986 |
| 22 | Nut | 90191908 (replaces 4345419) |
| 22 | Nut | 90191908 |
| 23 | Screw | 55566034 (replaces 7978190) |
| 24 | Screw | 7978232 |
| 25 | Plug | 4689626 |
| 25 | Lock plug | 90497185 |
| 26 | Vacuum pipe | 4688180 |
| 26 | Vacuum pipe | 5230495 |
| 26 | Vacuum pipe | 4688206 |
| 26 | Vacuum pipe | 4688198 |
| 26 | Vacuum pipe | 5230503 |
| 26 | Vacuum pipe | 4688214 |
| 26 | Vacuum pipe | 5231139 |
| 26 | Vacuum pipe | 5534482 |
| 26 | Vacuum pipe | 5231147 |
| 26 | Vacuum pipe | 5390737 |
| 26 | Vacuum pipe | 5534581 |
| 26 | Pipe | 12757140 |
| 26 | Vacuum pipe | 5390745 |
| 26 | Vacuum pipe | 5531454 |
| 26 | Pipe | 12757141 |
| 28 | Vacuum pump | 55558434 (replaces 9180191) |
| 28 | Vacuum pump | 55558434 |
| 28 | Vacuum pump | 55562074 |
| 28A | Nipple | 55557389 (replaces 9179318) |
| 29 | Sealing ring | 9176470 |
| 30 | Sealing ring | 4685798 |
| 31 | Brace | 55558435 (replaces 9182502) |
| 31 | Brace | 55558435 |
| 32 | Screw | 7973779 |
| 32 | Screw | 55561610 (replaces 12755031) |
| 32 | Screw | 55561610 |
| 33 | Banjo bolt | 4685558 |
| 33 | Hollow screw | 55558837 |
| 34 | Seal | 8326704 |
| 34 | Gasket | 5959242 |
| 35 | Screw | 92150012 (replaces 7978182) |
| 36 | Vacuum pipe | 5331095 (replaces 5061999) |
| 36 | Vacuum pipe | 5331095 |
| 36 | Vacuum pipe | 5331103 (replaces 5056833) |
| 36 | Vacuum pipe | 5331103 |
| 37 | Tie strap | 11900513 (replaces 92150191) |
| 41 | Tie strap | 4807939 |
| 42 | Vacuum pump | 5952957 |
| 42 | Vacuum pump | 55205446 (replaces 93179221) |
| 42 | Vacuum pump | 55205446 (replaces 93190766) |
| 43 | Seal | 93179222 |
| 44 | Screw | 5951561 |
| 45 | Screw | 5952965 |
| 46 | Guide sleeve | 5950332 |
| 48 | Clamp | 92152223 |
| 49 | Screw | 11900365 |
| 50 | Wetting agent | 90540018 |
| 51 | Nut | 92153045 |
