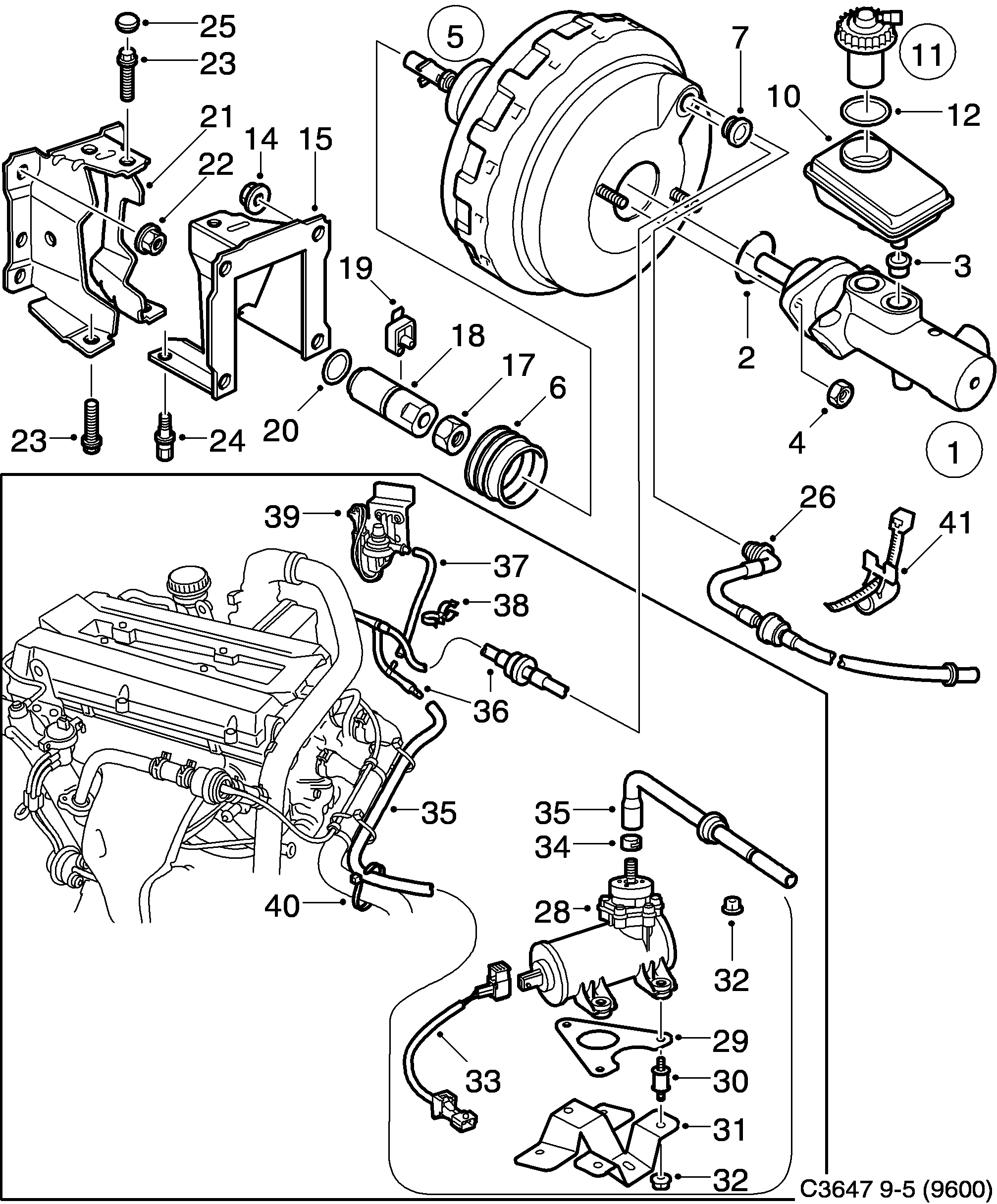

Group 5 Brakes, section 190
| Pos | Article | Part No. |
|---|---|---|
| 1 | Master cylinder | 4836698 |
| 1 | Master cylinder | 4836706 |
| 2 | Seal | 2894223 (replaces 4836755) |
| 3 | Plug | 4836730 |
| 4 | Nut | 4836748 |
| 5 | Brake servo | 4836656 |
| 5 | Brake servo | 4836664 |
| 6 | Bellows | 4836672 |
| 7 | Grommet | 4836680 |
| 10 | Reservoir | 3495551 (replaces 4836771) |
| 10 | Reservoir | 3495552 (replaces 4836789) |
| 11 | Cover | 3495503 (replaces 4836763) |
| 11 | Cover | 5061411 (replaces 4836847) |
| 11 | Cover | 5061411 |
| 14 | Nut | 92150143 (replaces 7971922) |
| 15 | Bracket | 4567012 |
| 15 | Bracket | 90496987 (replaces 4567038) |
| 17 | Hexagon nut | 4345120 |
| 18 | Adjusting nut | 90498145 (replaces 4567855) |
| 18 | Adjusting nut | 4567863 |
| 19 | Return spring | 90184913 (replaces 4244307) |
| 20 | O-ring | 4568580 |
| 21 | Bracket | 90496989 (replaces 4567020) |
| 21 | Bracket | 4567046 |
| 22 | Nut | 90191908 (replaces 4345419) |
| 23 | Screw | 55566034 (replaces 7978190) |
| 24 | Screw | 7978232 |
| 25 | Plug | 4689626 |
| 26 | Vacuum pipe | 4688180 |
| 26 | Vacuum pipe | 4688206 |
| 26 | Vacuum pipe | 4688198 |
| 26 | Vacuum pipe | 4688214 |
| 28 | Vacuum pump | 4646220 |
| 29 | Washer | 4908075 |
| 30 | Vibration damper | 4839403 |
| 31 | Bracket | 4839395 |
| 32 | Nut | 11900451 (replaces 7977929) |
| 34 | Hose clamp | 7974009 |
| 35 | Vaccum connection | 5333208 (replaces 4905485) |
| 35 | Vaccum connection | 5333208 |
| 36 | Vacuum pipe | 4839387 |
| 36 | Vacuum pipe | 4908265 |
| 37 | Vaccum hose | 9136243 |
| 37 | Vaccum hose | 9135542 |
| 38 | Clip | 5056536 |
| 40 | Clamp | 7399652 |
| 41 | Tie strap | 4063681 |
