Saab 9-5 (9600) 1998-2001 Hydraulic unit ABS

Group 5 Brakes, section 160

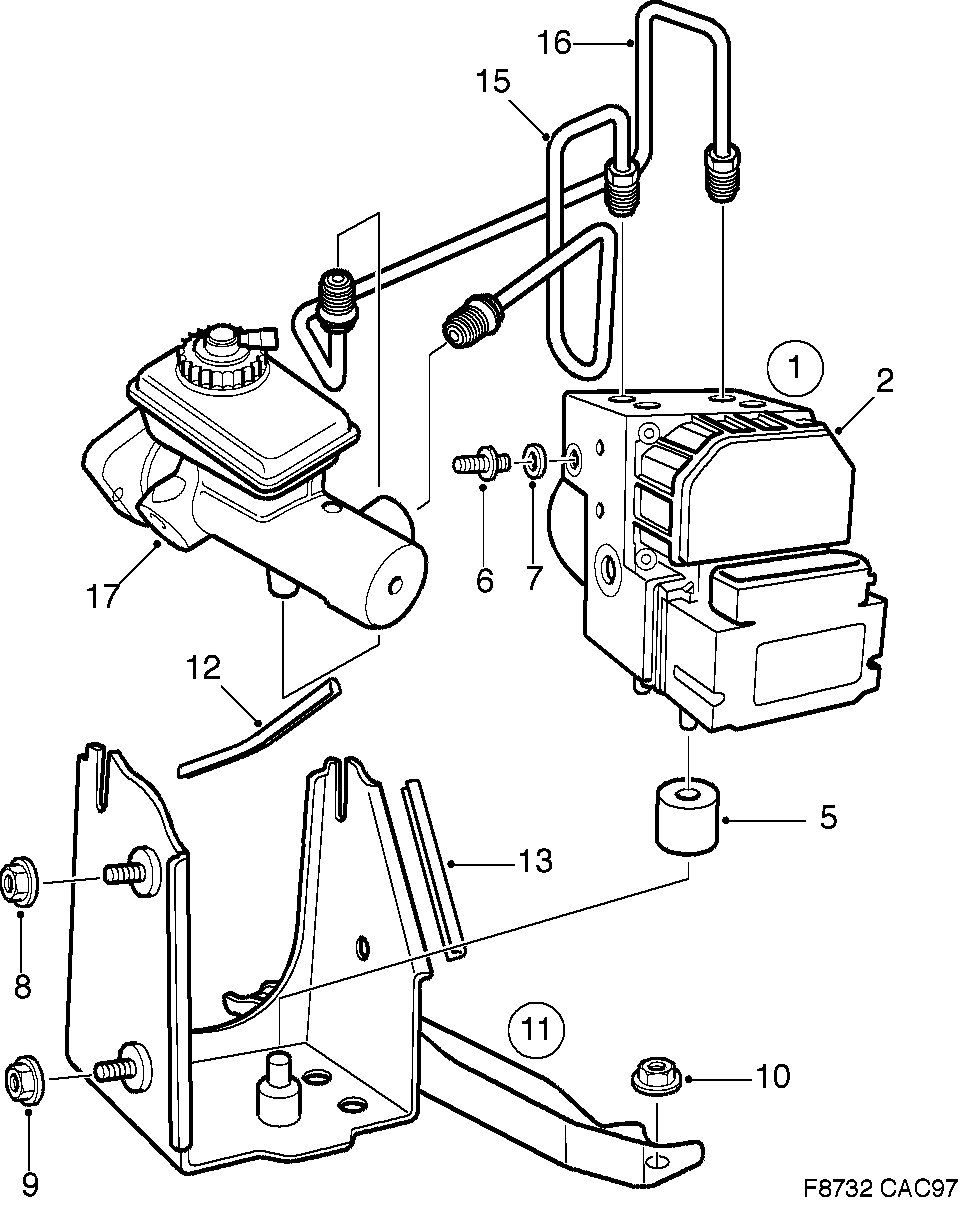

Saab 9-5 (9600) Hydraulic unit ABS diagram

Pos	Article	Part No.
1	Hydraulic unit	5390091 (replaces 4779500)
1	Hydraulic unit	5061064
1	Hydraulic unit	5233911
2	Electronic unit	4779526
2	Alarm system	32025877
2	Electronic unit	5235874
5	Support sleeve	4646675
6	Support pin	4646683
7	Absorber	4646691
8	Hexagon nut	11900452 (replaces 7977952)
9	Nut	11900451 (replaces 7977929)
10	Nut	92150143 (replaces 7971922)
11	Bracket	5064597 (replaces 4687075)
11	Bracket	5064597 (replaces 5059704)
11	Bracket	5064597 (replaces 5061858)
12	Protecting moulding	8278558
15	Brake pipe	4565875
15	Brake pipe	4565917
16	Brake pipe	4566139
16	Brake pipe	4566147
