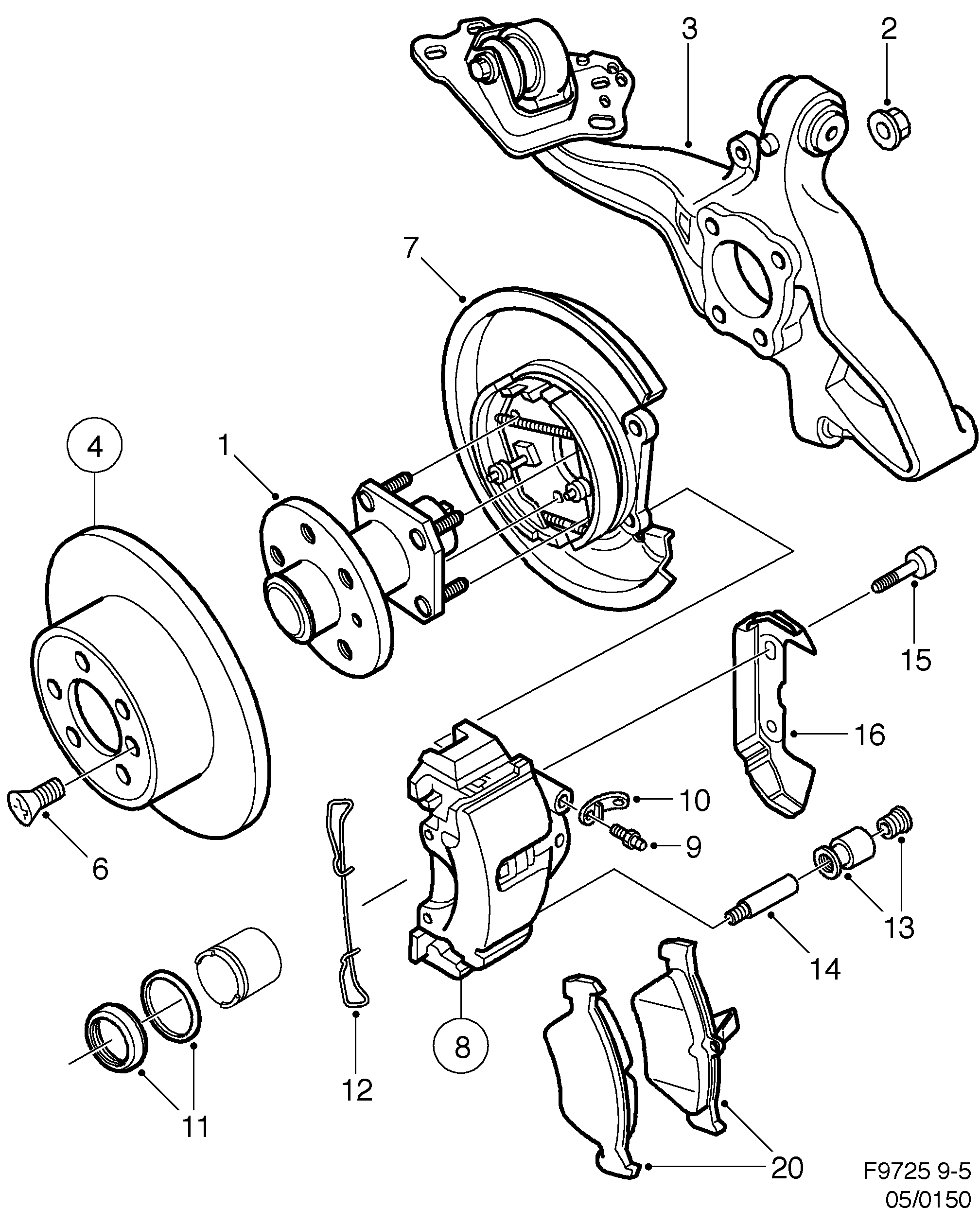

Group 5 Brakes, section 150
| Pos | Article | Part No. |
|---|---|---|
| 1 | Wheel hub | 5058185 |
| 2 | Flange lock nut | 90538869 (replaces 4345153) |
| 2 | Hexagon nut | 12783369 |
| 4 | Brake disc | 12763591 |
| 4 | Brake disc | 5391537 |
| 4 | Brake disc | 12763593 |
| 4 | Brake disc | 12763593 (replaces 5232756) |
| 6 | Screw | 8055998 |
| 6 | Screw | 7989478 |
| 8 | Brake housing | 5058136 |
| 8 | Brake housing | 5058144 |
| 8 | Brake housing | 5391834 |
| 8 | Brake housing | 5391842 |
| 9 | Bleed screw | 8955411 |
| 10 | Protecting casing | 8908576 |
| 11 | Sealing kit | 5061817 |
| 11 | Sealing kit | 5391917 |
| 12 | Spring | 5061759 |
| 13 | Sleeve | 8969107 |
| 13 | Cover | 8955478 |
| 14 | Slide pin | 90297771 (replaces 8969651) |
| 15 | Screw | 4241535 |
| 20 | Brake pad kit | 5058110 |
| 20 | Brake pad kit | 93194192 |
