Saab 9-5 (9600) 1998-1999 Rear wheel brake

Group 5 Brakes, section 130

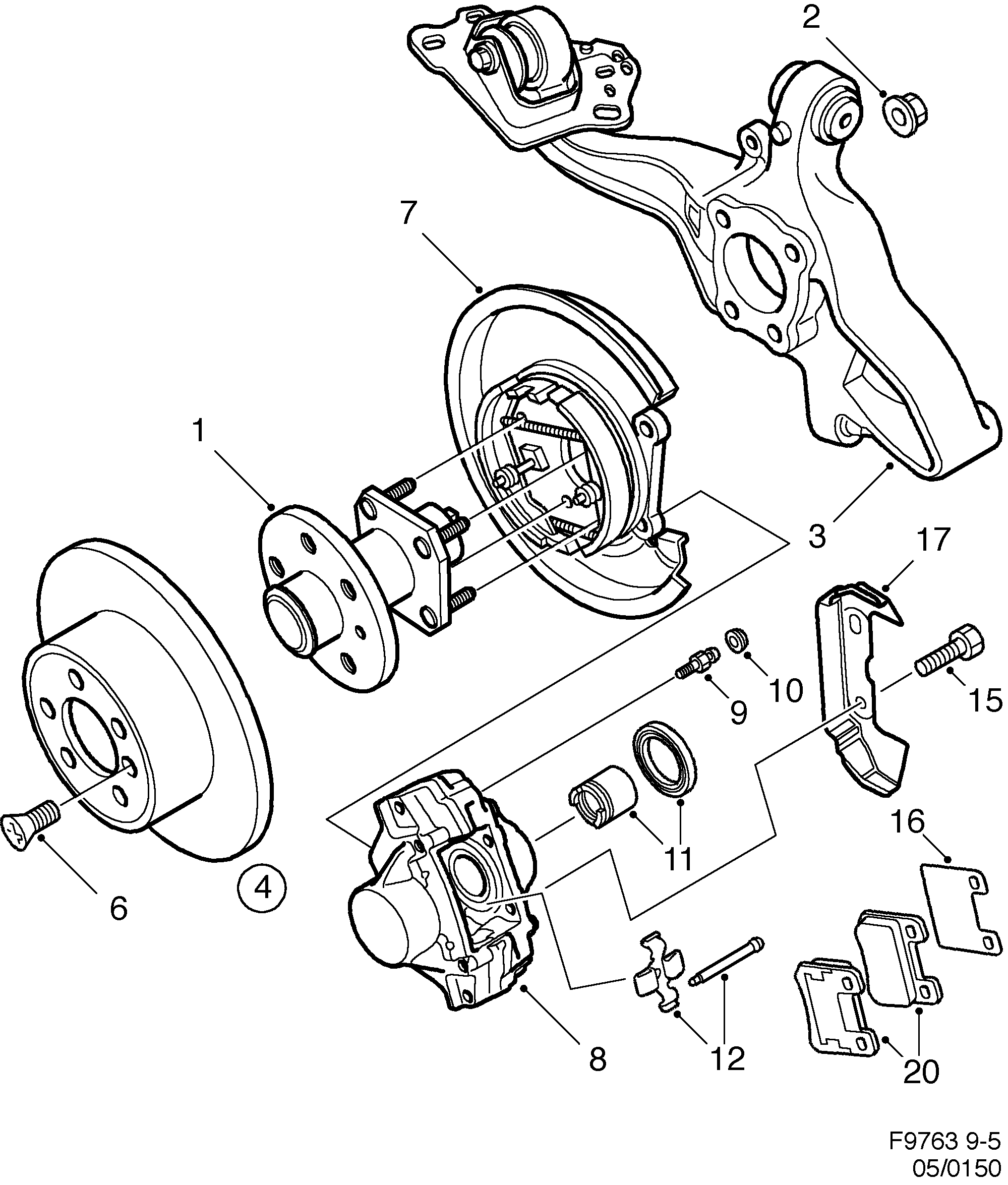

Saab 9-5 (9600) Rear wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	4839122 (replaces 4778494)
1	Wheel hub	4839122
2	Flange lock nut	90538869 (replaces 4345153)
4	Brake disc kit	5391578 (replaces 4839338)
6	Screw	8055998
8	Brake housing	4836953
8	Brake housing	4836946
9	Bleed screw	4467148
10	Protecting casing	8908576
11	Sealing kit	4836961
12	Spring kit	5239744 (replaces 4908497)
12	Spring kit	5239744
15	Screw	4241535
16	Shim	4836979
17	Cover plate	4648572
20	Brake pad kit	5057336
