Saab 9-5 (9600) 2006-2010 Front wheel brake

Group 5 Brakes, section 110

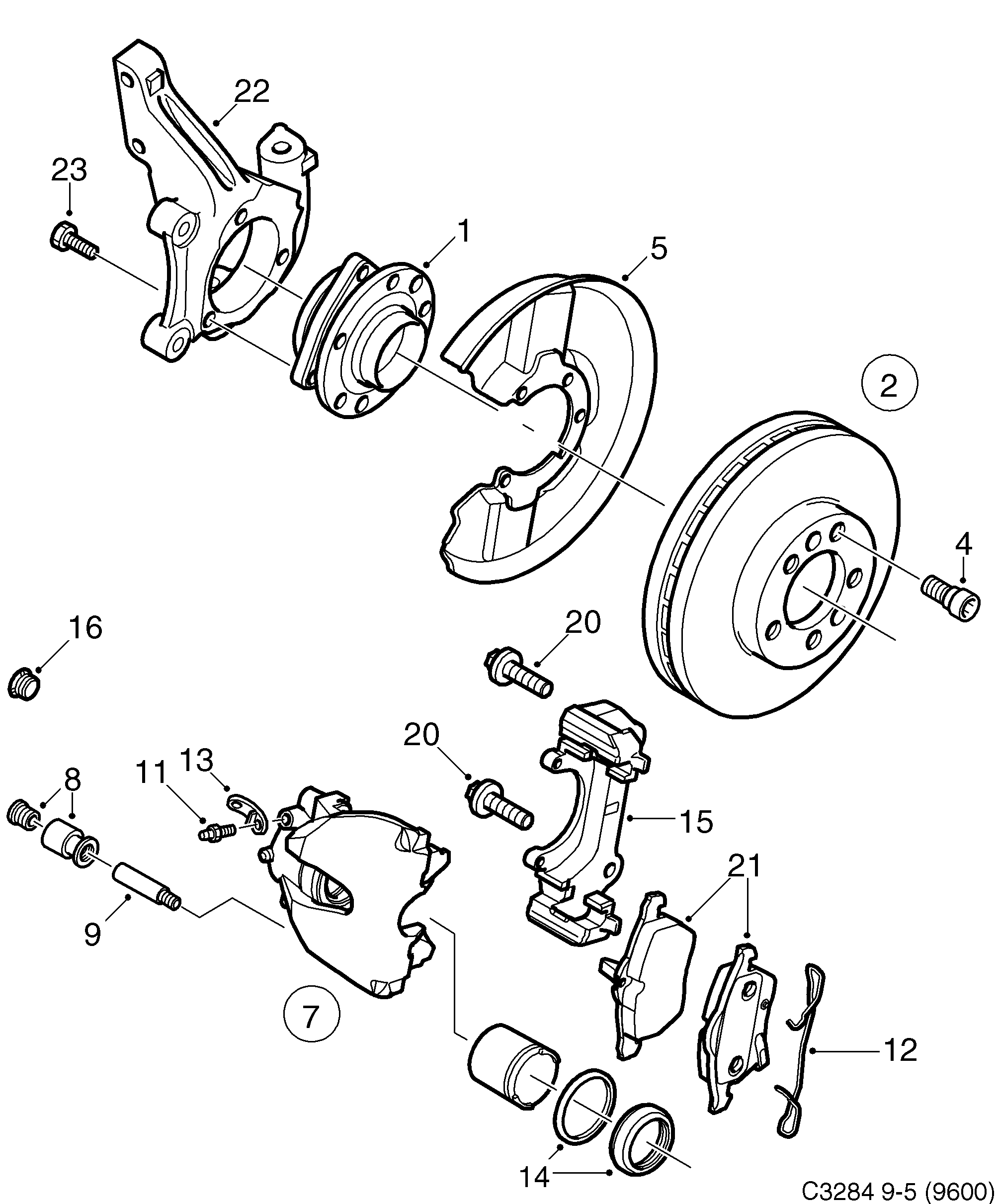

Saab 9-5 (9600) Front wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	5392493
2	Brake disc	32025723
2	Brake disc	9184405
4	Screw	90278945 (replaces 4249751)
4	Screw	90278945
5	Shield	12847526 (replaces 12841008)
5	Cover plate	12847526 (replaces 13276090)
5	Cover plate	12847526
7	Brake housing	5392014
7	Brake housing	5392022
7	Brake housing	93192746 (replaces 5391990)
7	Brake housing	93192747 (replaces 5392006)
8	Sleeve	8969107
8	Cover	8955478
9	Slide pin	90297771 (replaces 8969651)
11	Bleed screw	4467007
12	Spring	4244422
13	Protecting casing	4467015
14	Gasket kit	4778262
7	Brake housing	93192746
7	Brake housing	93192747
8	Guide	90510227
9	Guide	90297771
11	Bleeder valve	93176431
12	Retaining spring	93173733
13	Dust cap	90443869
14	Gasket kit	90540169
15	Brake Carrier	93192748
16	Cap	90575662
20	Screw	5234927
21	Brake pad kit	93192749 (replaces 5532544)
21	Brake pad kit	93192749
21	Brake pad kit	5533518
21	Brake pad kit	93192749 (replaces 5392485)
21	Brake pad kit	12759808
23	Bolt	13108188 (replaces 92152195)
