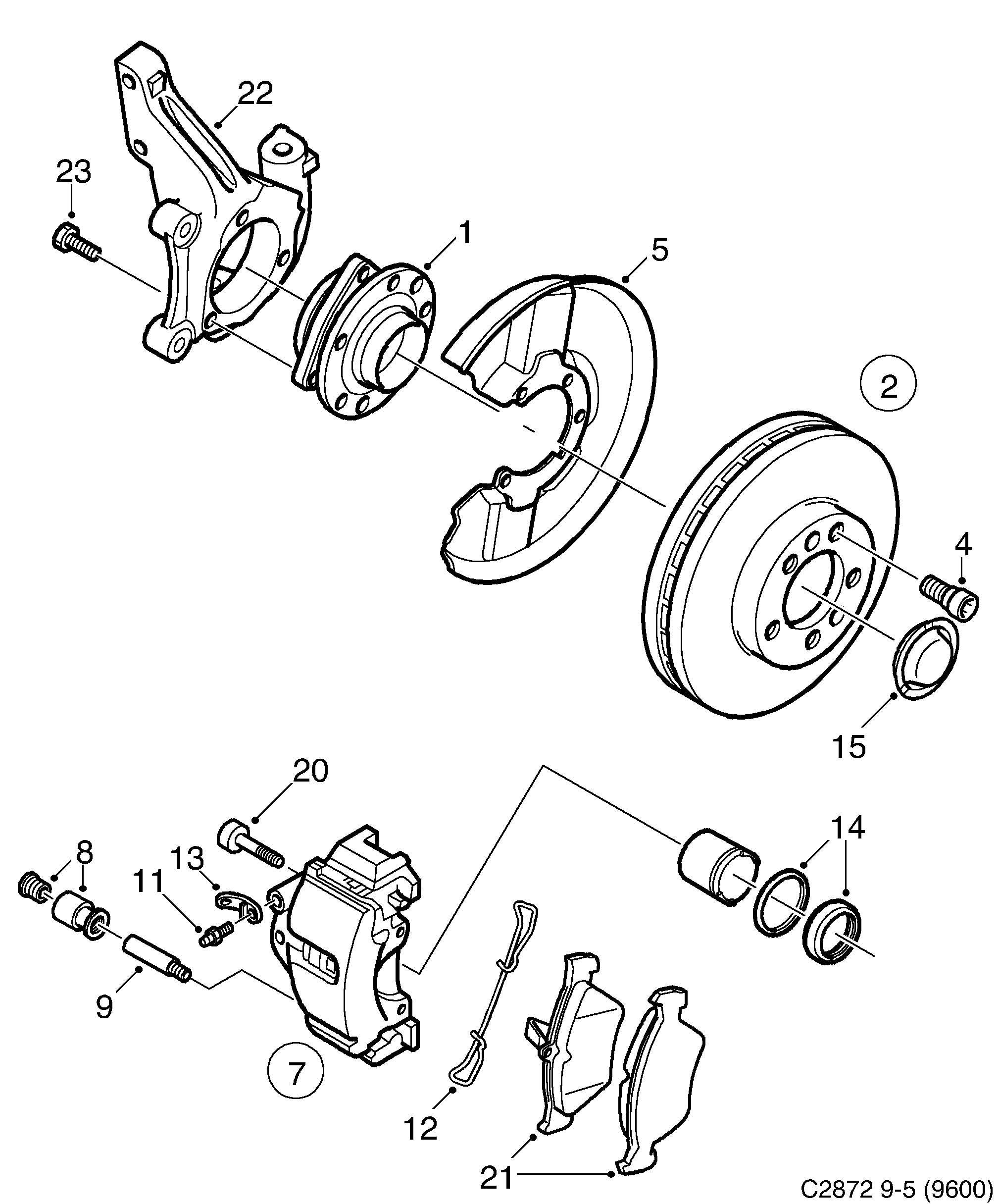

Group 5 Brakes, section 105
| Pos | Article | Part No. |
|---|---|---|
| 1 | Wheel hub | 5392493 |
| 2 | Brake disc | 32025723 (replaces 5390786) |
| 2 | Brake disc | 9184405 (replaces 5391560) |
| 4 | Screw | 90278945 (replaces 4249751) |
| 5 | Backing plate | 12847526 (replaces 12802361) |
| 5 | Shield | 12847526 (replaces 12841008) |
| 7 | Brake housing | 5392014 |
| 7 | Brake housing | 5392022 |
| 7 | Brake housing | 93192746 (replaces 5391990) |
| 7 | Brake housing | 93192747 (replaces 5392006) |
| 8 | Guide | 4467064 |
| 9 | Slide pin | 90297771 (replaces 8969651) |
| 11 | Bleed screw | 4467007 |
| 12 | Spring | 4244422 |
| 13 | Protecting casing | 4467015 |
| 14 | Gasket kit | 4778262 |
| 15 | Protective cup | 5390463 |
| 20 | Screw | 5234927 |
| 21 | Brake pad kit | 93192749 (replaces 5392485) |
| 21 | Brake pad kit | 5533518 |
| 23 | Screw | 5125570 |
