Saab 9-5 (9600) 1998-2001 Front wheel brake

Group 5 Brakes, section 100

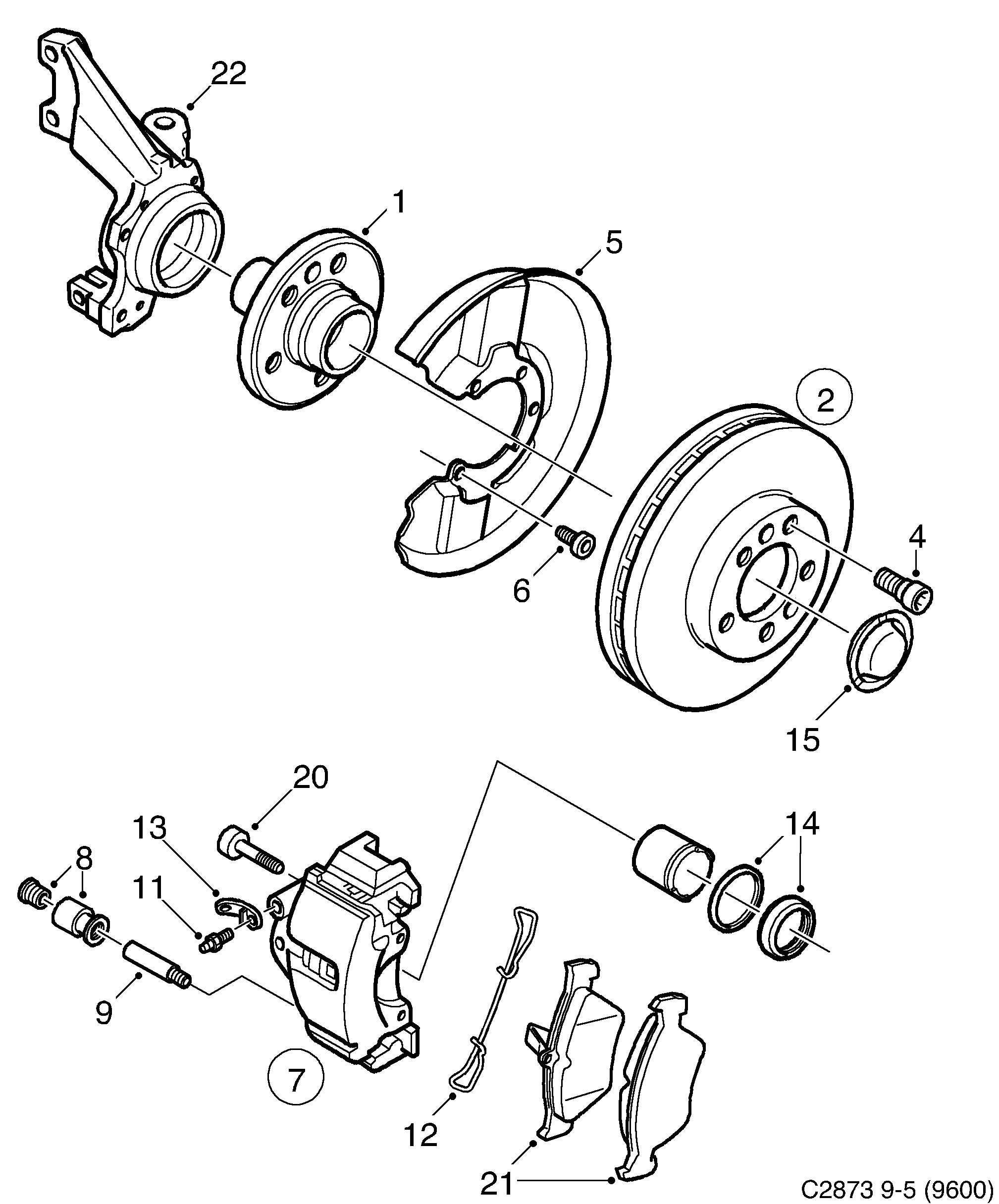

Saab 9-5 (9600) Front wheel brake diagram

Pos	Article	Part No.
1	Wheel hub	90496444
2	Brake disc	32025723 (replaces 5390786)
2	Brake disc	9184405 (replaces 5391560)
4	Screw	90278945 (replaces 4249751)
5	Backing plate	4567749
6	Screw	8059537
7	Brake housing	4838967
7	Brake housing	4838975
7	Brake housing	5055413
7	Brake housing	5055421
7	Brake housing	5230107
7	Brake housing	5230115
8	Guide	4467064
9	Slide pin	90297771 (replaces 8969651)
11	Bleed screw	4467007
12	Spring	4244422
13	Protecting casing	4467015
14	Gasket kit	4778262
15	Protective cup	5170543
20	Screw	4940904
21	Brake pad kit	5062203
21	Brake pad kit	93192749 (replaces 5532544)
21	Brake pad kit	93192749 (replaces 5055371)
21	Brake pad kit	5062203 (replaces 5232350)
21	Brake pad kit	5533518
21	Brake pad kit	93192749 (replaces 5064795)
