Saab 9-5 (9600) 2002-2010 Clutch C3 and freewheel F3 Brake B4

Group 4 Transmission, section 925

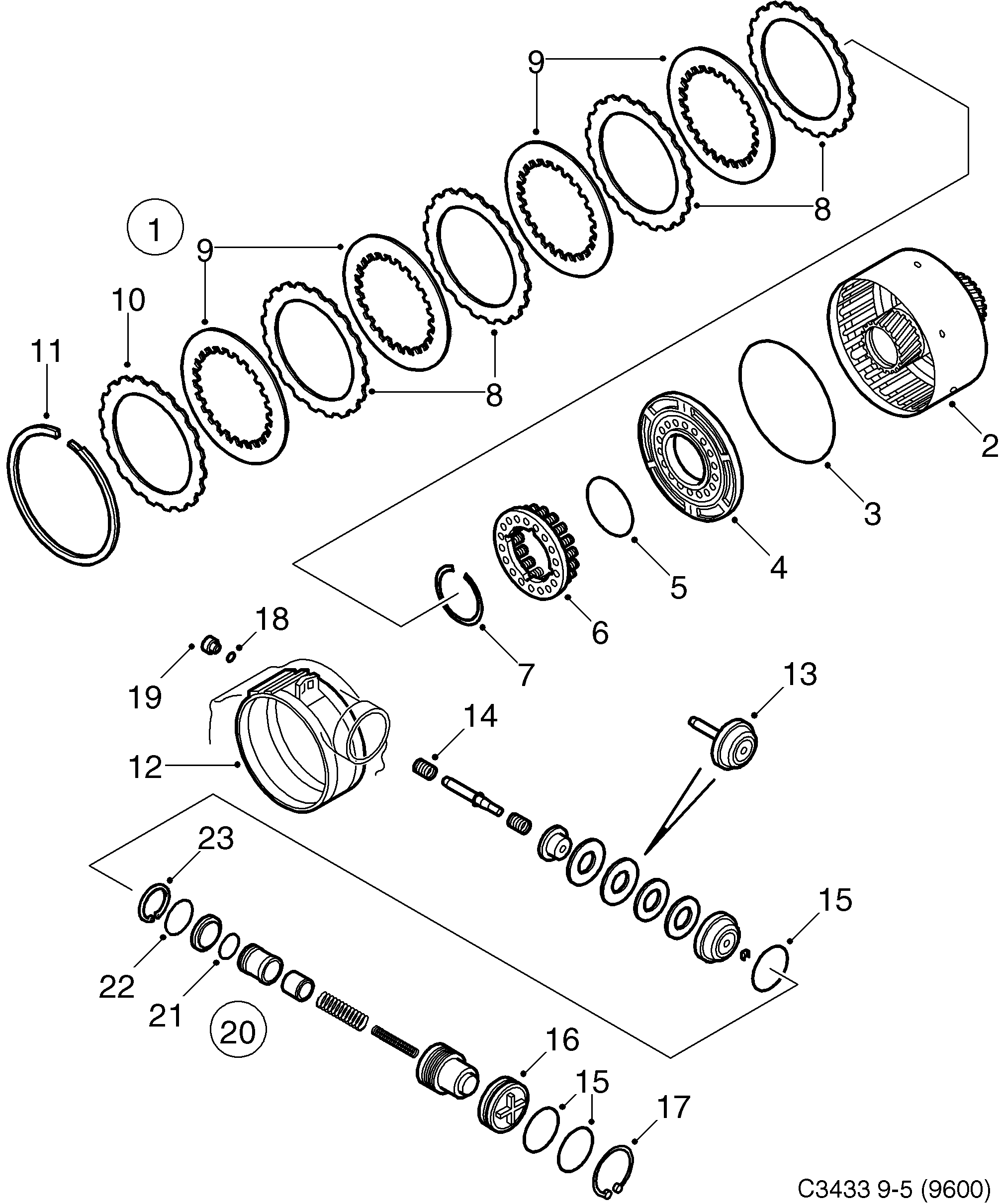

Saab 9-5 (9600) Clutch C3 and freewheel F3 Brake B4 diagram

Pos	Article	Part No.
1	Drum	5442801
1	Drum	93188780 (replaces 5442926)
1	Drum	93185160 (replaces 5590328)
2	Drum	5442819
2	Drum	5590047
2	Drum	5442934
2	Drum	5590054
3	O-ring	93179717 (replaces 5442827)
4	Piston	5442835
5	O-ring	93178241 (replaces 5442165)
6	Return spring	90348847 (replaces 5250980)
7	Lock ring	90348849 (replaces 5250972)
8	Plate	90541983 (replaces 5250998)
9	Clutch disc	93188775 (replaces 5442876)
9	Clutch disc	93185161 (replaces 5590062)
10	Clutch disc	93179730 (replaces 5442884)
10	Clutch disc	93179732 (replaces 5442892)
10	Clutch disc	93179733 (replaces 5442900)
11	Lock ring	93179737 (replaces 5442918)
12	Brake lining	93185205 (replaces 5442942)
13	Piston	93179983 (replaces 5442959)
13	Piston	93179984 (replaces 5442967)
13	Piston	93179985 (replaces 5442975)
13	Piston	93179986 (replaces 5442983)
13	Piston	93179987 (replaces 5442991)
14	Compression spring	93179988 (replaces 5443007)
15	O-ring	90542004 (replaces 5251228)
16	Cover	93187000 (replaces 5443023)
16	Cover	93187000 (replaces 5590500)
17	Lock ring	90542006 (replaces 5251277)
18	O-ring	90348863 (replaces 5164421)
19	Plug	93185203 (replaces 5251285)
20	Absorber	93190077
21	O-ring	93166821
22	O-ring	93166822
23	Snap ring	93166823
