Saab 9-5 (9600) 2002-2010 Freewheel F1 Brakes B1 and B2

Group 4 Transmission, section 875

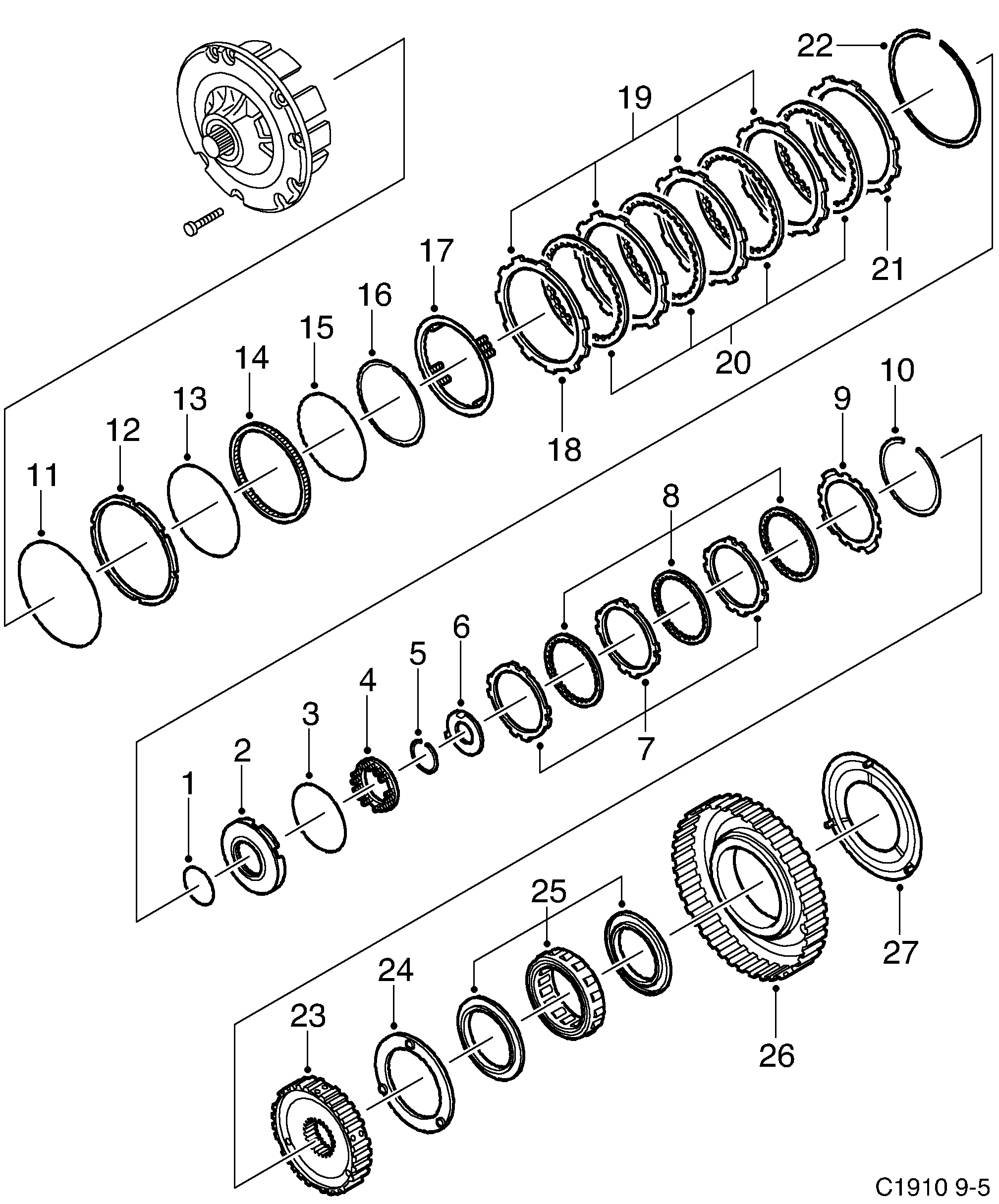

Saab 9-5 (9600) Freewheel F1 Brakes B1 and B2 diagram

Pos	Article	Part No.
1	O-ring	93178241 (replaces 5442165)
2	Piston	93178528 (replaces 5442173)
3	O-ring	93178242 (replaces 5441993)
4	Return spring	90348786 (replaces 5251467)
5	Lock ring	90348773 (replaces 5250105)
6	Thrust washer	5442199
6	Clutch disc	90348789 (replaces 5251509)
7	Plate	90348787 (replaces 5251475)
8	Clutch disc	90541961 (replaces 5251483)
9	Clutch disc	90348788 (replaces 5251491)
9	Clutch disc	93185072 (replaces 5449962)
10	Lock ring	90348777 (replaces 5253687)
10	Lock ring	93185073 (replaces 5449970)
11	O-ring	93178319 (replaces 5442231)
12	Piston	93178611 (replaces 5442249)
13	O-ring	93178605 (replaces 5442256)
14	Plate	5442264
14	Plate	93185074 (replaces 5449988)
15	O-ring	90510088 (replaces 5251525)
15	O-ring	93185075 (replaces 5449996)
16	Lock ring	5442280
17	Return spring	5442298
17	Return spring	93185077 (replaces 5590013)
18	Clutch disc	93178745 (replaces 5442330)
19	Plate	5255641
19	Plate	9119594 (replaces 5251558)
20	Clutch disc	93166791 (replaces 5442306)
20	Clutch disc	93185098 (replaces 5590021)
21	Clutch disc	93178758 (replaces 5442314)
21	Clutch disc	93178759 (replaces 5442322)
22	Lock ring	90348798 (replaces 5251160)
23	Hub	5442355
23	Hub	93185099 (replaces 5590039)
24	Thrust washer	90348801 (replaces 5251608)
25	Roller bearing	90512050 (replaces 5251590)
26	Bearing race	9194965 (replaces 5251582)
27	Thrust washer	9194966 (replaces 5251616)
