Saab 9-5 (9600) 2002-2010 Freewheel F2 and brake B3

Group 4 Transmission, section 850

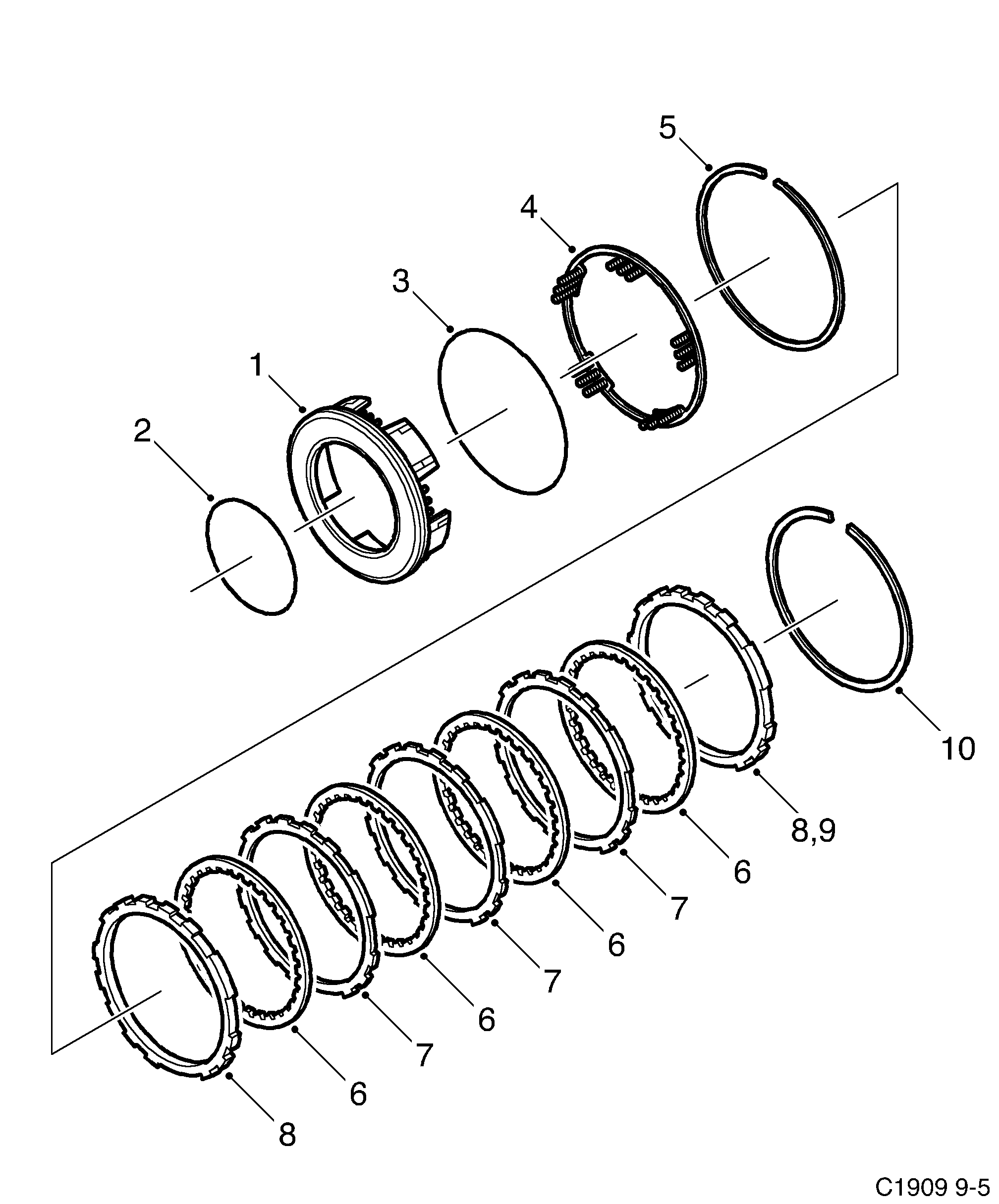

Saab 9-5 (9600) Freewheel F2 and brake B3 diagram
PosArticlePart No.
1Piston5251103
1Piston55352200 (replaces 5447719)
2O-ring93178318 (replaces 5442405)
3O-ring93178319 (replaces 5442231)
4Return spring90348806 (replaces 5251129)
5Lock ring90348805 (replaces 5251111)
6Clutch disc5255146
6Clutch disc93178718 (replaces 5447727)
7Plate93178330 (replaces 5442447)
8Clutch disc5442454
8Clutch disc55352282 (replaces 5447743)
9Clutch disc55352281 (replaces 5447735)
10Lock ring90348798 (replaces 5251160)
