Saab 9-5 (9600) 2002-2010 Clutch C1 Clutch C2

Group 4 Transmission, section 800

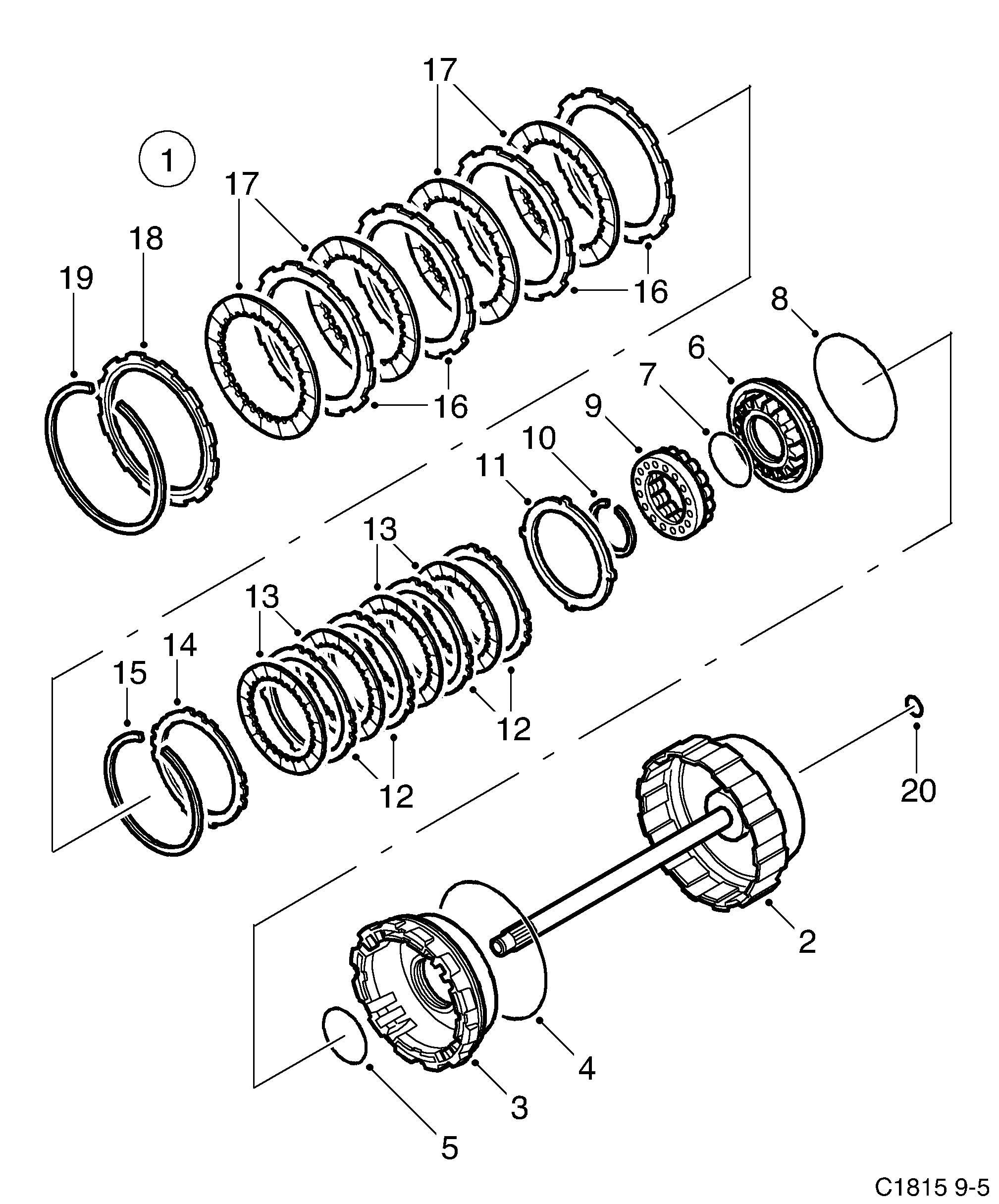

Saab 9-5 (9600) Clutch C1 Clutch C2 diagram

Pos	Article	Part No.
1	Shaft	93178341 (replaces 5442124)
1	Clutch	93178341
1	Shaft	93167071 (replaces 5447560)
1	Shaft	93178341 (replaces 5442140)
1	Shaft	93178340 (replaces 5441936)
1	Clutch	93178340
1	Shaft	5447693
1	Shaft	93167201
2	Shaft	5442132
2	Shaft	5442157
2	Shaft	5441944
2	Shaft	93743518 (replaces 5447701)
3	Piston	5441951
3	Piston	5447586
4	O-ring	90348767 (replaces 5250063)
5	O-ring	90348768 (replaces 5250071)
6	Piston	5441985
6	Piston	5447594
8	O-ring	93178242 (replaces 5441993)
9	Return spring	93178415 (replaces 5442009)
10	Lock ring	90348773 (replaces 5250105)
11	Plate	5442025
11	Plate	93178419 (replaces 5447602)
12	Plate	90348774 (replaces 5250121)
13	Clutch disc	5442041
13	Clutch disc	93178423 (replaces 5447610)
14	Clutch disc	5250147
14	Clutch disc	55352254 (replaces 5447628)
14	Clutch disc	5250154
14	Clutch disc	55352255 (replaces 5447636)
14	Clutch disc	5250162
14	Clutch disc	55352256 (replaces 5447644)
15	Lock ring	90348777 (replaces 5253687)
15	Lock ring	55352257 (replaces 5447651)
16	Plate	90542937 (replaces 5442090)
17	Clutch disc	93178466 (replaces 5442108)
18	Clutch disc	5250204
18	Clutch disc	55352259 (replaces 5447669)
18	Friction disc	90542939
18	Clutch disc	55352260 (replaces 5447677)
18	Clutch disc	5250220
18	Clutch disc	55352261 (replaces 5447685)
19	Lock ring	9199893 (replaces 5441365)
20	O-ring	90348782 (replaces 5250246)
