Saab 9-5 (9600) 2002-2010 End cover

Group 4 Transmission, section 775

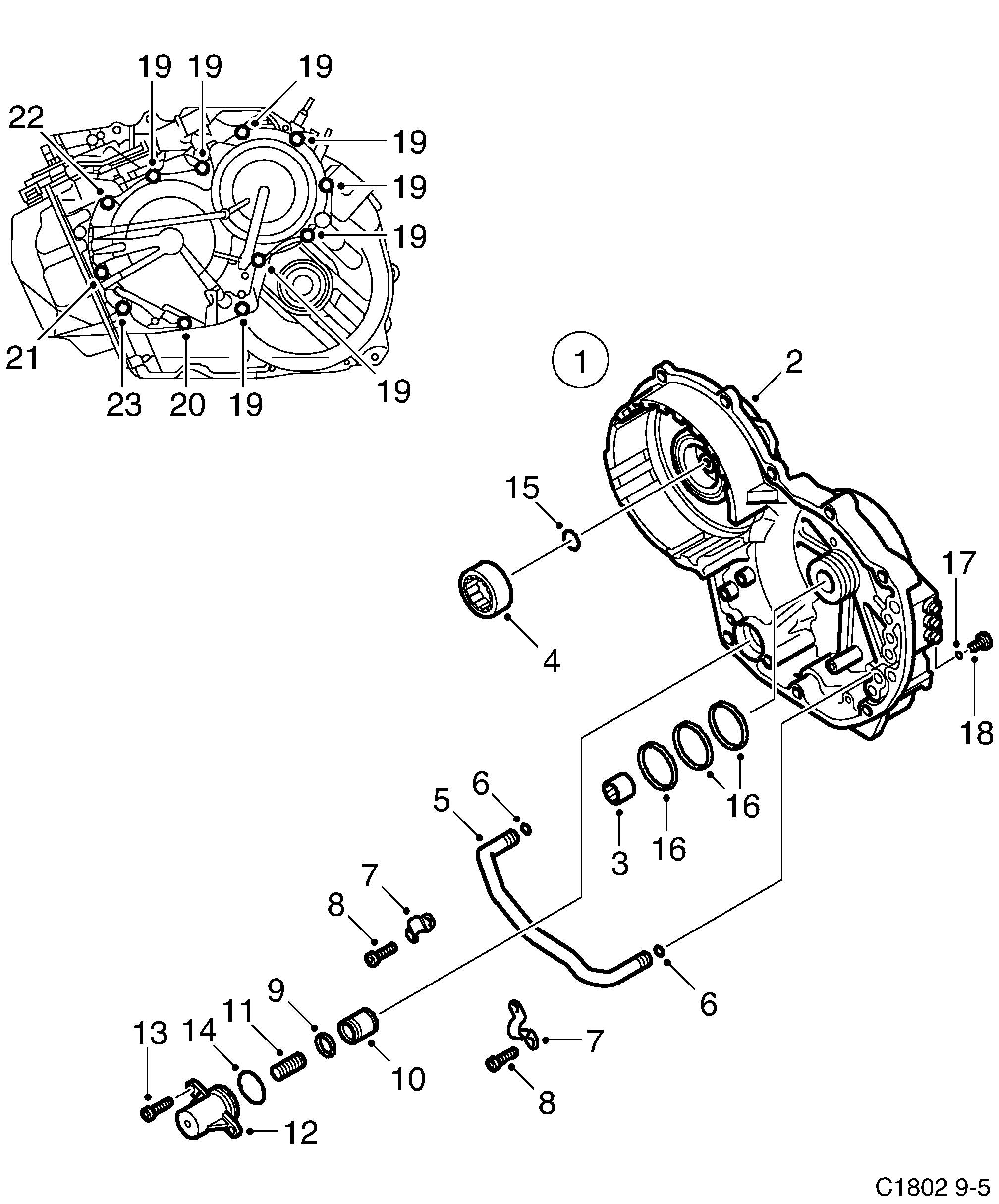

Saab 9-5 (9600) End cover diagram

Pos	Article	Part No.
1	Transmission housing	93178161 (replaces 5447230)
5	Tube	93178051 (replaces 5441613)
6	O-ring	93177847 (replaces 5441530)
7	Clamp	5441621
8	Screw	90007936 (replaces 5441639)
9	O-ring	90542845 (replaces 5441647)
10	Piston	93178057 (replaces 5441654)
11	Compression spring	90542847 (replaces 5441662)
12	Cover	93178057 (replaces 5441670)
13	Screw	90399357 (replaces 5255351)
14	O-ring	93188441 (replaces 5164926)
15	O-ring	93178058 (replaces 5441696)
16	O-ring	90512224 (replaces 5164967)
17	O-ring	90007873 (replaces 4491080)
18	Plug	90007874 (replaces 4491072)
19	Screw	90399332 (replaces 5164850)
20	Screw	90399339 (replaces 5164868)
21	Screw	90399340 (replaces 5250030)
22	Screw	90541878 (replaces 5164876)
23	Screw	55352223 (replaces 5250006)
