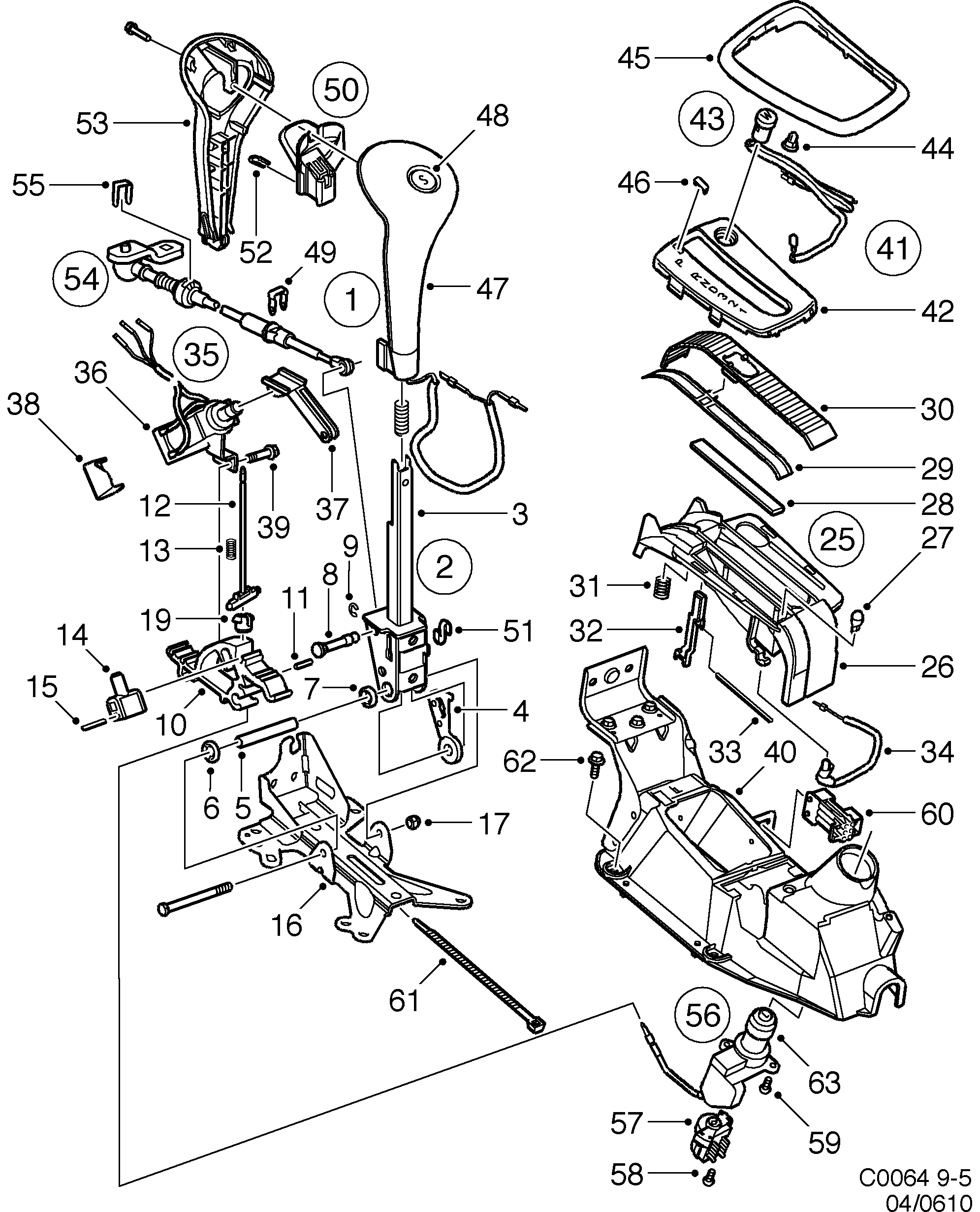

Group 4 Transmission, section 610
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gear changing unit | 4777702 |
| 1 | Gear changing unit | 5162227 |
| 1 | Gear changing unit | 5162227 (replaces 4777710) |
| 1 | Gear changing unit | 4777686 |
| 1 | Gear changing unit | 5162201 |
| 1 | Gear changing unit | 5162201 (replaces 4777694) |
| 2 | Shift lever | 4777629 |
| 3 | Shift lever | 4579405 |
| 4 | Striker plate | 4777439 |
| 5 | Leading tube | 4777470 |
| 6 | Washer | 5162722 |
| 7 | Bushing | 5162714 |
| 8 | Ball | 4777520 |
| 9 | Retaining ring | 8123473 |
| 10 | Gear sel. pos. profile | 4777405 |
| 11 | Spring pin | 4777496 |
| 12 | Control rod | 4777454 |
| 13 | Spring | 4777462 |
| 14 | Dog | 4777488 |
| 15 | Retaining ring | 4777199 |
| 16 | Floor console | 4777447 |
| 17 | Lock nut | 92150265 (replaces 8073512) |
| 19 | Damping element | 4777512 |
| Disc spring | 5162730 | |
| Sleeve | 5162748 | |
| Screw | 5162854 | |
| 25 | Light box | 4777637 |
| 25 | Light box | 4777645 |
| 26 | Light box | 4777538 |
| 26 | Light box | 4777736 |
| 27 | Bulb | 4777181 |
| 28 | Grid | 4777546 |
| 29 | Indicator strip | 4777553 |
| 30 | Jalousie | 4777173 |
| 30 | Blind | 4777371 |
| 31 | Spring | 4777587 |
| 32 | Override arm | 4777579 |
| 33 | Spring | 4777561 |
| 35 | Solenoid | 5162060 (replaces 4777678) |
| 36 | Solenoid | 4579504 |
| 35 | Solenoid | 5162060 |
| 36 | Solenoid | 5162052 |
| 38 | Protecting casing | 4777595 |
| 39 | Screw | 92153218 (replaces 7982176) |
| 40 | Gear shift housing | 4777751 |
| 40 | Gear shift housing | 5163282 |
| 41 | Cover | 4777660 |
| 41 | Cover | 4777652 |
| 42 | Cover | 4579496 |
| 42 | Cover | 4579538 |
| 43 | Winter switch | 4579447 |
| 44 | Bulb | 4777165 |
| 45 | Rim | 4579546 |
| 45 | Rim | 4580759 |
| 46 | Cover | 4777611 |
| 47 | Cover | 4579462 |
| 47 | Cover | 4580692 |
| 48 | Sport switch | 4579454 |
| 49 | Clip | 4777249 |
| 50 | Button | 4777603 |
| 51 | Clip | 5162847 |
| 53 | Cover | 4579470 |
| 53 | Cover | 4580684 |
| 54 | Cable, gear selector | 4777728 |
| 55 | Clip | 90522787 (replaces 4777256) |
| 56 | Ignition switch | 30582858 (replaces 4579421) |
| 56 | Ignition switch | 30582858 (replaces 5161294) |
| 56 | Ignition switch | 55563303 (replaces 30584214) |
| 57 | Switch | 4946307 |
| 57 | Switch | 4943692 |
| 58 | Screw | 92151805 (replaces 8059230) |
| 59 | Screw | 8059578 |
| 59 | Screw | 8059305 |
| 60 | Connector housing | 12788966 (replaces 4113809) |
| 61 | Tie strap | 11900513 (replaces 92150191) |
| 62 | Screw | 92151601 (replaces 7978430) |
