Saab 9-5 (9600) 1998-2001 Controls in gear box

Group 4 Transmission, section 602

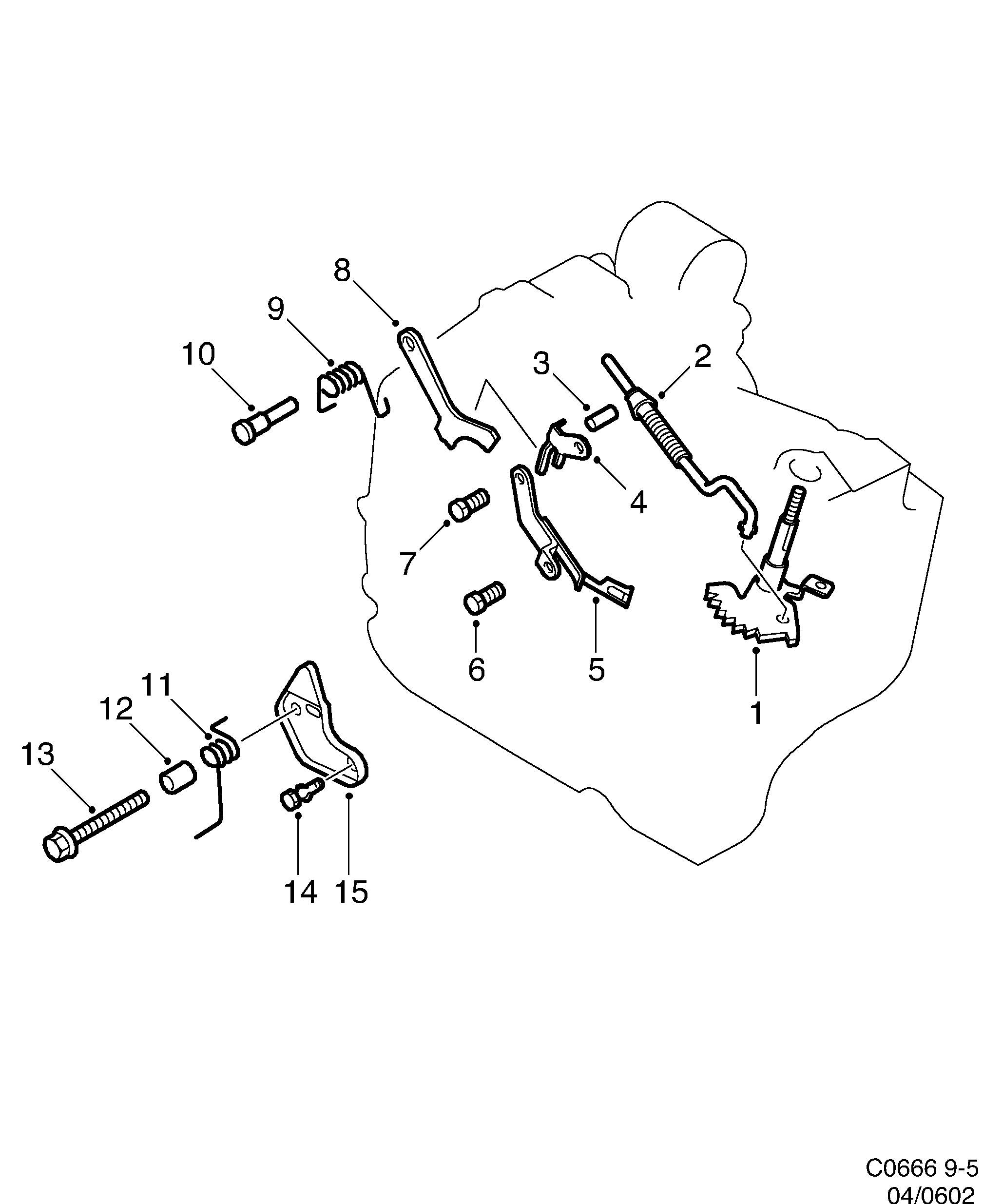

Saab 9-5 (9600) Controls in gear box diagram

Pos	Article	Part No.
1	Lever	5250493
2	Shaft	9119579 (replaces 5250576)
3	Pin	9119580 (replaces 5250584)
4	Fixation plate	90541820 (replaces 5250592)
5	Spring	9119581 (replaces 5250600)
6	Screw	55352202 (replaces 5164470)
7	Screw	5164546
8	Stop	5250501
9	Spring	9119577 (replaces 5250527)
10	Pin	90487789 (replaces 5250519)
11	Spring	5250543
12	Sleeve	90348762 (replaces 5250535)
13	Screw	90541817 (replaces 5250550)
14	Screw	90399357 (replaces 5255351)
15	Fixation plate	5250568
