Saab 9-5 (9600) 1998-2001 Output shaft Planetary gear

Group 4 Transmission, section 567

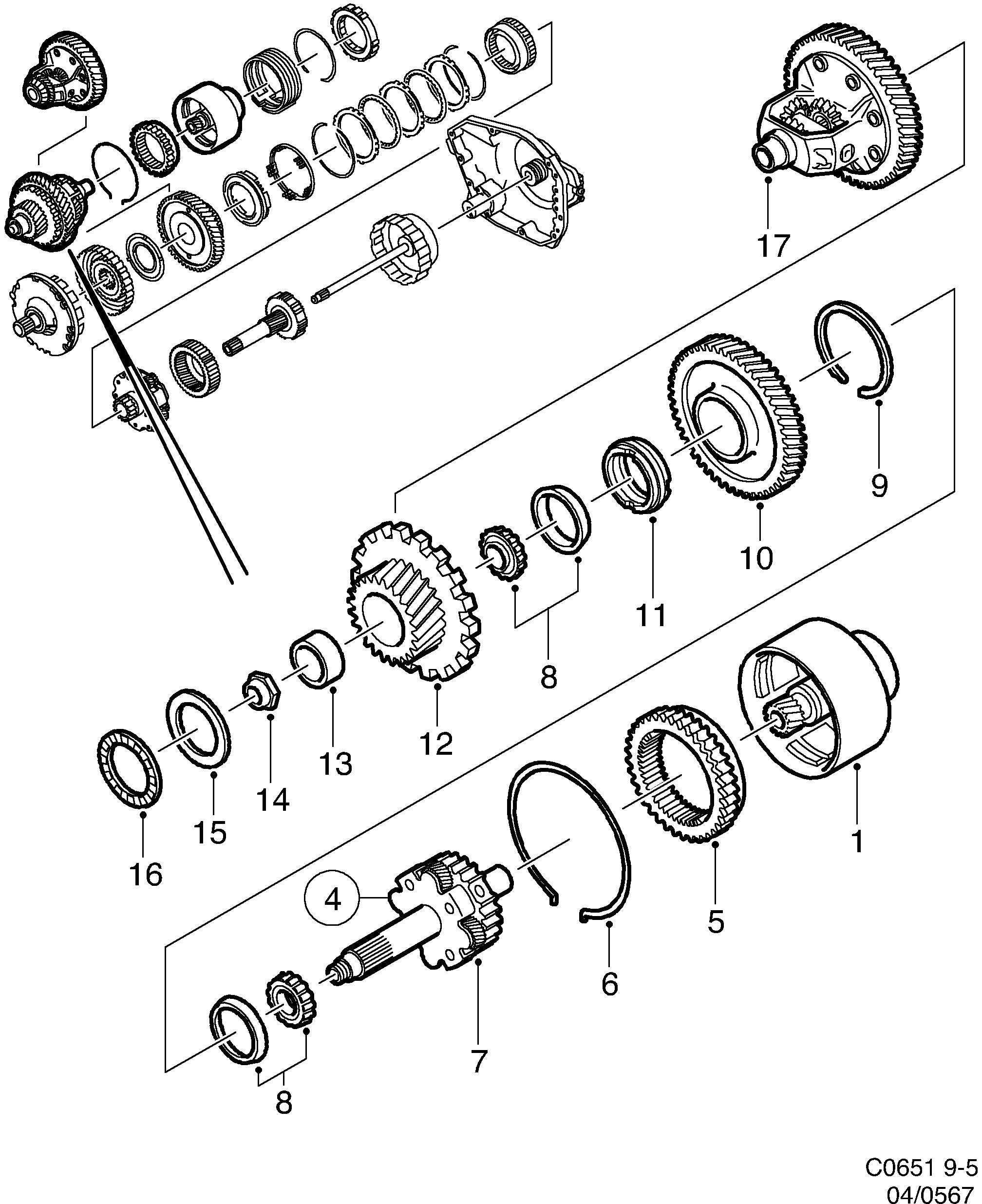

Saab 9-5 (9600) Output shaft Planetary gear diagram
PosArticlePart No.
4Gear5251301
4Gear5255815
5Gear5251327
6Lock ring5251319
7Planetary gear5251335
8Roller bearing5251368
9Lock ring5251376
10Gear5251350
11Spacer5251343
12Gear5251384
12Gear5255856
13Roller bearing90542010 (replaces 5251392)
14Lock nut5251400
15Thrust washer93180072 (replaces 5251418)
16Needle bearing9195051 (replaces 5251426)
