Saab 9-5 (9600) 1998-2001 Clutch C3 and freewheel F3 Brake B4

Group 4 Transmission, section 565

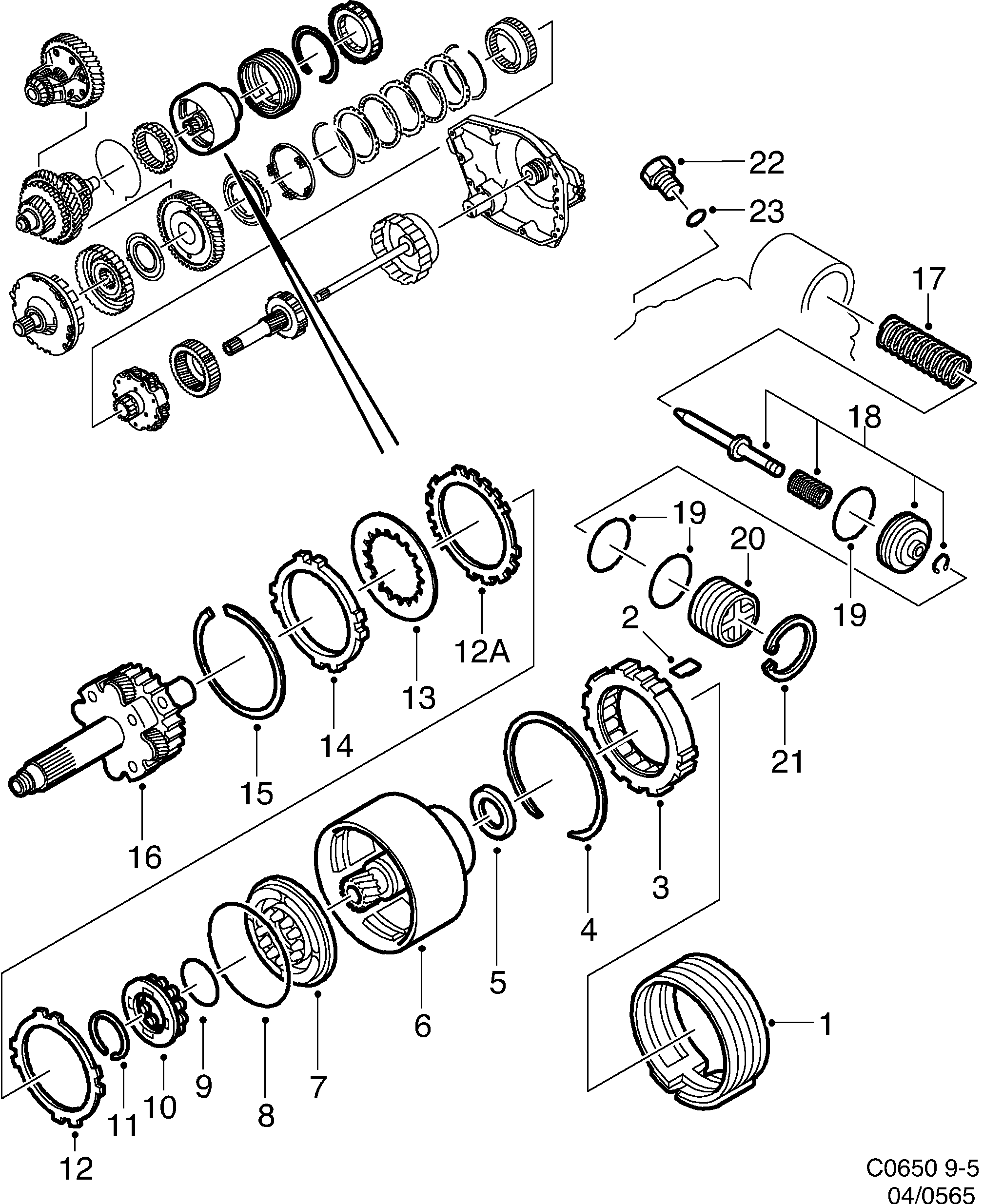

Saab 9-5 (9600) Clutch C3 and freewheel F3 Brake B4 diagram

Pos	Article	Part No.
1	Brake lining	5251210
2	Retainer	5251194
3	Clutch	5251202
4	Lock ring	5251186
5	Angle washer	5251061
6	Drum	93166901 (replaces 5250931)
6	Drum	93166901
7	Piston	5250964
8	O-ring	5250949
9	O-ring	93178241 (replaces 5253612)
10	Return spring	90348847 (replaces 5250980)
11	Lock ring	90348849 (replaces 5250972)
12	Plate	5251004
12A	Plate	90541983 (replaces 5250998)
13	Clutch disc	5251012
14	Clutch disc	5251020
14	Clutch disc	5251038
14	Clutch disc	5251046
15	Lock ring	5251053
17	Compression spring	5251251
18	Piston	5251236
18	Piston	5251244
19	O-ring	90542004 (replaces 5251228)
20	Cover	5251269
21	Lock ring	90542006 (replaces 5251277)
22	Plug	93185203 (replaces 5251285)
23	O-ring	90348863 (replaces 5164421)
