Saab 9-5 (9600) 1998-2001 Freewheel F1 Brakes B1 and B2

Group 4 Transmission, section 561

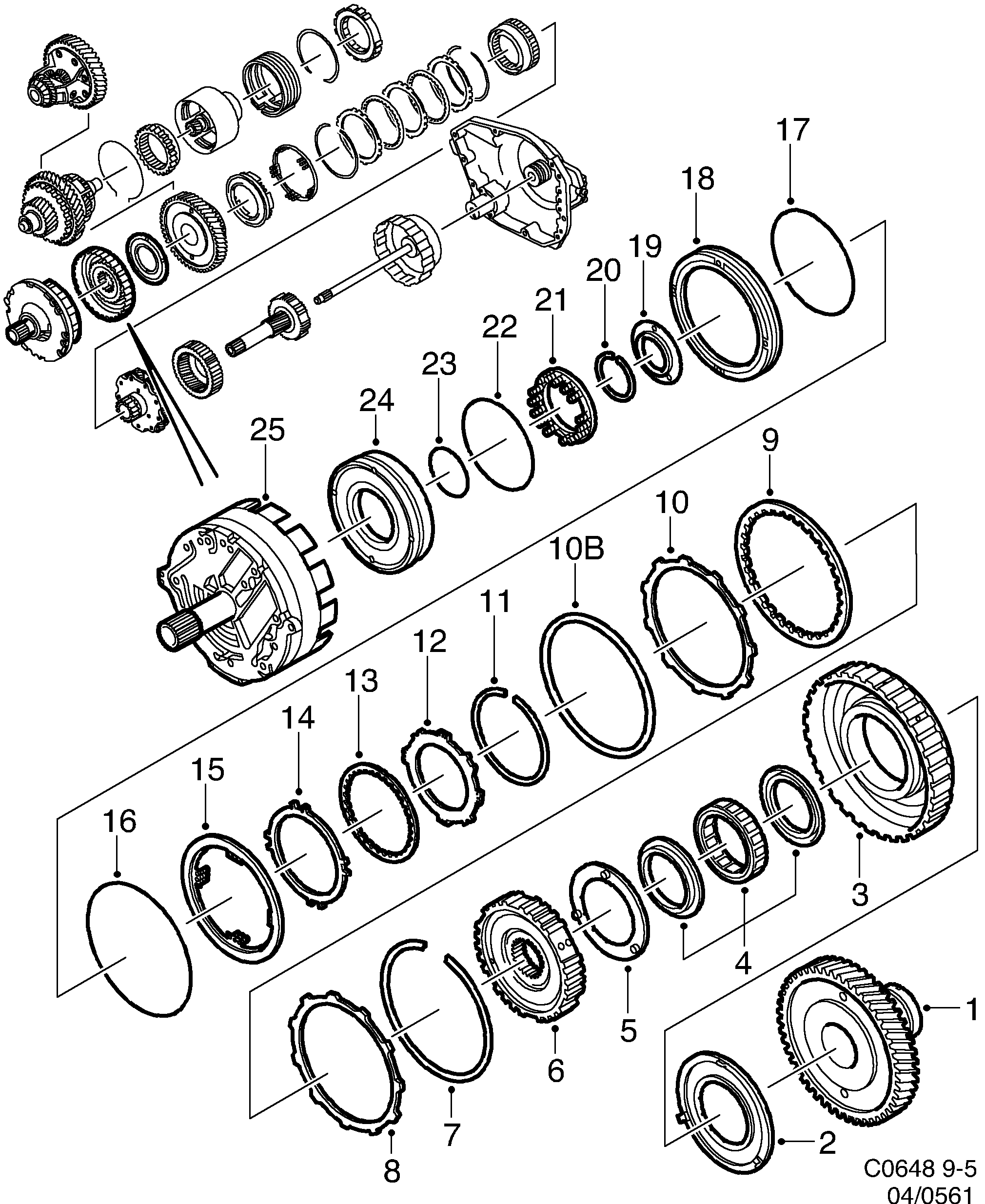

Saab 9-5 (9600) Freewheel F1 Brakes B1 and B2 diagram

Pos	Article	Part No.
2	Thrust washer	9194966 (replaces 5251616)
3	Bearing race	9194965 (replaces 5251582)
4	Roller bearing	90512050 (replaces 5251590)
5	Thrust washer	90348801 (replaces 5251608)
6	Roller bearing	5251517
7	Lock ring	90348798 (replaces 5251160)
8	Clutch disc	5251574
9	Clutch disc	5251566
10	Plate	9119594 (replaces 5251558)
10B	Clutch disc	5251624
11	Lock ring	90348777 (replaces 5253687)
12	Clutch disc	90348788 (replaces 5251491)
13	Clutch disc	90541961 (replaces 5251483)
14	Plate	90348787 (replaces 5251475)
15	Return spring	5251541
16	O-ring	93178319 (replaces 5251095)
17	O-ring	90510088 (replaces 5251525)
18	Piston	5251533
19	Clutch disc	90348789 (replaces 5251509)
20	Lock ring	90348773 (replaces 5250105)
21	Return spring	90348786 (replaces 5251467)
22	O-ring	93178242 (replaces 5251442)
23	O-ring	93178241 (replaces 5253612)
24	Piston	5251459
