Saab 9-5 (9600) 1998-2001 Freewheel F2 and brake B3

Group 4 Transmission, section 559

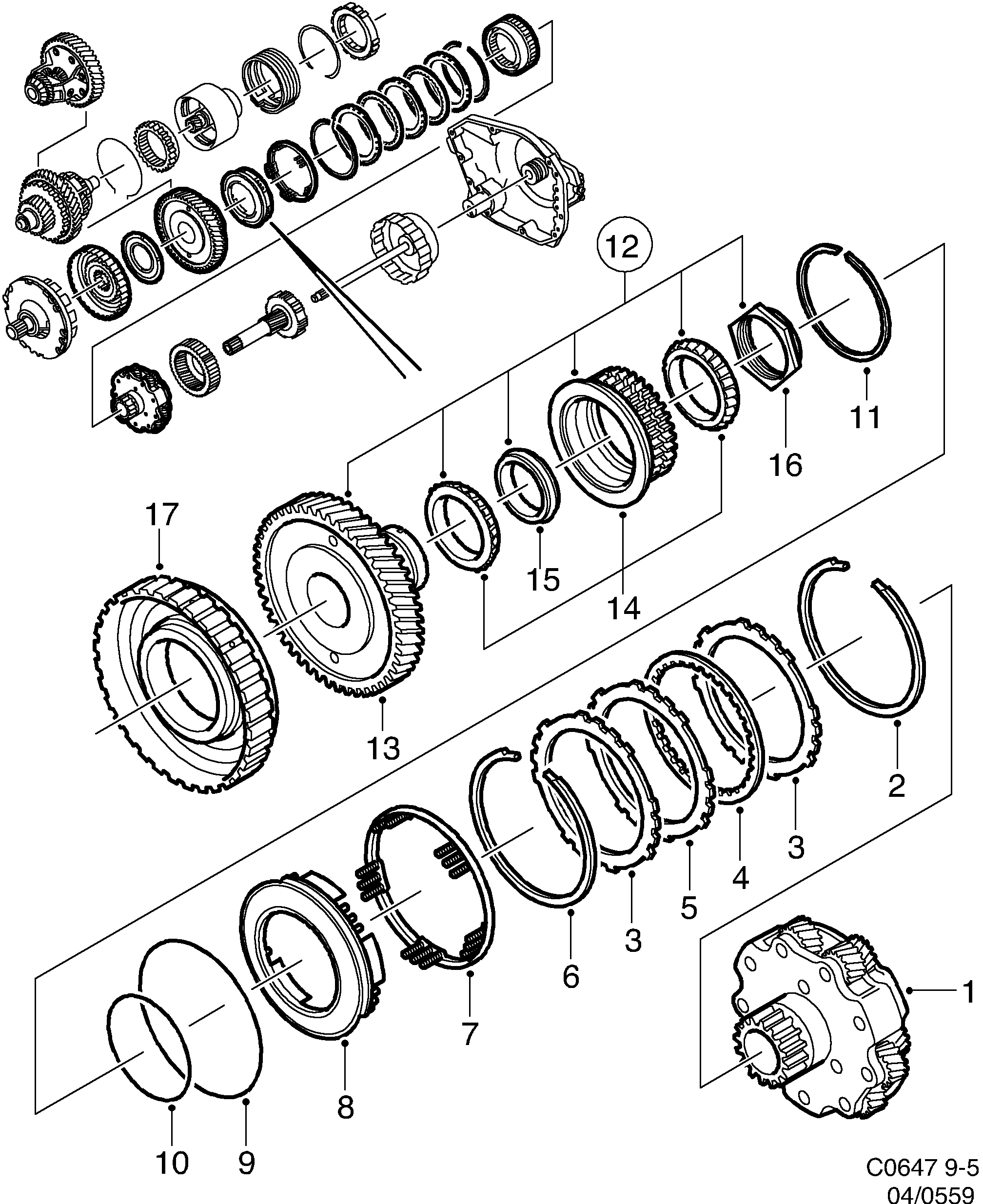

Saab 9-5 (9600) Freewheel F2 and brake B3 diagram
PosArticlePart No.
2Lock ring90348798 (replaces 5251160)
3Clutch disc5251152
4Clutch disc5255146
5Plate5251137
6Lock ring90348805 (replaces 5251111)
7Return spring90348806 (replaces 5251129)
8Piston5251103
9O-ring93178319 (replaces 5251095)
10O-ring5251087
11Lock ring90541967 (replaces 5250626)
12Intermediate gear5250634
13Gear5250659
14Roller bearing5250667
15Washer5250642
16Lock nut5250675
