Saab 9-5 (9600) 1998-2001 Clutch C1 Clutch C2

Group 4 Transmission, section 555

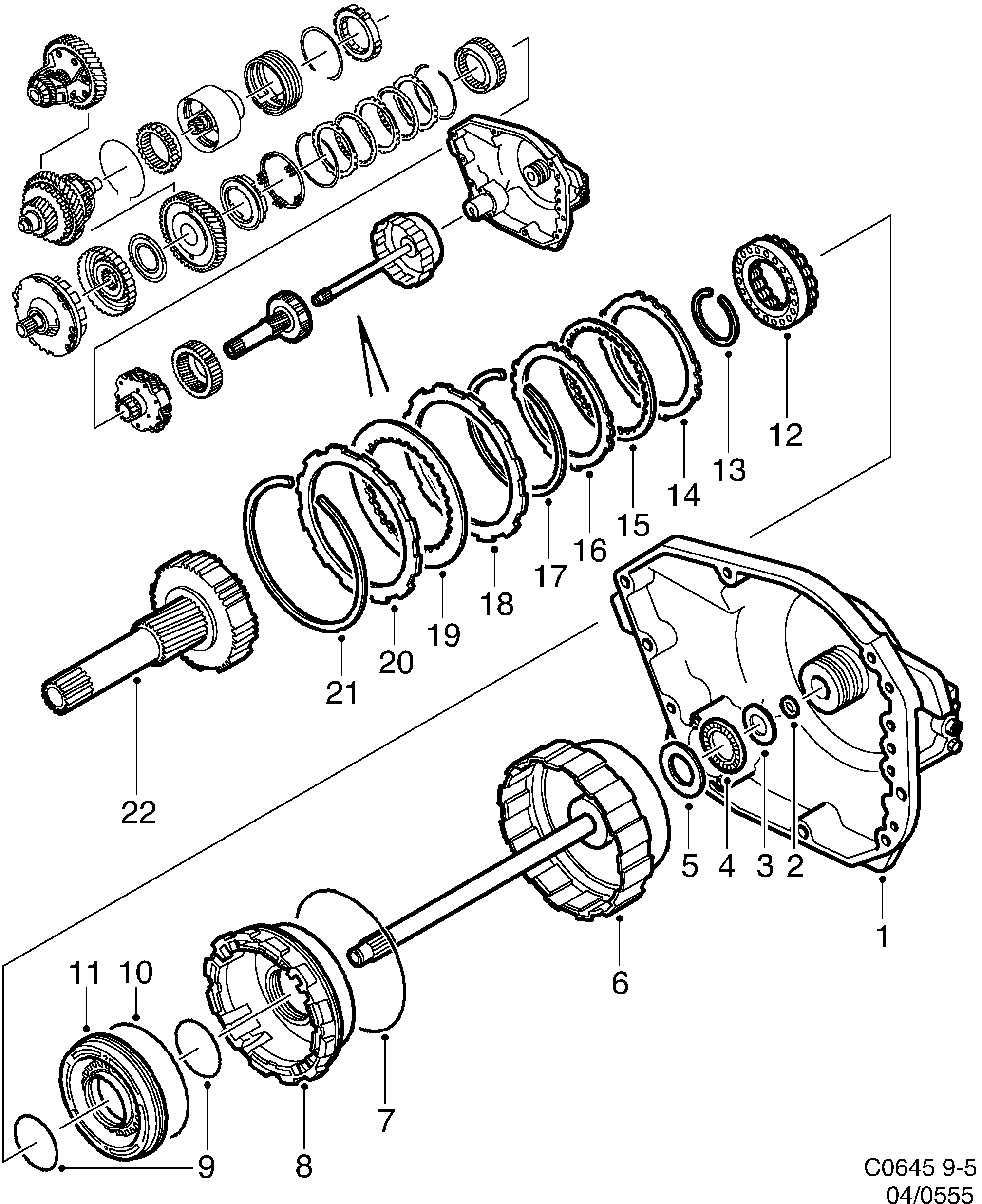

Saab 9-5 (9600) Clutch C1 Clutch C2 diagram

Pos	Article	Part No.
2	O-ring	90348782 (replaces 5250246)
3	Thrust washer	93188275 (replaces 5447263)
4	Needle bearing	5250899
5	Thrust washer	90348839 (replaces 5250907)
5	Thrust washer	90442172 (replaces 5250915)
6	Shaft	93180846 (replaces 5250055)
7	O-ring	90348767 (replaces 5250063)
8	Piston	93189707
9	O-ring	90348768 (replaces 5250071)
10	O-ring	93178242 (replaces 5251442)
11	Piston	93180846
12	Return spring	5250097
13	Lock ring	90348773 (replaces 5250105)
14	Plate	90348774 (replaces 5250121)
15	Clutch disc	5250139
16	Clutch disc	5250147
16	Clutch disc	5250154
16	Clutch disc	5250162
17	Lock ring	90348777 (replaces 5253687)
18	Plate	5250188
19	Clutch disc	5250196
20	Clutch disc	5250204
20	Clutch disc	90542939 (replaces 5250212)
20	Clutch disc	5250220
21	Lock ring	9199893 (replaces 5255179)
