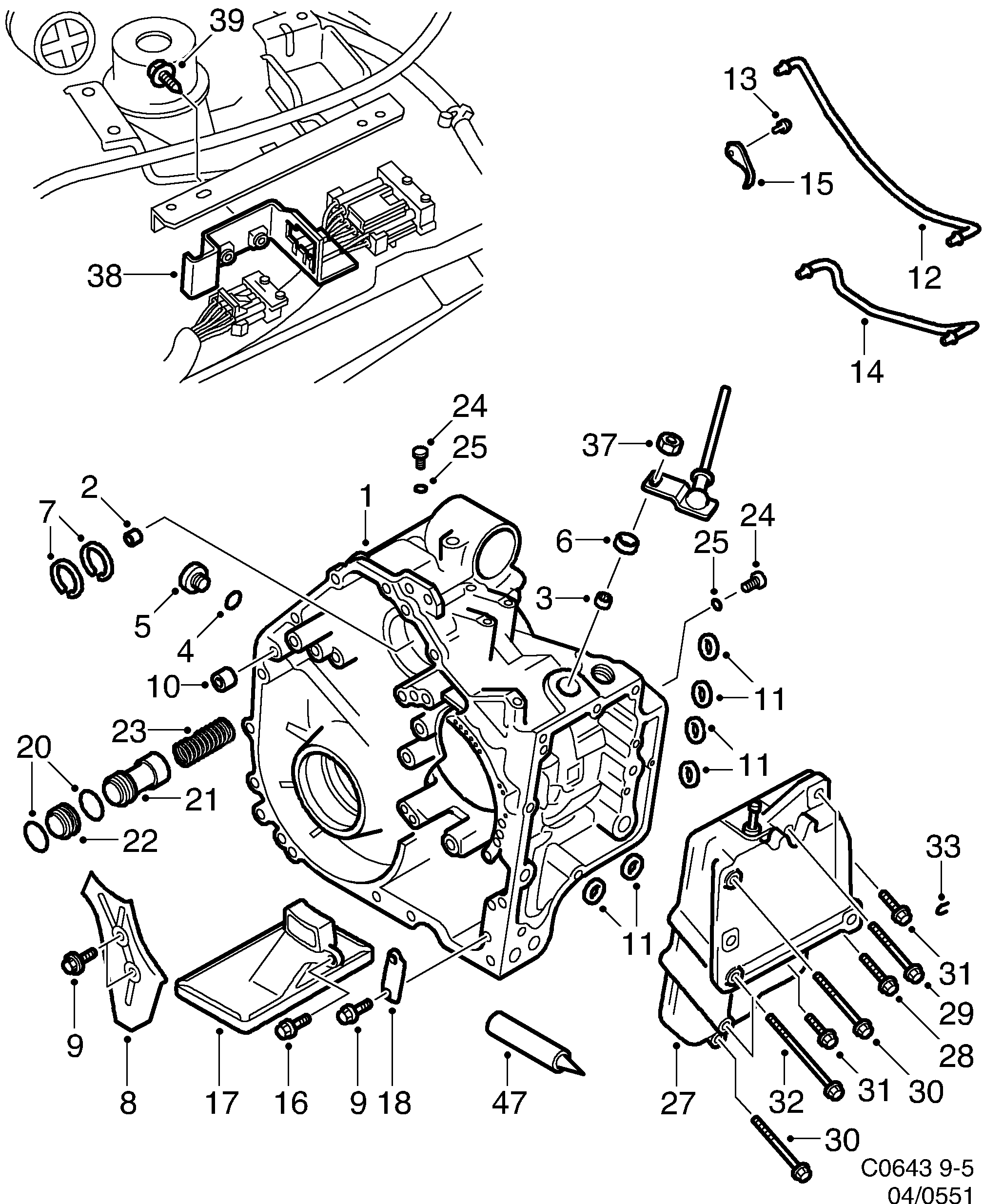

Group 4 Transmission, section 551
| Pos | Article | Part No. |
|---|---|---|
| 1 | Transmission housing | 5164405 |
| 2 | Needle bearing | 90369298 (replaces 5255047) |
| 3 | Needle bearing | 90348717 (replaces 5259536) |
| 4 | O-ring | 90348863 (replaces 5164421) |
| 5 | Plug | 5448451 |
| 6 | Seal | 90348718 (replaces 4491064) |
| 7 | Sealing ring | 5164454 |
| 8 | Baffle | 5164462 |
| 9 | Screw | 55352202 (replaces 5164470) |
| 10 | Gasket | 90369297 (replaces 5164488) |
| 11 | Gasket | 90348723 (replaces 5164496) |
| 12 | Tube | 90512194 (replaces 5164504) |
| 13 | Screw | 90399357 (replaces 5255351) |
| 14 | Tube | 90542554 (replaces 5164520) |
| 15 | Clamp | 90348727 (replaces 5164538) |
| 16 | Screw | 5164546 |
| 17 | Oil strainer | 90541934 (replaces 5164553) |
| 18 | Plate | 90348729 (replaces 5164561) |
| 20 | O-ring | 90007861 (replaces 5164579) |
| 21 | Piston | 5164587 |
| 22 | Cover | 90348731 (replaces 5164595) |
| 23 | Compression spring | 90348732 (replaces 5164603) |
| 24 | Plug | 90007874 (replaces 4491072) |
| 25 | O-ring | 90007873 (replaces 4491080) |
| 27 | Cover | 30587477 (replaces 5164413) |
| 28 | Screw | 90399336 (replaces 4491106) |
| 29 | Screw | 90399342 (replaces 4491114) |
| 30 | Screw | 90399343 (replaces 4491122) |
| 31 | Screw | 90399359 (replaces 4491130) |
| 32 | Screw | 5164686 |
| 33 | Clamp | 5164694 |
| 37 | Nut | 11900440 (replaces 8074288) |
| 38 | Bracket | 4580247 |
| 39 | Screw | 11900353 (replaces 7978091) |
| 47 | Flange sealant | 93165267 (replaces 5164637) |
