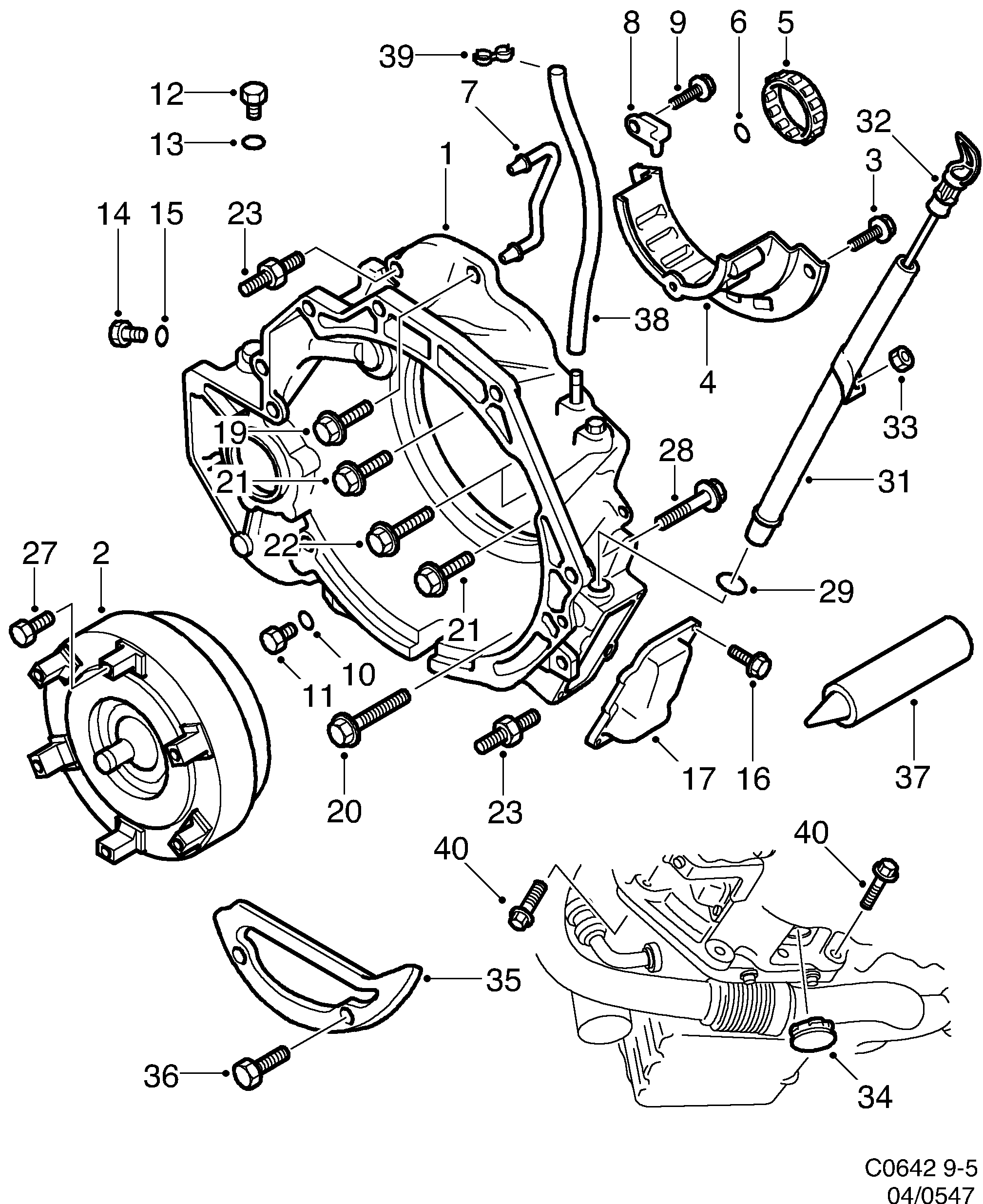

Group 4 Transmission, section 547
| Pos | Article | Part No. |
|---|---|---|
| 1 | Converter shell | 5164710 |
| 2 | Torque converter | 5160148 |
| 2 | Torque converter | 5160072 |
| 2 | Torque converter | 5255773 |
| 3 | Screw | 30587408 (replaces 5164728) |
| 4 | Baffle | 90542549 (replaces 5164736) |
| 5 | Roller bearing | 93743512 (replaces 5164744) |
| 6 | O-ring | 90348707 (replaces 5164751) |
| 7 | Tube | 90542550 (replaces 5164769) |
| 8 | Clamp | 90348709 (replaces 5164777) |
| 9 | Screw | 90295144 (replaces 5164785) |
| 10 | Sealing ring | 90348710 (replaces 4491015) |
| 11 | Plug | 90348711 (replaces 5164801) |
| 12 | Plug | 90007874 (replaces 4491072) |
| 13 | O-ring | 90007873 (replaces 4491080) |
| 14 | Plug | 11099271 (replaces 5164819) |
| 15 | O-ring | 90348713 (replaces 5164827) |
| 16 | Screw | 90541875 (replaces 5164835) |
| 17 | Cover | 4491049 |
| 19 | Screw | 90399332 (replaces 5164850) |
| 20 | Screw | 90399339 (replaces 5164868) |
| 21 | Screw | 90541878 (replaces 5164876) |
| 22 | Screw | 90541879 (replaces 5164884) |
| 23 | Screw | 5164892 |
| 27 | Screw | 4573309 |
| 28 | Screw | 55557007 (replaces 7984297) |
| 28 | Hexagon screw | 92150043 (replaces 7982606) |
| 29 | O-ring | 4238424 |
| 31 | Tube | 4580635 |
| 31 | Tube | 4580627 |
| 31 | Tube | 5162318 |
| 32 | Dipstick | 4580395 |
| 33 | Nut | 11900440 (replaces 8074288) |
| 34 | Cover | 90375851 (replaces 4346664) |
| 35 | Baffle | 4573069 |
| 36 | Hexagon screw | 55562122 (replaces 4685475) |
| 37 | Flange sealant | 93165267 (replaces 5164637) |
| 38 | Bleeder hose | 5335732 (replaces 4926838) |
| 39 | Clamp | 90344674 (replaces 4685905) |
| 40 | Screw | 7978299 |
