Saab 9-5 (9600) 2002-2010 Outer universal joint

Group 4 Transmission, section 470

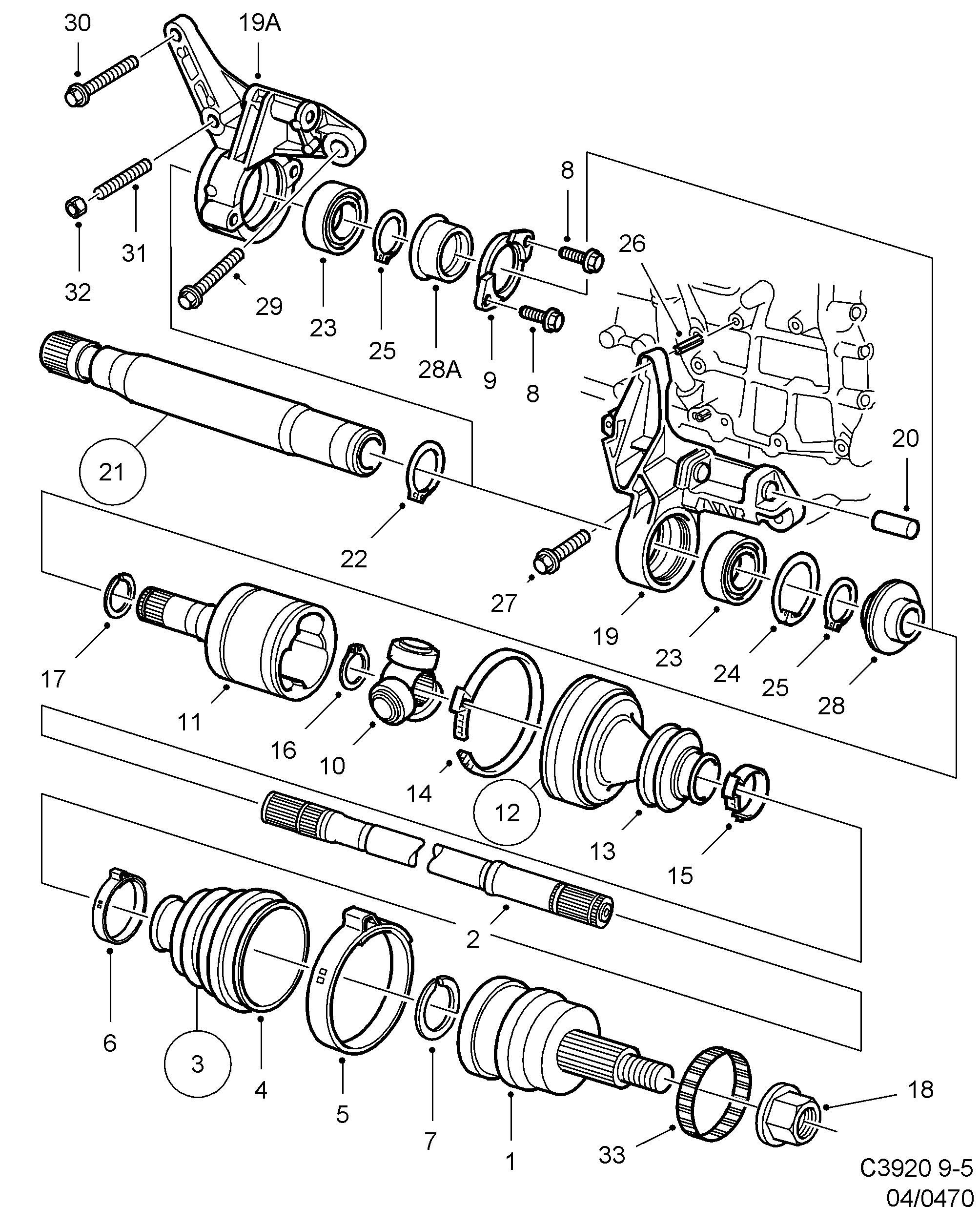

Saab 9-5 (9600) Outer universal joint diagram

Pos	Article	Part No.
1	Universal joint	5390489
2	Drive shaft	5393020
2	Drive shaft	5392964
2	Drive shaft	5532718
2	Drive shaft	5393038
2	Drive shaft	5392816 (replaces 5392824)
2	Drive shaft	5392816
2	Drive shaft	5393038 (replaces 5532700)
5	Clamp	4687018
6	Clamp	5390513
7	Lock ring	5390521
8	Screw	11900355 (replaces 7978117)
9	Bearing seat	12789486 (replaces 5259841)
10	Companion flange	5390547
10	Companion flange	4686895
11	Companion flange	5390539
11	Companion flange	4686911
11	Companion flange	5532726
12	Bellows kit	5390646
13	Bellows	5390554
14	Clamp	5390570
15	Clamp	5390562
12	Bellows kit	8994170
13	Bellows	4686945
14	Clamp	4686937
15	Clamp	4686952
12	Bellows kit	5532775
13	Bellows	5532734
13	Bellows	5532783
14	Clamp	5532759
15	Clamp	5532742
16	Lock ring	5390588
16	Lock ring	4686903
17	Lock ring	4686929 (replaces 5392055)
17	Lock ring	4686929
18	Lock nut	5390471
19	Bearing bracket	5440425
19	Bearing bracket	5440433
19	Bearing bracket	4579348
19	Bearing bracket	4578118
19	Bearing bracket	5258371
19A	Bearing bracket	5257795
19A	Bearing bracket	55556979
19A	Bearing bracket	55556978
20	Bushing	7593080
21	Intermediate shaft	4926580
22	Snap ring	92152060 (replaces 9378332)
23	Ball bearing	12785906 (replaces 5258124)
24	Snap ring	12788653 (replaces 7973738)
24	Snap ring	12788653
26	Cotter pin	7974074
27	Screw	11900368 (replaces 7978224)
27	Screw	11900368
27	Screw	7978299
28	Sealing ring	30566341 (replaces 4578241)
28	Sealing ring	30566341
28A	Sealing ring	12789088 (replaces 5259833)
29	Screw	92153206 (replaces 7978307)
29	Screw	11101322
30	Screw	55557006 (replaces 7978323)
31	Set screw	5125612
32	Lock nut	92153199 (replaces 8151474)
33	Ring	12822141
