Saab 9-5 (9600) 1998-2001 Outer universal joint

Group 4 Transmission, section 460

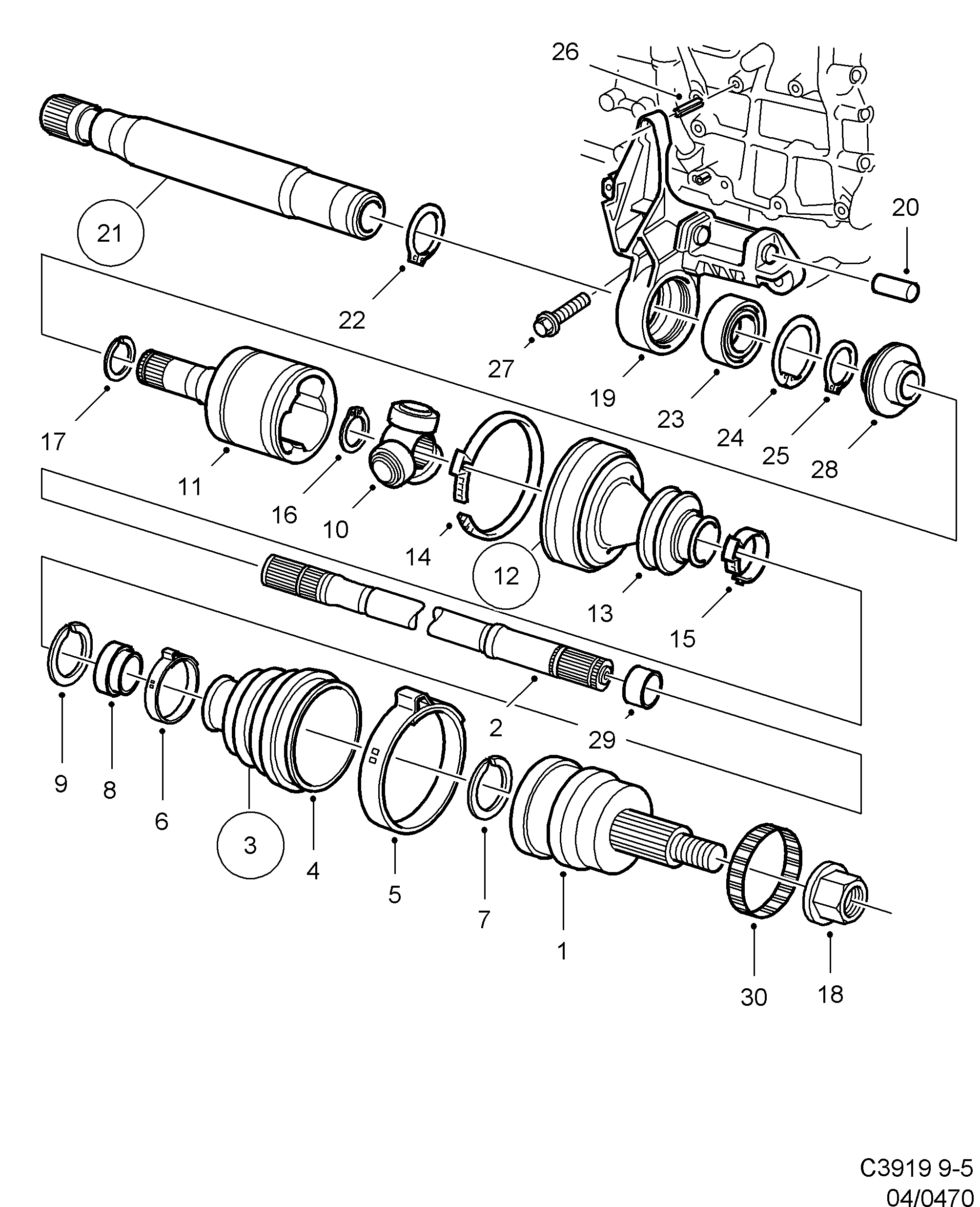

Saab 9-5 (9600) Outer universal joint diagram

Pos	Article	Part No.
1	Universal joint	5232897 (replaces 4686960)
1	Universal joint	5232897 (replaces 5171186)
1	Universal joint	5232897
2	Drive shaft	4686887
5	Clamp	4687018
6	Clamp	4687000
7	Lock ring	4686978
8	Spacer ring	4687091
9	Spring washer	4686994
10	Companion flange	4686895
11	Companion flange	4686911
14	Clamp	4686937
15	Clamp	4686952
16	Lock ring	4686903
17	Lock ring	4686929
18	Lock nut	8965360
18	Lock nut	5125018
19	Bearing bracket	5440425 (replaces 4777967)
19	Bearing bracket	5440425 (replaces 4926705)
19	Bearing bracket	5440425 (replaces 5258421)
19	Bearing bracket	5440425 (replaces 5443817)
19	Bearing bracket	5440433 (replaces 4777959)
19	Bearing bracket	5440433 (replaces 4926697)
19	Bearing bracket	5440433 (replaces 5258454)
19	Bearing bracket	5440433 (replaces 5443825)
19	Bearing bracket	5258371 (replaces 4578100)
19	Bearing bracket	5258371 (replaces 5258462)
19	Bearing bracket	5258371
20	Bushing	7593080
21	Intermediate shaft	4926580
22	Snap ring	92152060 (replaces 9378332)
23	Ball bearing	12785906 (replaces 9381450)
24	Snap ring	12788653 (replaces 7973738)
26	Cotter pin	7974074
27	Screw	11900368 (replaces 7978224)
27	Screw	7978299
28	Sealing ring	30566341 (replaces 4578241)
29	Deadener weight	4645594
30	Ring	12822141
