Saab 9-5 (9600) 1998-2010 Gear shift housing

Group 4 Transmission, section 430

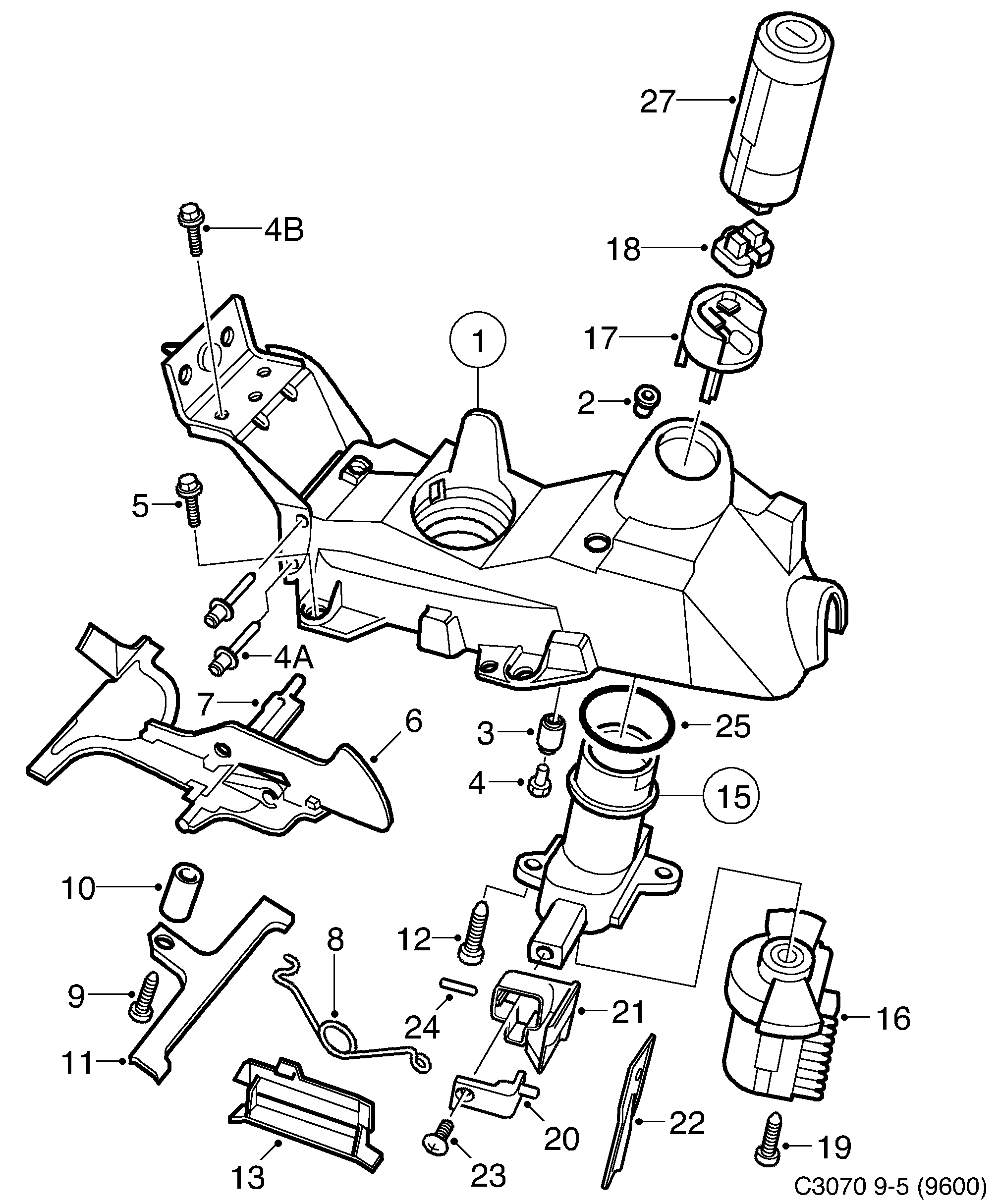

Saab 9-5 (9600) Gear shift housing diagram

Pos	Article	Part No.
1	Gear shift housing	4580031
1	Gear shift housing	5162037
2	Rivet nut	55562619 (replaces 4087250)
2	Rivet nut	55562619
3	Rubber bushing	4387346
4	Cap	4387452
4A	Blind rivet	92153058 (replaces 92150177)
4B	Screw	92153146 (replaces 7972607)
4B	Screw	92153146
5	Screw	92151601 (replaces 7978430)
5	Screw	92151601 (replaces 92150065)
5	Screw	92151601
6	Lock plate	4387320
7	Bracket	4387692
8	Spring	4387338
9	Lock screw	4087367
9	Lock screw	55562630
10	Spacer	4387908
11	Bracket	4387353
11	Bracket	55562620
12	Screw	92153218 (replaces 7982176)
13	Deflection limiter	4387684
15	Ignition switch	5160999 (replaces 4387742)
15	Ignition switch	5160999
15	Ignition switch	30584216 (replaces 5161427)
15	Ignition switch	30584216
16	Switch	4946307
16	Switch	4943692
17	Companion flange	4490728
18	Clutch	4490736
19	Screw	92151805 (replaces 8059230)
20	Companion flange	4387775
21	Carrier	4387759
22	Top label	4387767
23	Lock screw	4087268
24	Roll pin	7956154
25	O-ring	7972797
