Saab 9-5 (9600) 1998-2010 Gear rod

Group 4 Transmission, section 400

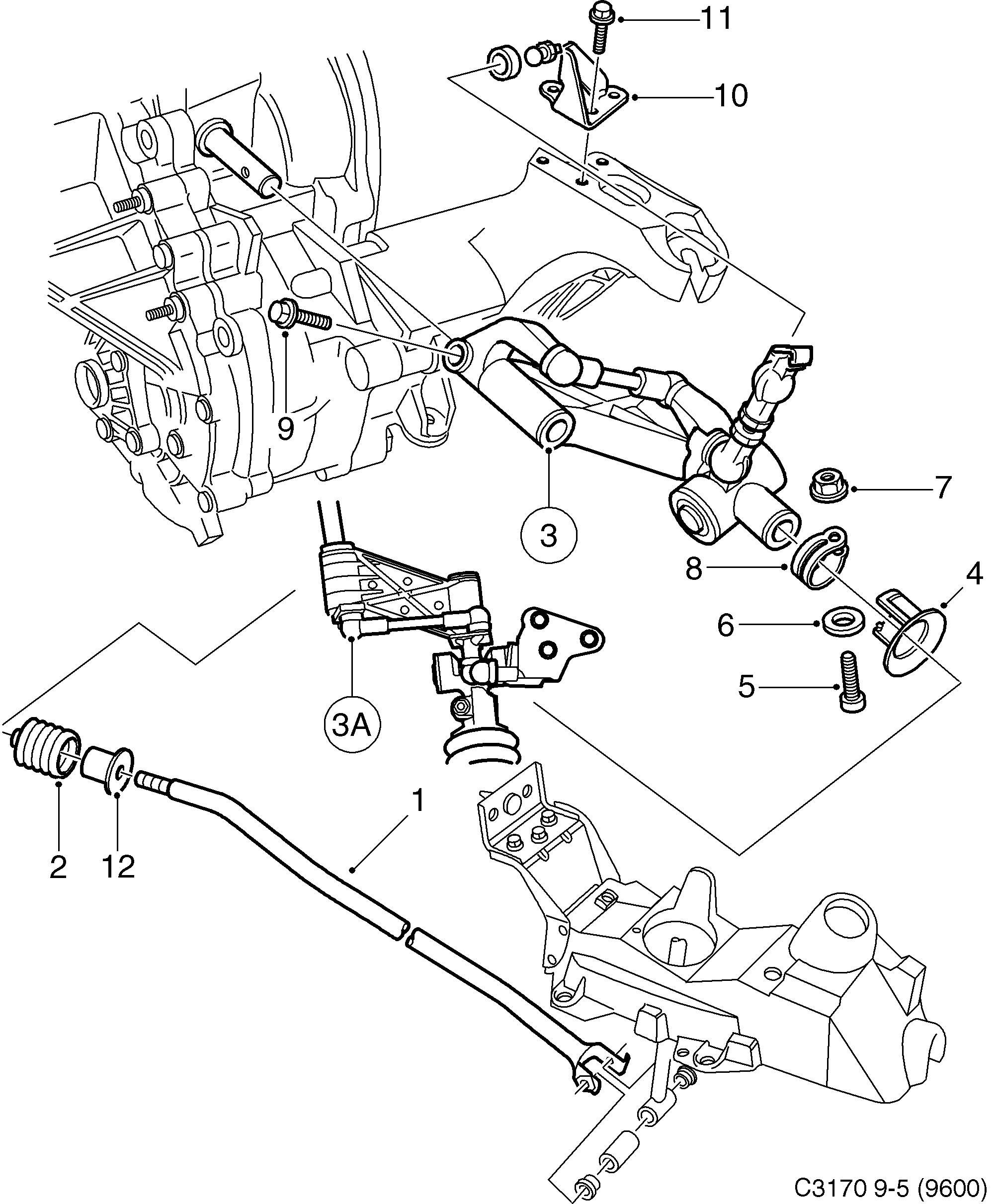

Saab 9-5 (9600) Gear rod diagram
PosArticlePart No.
1Gear rod55562621 (replaces 4578431)
1Rod55562621
1Gear rod55562631 (replaces 5445986)
1Rod55562631
2Boot5256607 (replaces 4282331)
2Boot5256607
2Boot5257787
3Linkage5164108 (replaces 4578282)
3Linkage5164108
3ALinkage55562606 (replaces 5447925)
3ALinkage55562606
4Cone fitting4282372
5Screw55562616 (replaces 7541907)
5Screw55562616
6Washer92153033 (replaces 8029985)
6Washer92153033
7Nut11066386 (replaces 7975501)
7Lock nut11066386 (replaces 92153052)
Nut11066386
8Clamp55562614 (replaces 9348533)
8Clamp55562614
9Screw55566034 (replaces 7978190)
9Hexagon screw11900367 (replaces 7978216)
9Screw21018773
9Screw55561611
9Washer55352122 (replaces 5447933)
10Bracket4580197
10Bracket5164348
11Screw11900354 (replaces 7978109)
12Seal4926663
