Saab 9-5 (9600) 1998-2010 Differential

Group 4 Transmission, section 340

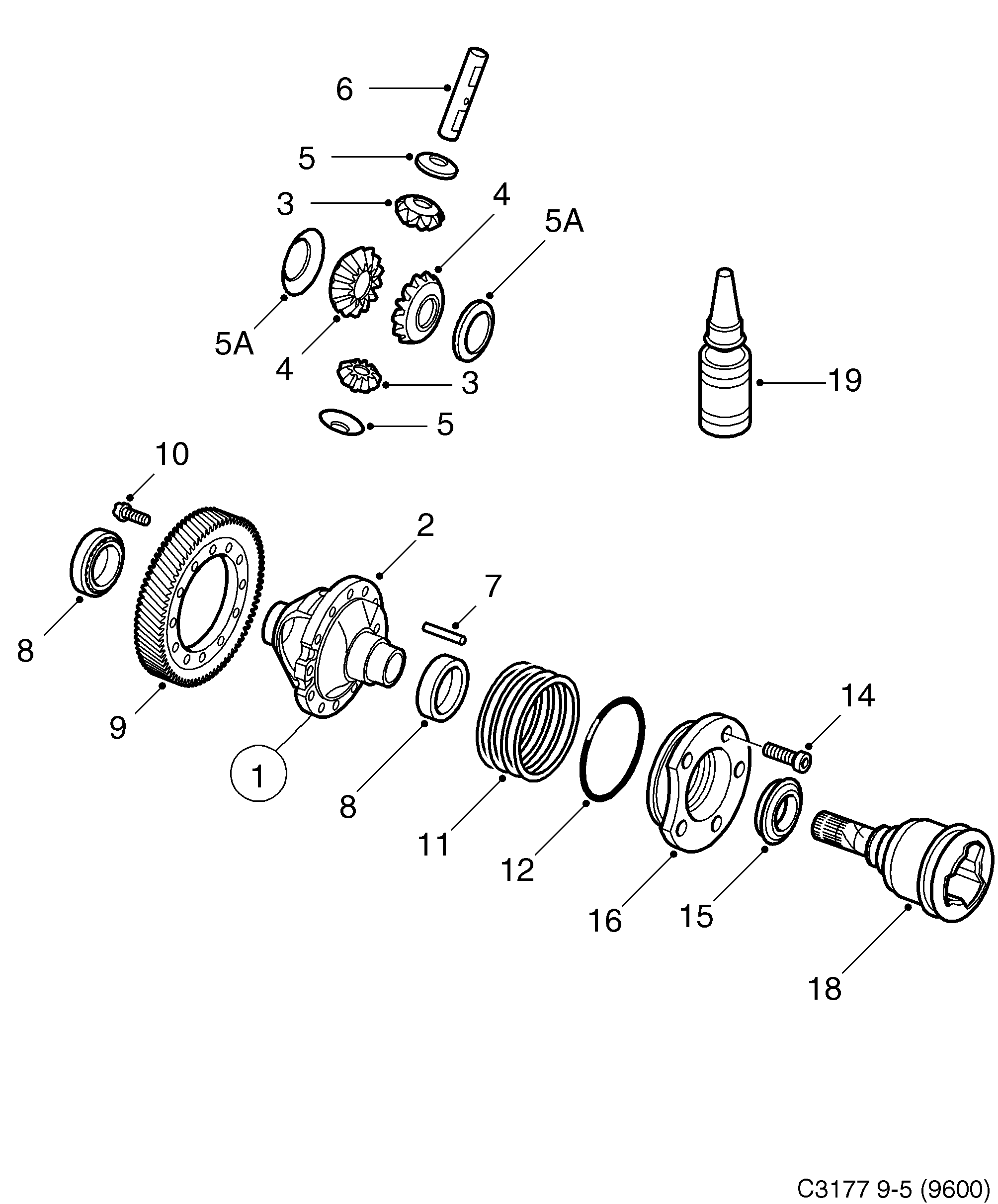

Saab 9-5 (9600) Differential diagram
PosArticlePart No.
1Differential90490986 (replaces 8781908)
1Differential90490986
2Differential housing8744393
2Differential housing90490812
4Differential pinion12792573
5Washer90490816 (replaces 8731788)
5Washer90490816
5Washer55560725
5AWasher55560724 (replaces 8745614)
5AWasher55560724 (replaces 12755080)
5AWasher55560724
6Differential shaft12755081
7Roll pin30563333
8Roller bearing12788353 (replaces 8734568)
8Roller bearing12788353 (replaces 5257928)
8Roller bearing12788353 (replaces 90490865)
9Gear55354670 (replaces 8749012)
9Gear90490907 (replaces 5257993)
9Gear90490907
9Gear55354670
10Screw55562646 (replaces 4685350)
10Screw55562646 (replaces 93176738)
10Torx screw55562646
11Adjusting washer90511232 (replaces 8734618)
11Adjusting washer90511232
11Adjusting washer90511233 (replaces 8734626)
11Adjusting washer90511233
11Adjusting washer90511234 (replaces 8734634)
11Adjusting washer90511234
11Adjusting washer90511235 (replaces 8734642)
11Adjusting washer90511235
11Adjusting washer90541204 (replaces 8742447)
11Adjusting washer90541204
12O-ring90486232 (replaces 8047144)
12O-ring90486232
14Screw92151830 (replaces 8059792)
14Screw92151830 (replaces 90511240)
14Screw92151830
15Seal55353153 (replaces 8732117)
15Seal12755013 (replaces 8749046)
15Seal55353153 (replaces 5448469)
15Seal55353153
16Bearing seat90543263 (replaces 8742876)
16Bearing seat90543263
19Flange sealant90542117
