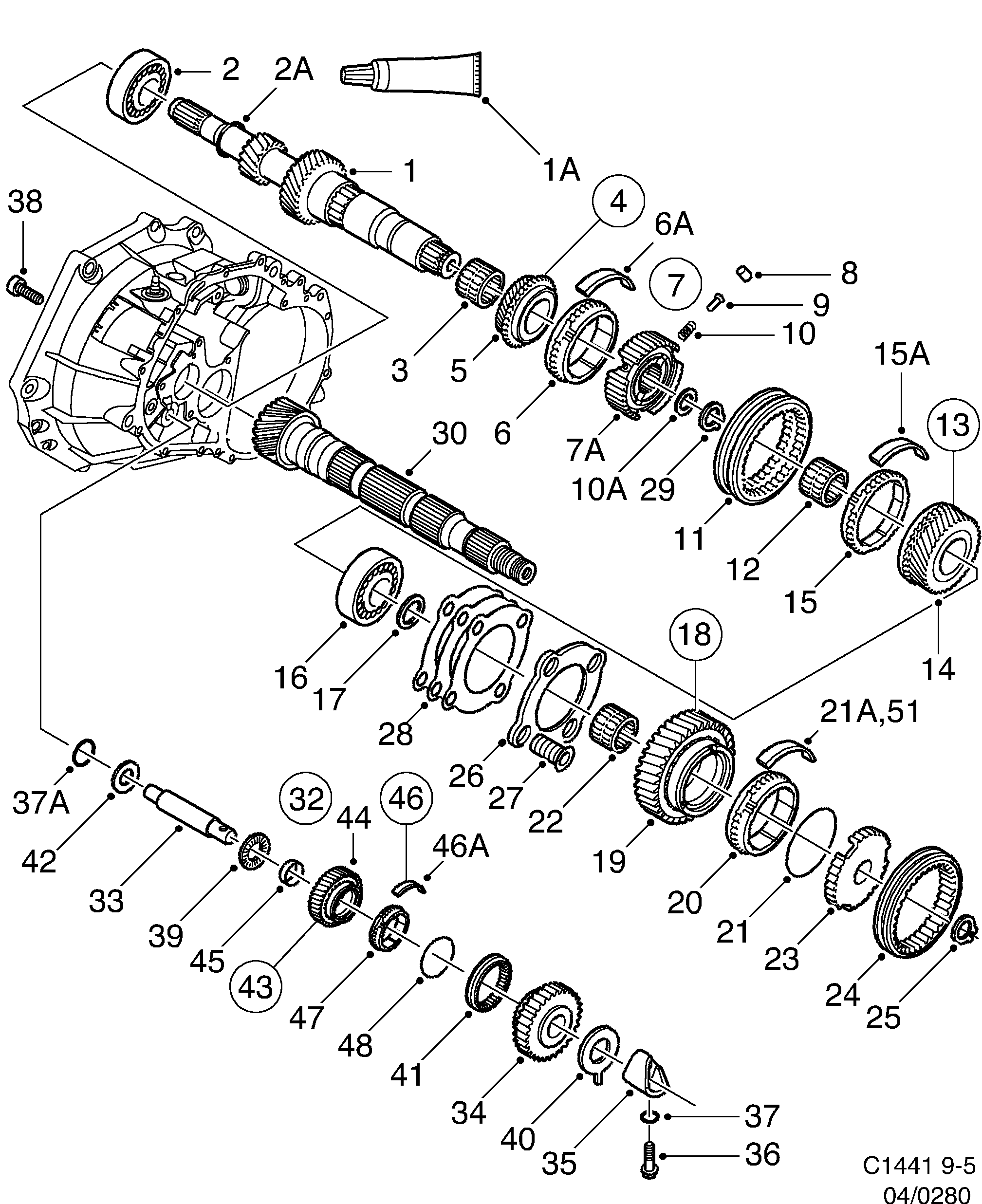

Group 4 Transmission, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Shaft | 12791536 (replaces 8748956) |
| 1 | Shaft | 12791536 (replaces 8747917) |
| 1 | Shaft | 12791536 (replaces 5258082) |
| 1 | Shaft | 90490892 (replaces 5444021) |
| 1 | Shaft | 90490892 |
| 1A | Grease | 90513210 (replaces 8781684) |
| 2 | Roller bearing | 90490861 (replaces 8719163) |
| 2 | Roller bearing | 90490861 (replaces 5257936) |
| 2 | Roller bearing | 90490861 |
| 3 | Needle bearing | 90490856 (replaces 8731150) |
| 3 | Needle bearing | 90490856 (replaces 5257555) |
| 3 | Needle bearing | 90490856 |
| 4 | Gear | 8781981 |
| 4 | Gear | 5446588 |
| 4 | Gear | 55352414 (replaces 5446661) |
| 4 | Gear | 55352414 |
| 5 | Gear | 8742199 |
| 5 | Gear | 90490962 (replaces 5445432) |
| 5 | Gear | 90490962 |
| 6 | Synchromesh | 90490974 (replaces 8740185) |
| 6 | Synchromesh | 12755212 (replaces 5160296) |
| 6 | Synchromesh | 90490974 (replaces 5445465) |
| 6A | Leaf spring | 90490860 (replaces 8743791) |
| 6A | Leaf spring | 90490860 |
| 7 | Hub | 55352403 (replaces 5257688) |
| 7 | Hub | 55352403 (replaces 5446471) |
| 7A | Hub | 90490955 (replaces 8747909) |
| 7A | Hub | 90490955 (replaces 5443908) |
| 7A | Hub | 90490955 |
| 8 | Roller | 90511265 (replaces 8716839) |
| 8 | Roller | 90511265 |
| 9 | Plunger | 90511266 (replaces 8716821) |
| 9 | Plunger | 90511266 |
| 10 | Compression spring | 90511267 (replaces 8723330) |
| 10 | Compression spring | 55354967 |
| 10A | Washer | 90543241 (replaces 8747925) |
| 10A | Washer | 90543241 |
| 11 | Sleeve | 12755210 (replaces 8736597) |
| 11 | Sleeve | 12755210 |
| 12 | Needle bearing | 90490857 (replaces 8731192) |
| 12 | Needle bearing | 90490857 (replaces 5257563) |
| 12 | Needle bearing | 90490857 |
| 13 | Gear | 90511074 (replaces 8781452) |
| 13 | Gear | 90511074 |
| 13 | Gear | 5446604 |
| 13 | Gear | 55352415 (replaces 5446679) |
| 14 | Gear | 8737447 |
| 14 | Gear | 90490963 (replaces 5445440) |
| 14 | Gear | 90490963 |
| 15 | Synchromesh | 90490974 |
| 16 | Roller bearing | 90490868 (replaces 8735490) |
| 16 | Roller bearing | 90490868 (replaces 5257944) |
| 16 | Roller bearing | 90490868 |
| 17 | Snap ring | 90511077 (replaces 8721946) |
| 17 | Snap ring | 90511077 |
| 18 | Gear | 9117777 (replaces 8781916) |
| 18 | Gear | 4614152 |
| 18 | Gear | 5446596 |
| 18 | Gear | 55352416 (replaces 5446687) |
| 19 | Gear | 12755206 (replaces 8747172) |
| 19 | Gear | 12755206 (replaces 5160411) |
| 19 | Gear | 55352084 (replaces 5445606) |
| 19 | Gear | 55352084 |
| 20 | Synchromesh | 9117778 (replaces 8745606) |
| 20 | Synchromesh | 12755207 (replaces 5161005) |
| 20 | Synchromesh | 90490977 (replaces 5445481) |
| 20 | Synchromesh | 90490977 |
| 21 | Spring ring | 90511081 (replaces 8735441) |
| 21 | Spring ring | 90511081 |
| 21A | Leaf spring | 12791537 (replaces 8743809) |
| 21A | Leaf spring | 12791537 |
| 22 | Needle bearing | 90511083 (replaces 8721953) |
| 22 | Needle bearing | 90511083 |
| 23 | Hub | 93192610 (replaces 8744997) |
| 23 | Hub | 93192610 (replaces 9117779) |
| 23 | Hub | 93192610 |
| 24 | Sleeve | 90511264 (replaces 8737074) |
| 24 | Sleeve | 93192610 (replaces 5161013) |
| 24 | Sleeve | 93192610 (replaces 5259353) |
| 24 | Sleeve | 93192610 (replaces 12755239) |
| 25 | Snap ring | 90511085 (replaces 8734071) |
| 25 | Snap ring | 90511085 |
| 26 | Support | 90511104 (replaces 8731333) |
| 26 | Support | 90511104 |
| 27 | Screw | 90511105 (replaces 8741506) |
| 27 | Screw | 90511105 |
| 28 | Adjusting washer | 90511106 (replaces 8731366) |
| 28 | Adjusting washer | 90511106 |
| 28 | Adjusting washer | 90511107 (replaces 8731374) |
| 28 | Adjusting washer | 90511107 |
| 28 | Adjusting washer | 90511108 (replaces 8731382) |
| 28 | Adjusting washer | 90511108 |
| 28 | Adjusting washer | 90511273 (replaces 8742421) |
| 28 | Adjusting washer | 90511273 |
| 28 | Adjusting washer | 90511274 (replaces 8742439) |
| 28 | Adjusting washer | 90511274 |
| 29 | Lock ring | 90511109 (replaces 8719189) |
| 29 | Lock ring | 90511109 |
| 32 | Gear | 8746372 |
| 32 | Gear | 55557738 (replaces 5446273) |
| 32 | Gear | 5445317 |
| 32 | Gear | 55352410 (replaces 5446323) |
| 32 | Gear | 55352410 |
| 33 | Shift rail | 90541189 (replaces 8744237) |
| 33 | Shift rail | 90541189 |
| 34 | Gear | 90511112 (replaces 8736399) |
| 34 | Gear | 90511112 |
| 35 | Support | 90511113 (replaces 8740672) |
| 35 | Support | 90511113 |
| 36 | Flange screw | 55561609 (replaces 7972714) |
| 36 | Screw | 55561609 |
| 37 | O-ring | 90541193 (replaces 7967573) |
| 37 | O-ring | 90541193 |
| 38 | Screw | 92151830 (replaces 8059792) |
| 38 | Screw | 92151830 (replaces 90511240) |
| 38 | Screw | 92151830 |
| 39 | Needle bearing | 90490855 (replaces 8734659) |
| 39 | Needle bearing | 90490855 (replaces 5257548) |
| 39 | Needle bearing | 90490855 |
| 40 | Thrust washer | 90511118 (replaces 8740680) |
| 40 | Thrust washer | 90511118 |
| 41 | Sleeve | 90541191 (replaces 8744153) |
| 41 | Sleeve | 90490968 (replaces 5445523) |
| 41 | Sleeve | 90490968 |
| 42 | Spacer washer | 90541192 (replaces 8744252) |
| 42 | Spacer washer | 90541192 |
| 43 | Gear | 90544045 (replaces 8781882) |
| 43 | Reverse gear | 90544045 |
| 43 | Gear | 90490953 (replaces 5444625) |
| 43 | Reverse gear | 93192262 |
| 43 | Reverse gear | 55557738 |
| 44 | Reverse gear | 8747016 |
| 44 | Reverse gear | 90490980 (replaces 5445507) |
| 44 | Reverse gear | 90490894 (replaces 5444013) |
| 44 | Reverse gear | 90490966 (replaces 5445648) |
| 44 | Reverse gear | 90490966 |
| 45 | Bushing | 30549335 (replaces 8741241) |
| 45 | Bushing | 30549335 |
| 46 | Synchromesh | 5257910 |
| 46 | Synchromesh | 55352409 (replaces 5446430) |
| 46 | Synchromesh | 8743098 |
| 46 | Synchromesh | 5446281 |
| 46 | Synchromesh | 55352080 |
| 46A | Leaf spring | 12791541 (replaces 5257217) |
| 46A | Leaf spring | 12791541 |
| 47 | Synchromesh | 90511115 (replaces 8740169) |
| 47 | Synchronizing ring | 90511115 |
| 47 | Synchromesh | 90490971 |
| 48 | Spring ring | 90511116 (replaces 8729964) |
| 48 | Spring ring | 90511116 |
