Saab 9-5 (9600) 2002-2010 Pedal, master cylinder

Group 4 Transmission, section 140

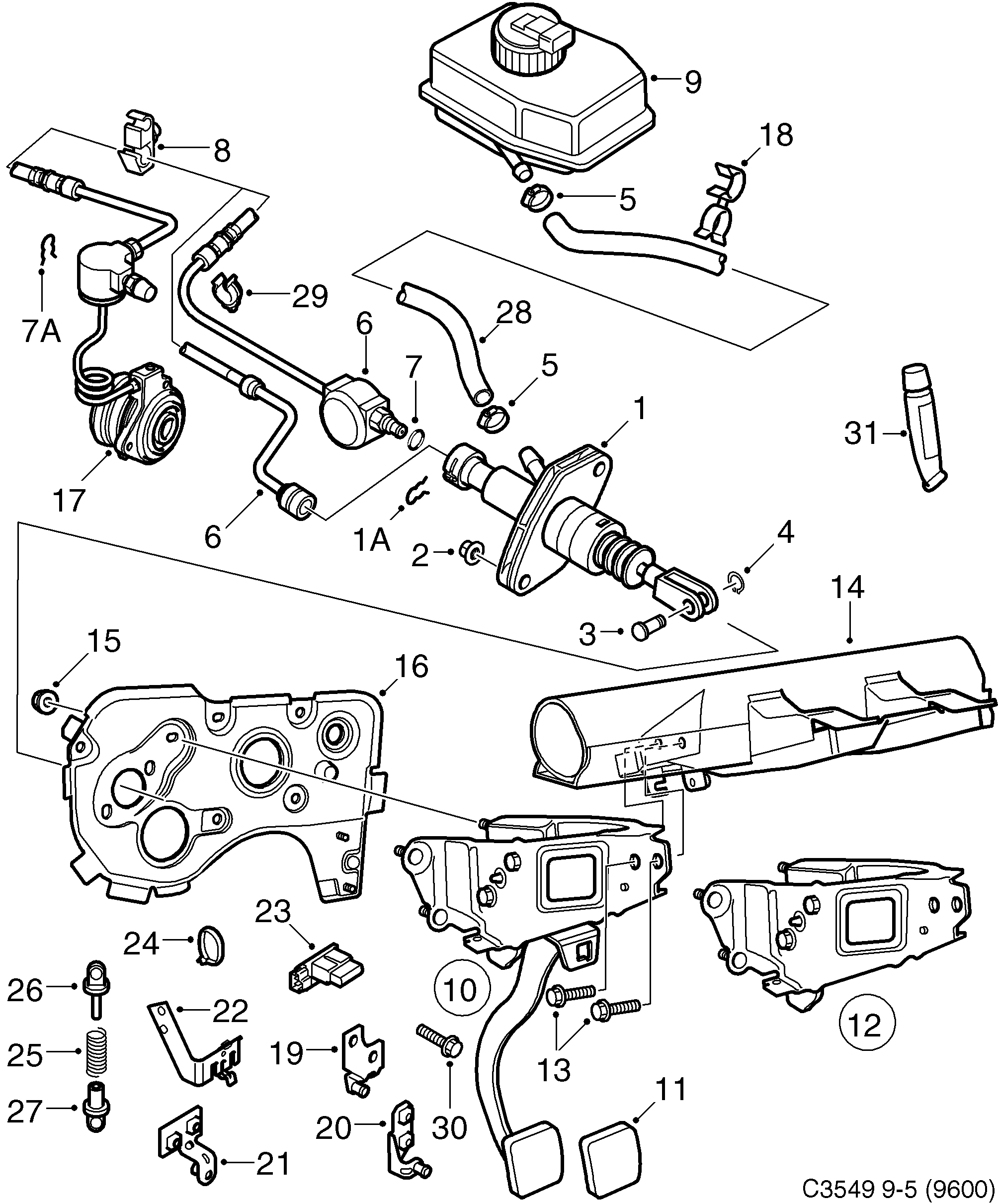

Saab 9-5 (9600) Pedal, master cylinder diagram

Pos	Article	Part No.
1	Clutch cylinder	90490763 (replaces 5258728)
1	Clutch master cylinder	90490763
1	Clutch cylinder	90490740 (replaces 5163480)
1	Clutch master cylinder	90490740
1A	Lock ring	4940722
2	Nut	92150143 (replaces 7971922)
2	Nut	92150143
3	Pin	90222680 (replaces 4345435)
4	Clip	90278102 (replaces 4345443)
5	Hose clamp	90530642 (replaces 92151162)
5	Hose clamp	90530642
6	Clutch hose	5254909
6	Clutch hose	5259726
6	Clutch hose	5446158
6	Clutch hose	5256599
6	Clutch hose	5259734
6	Clutch hose	5446166
7	O-ring	4940706
7A	Lock ring	4940714
8	Pipe clip	90189770 (replaces 4579363)
8	Clip	90189770
10	Bracket	24405518 (replaces 5063649)
10	Bracket	24405518
10	Bracket	90539467 (replaces 4687638)
10	Bracket	90539467
10	Bracket	4839692
11	Pedal pad	90468789 (replaces 4688586)
11	Pedal pad	90468789
12	Bracket	90495678 (replaces 4565610)
12	Bracket	90495678
12	Bracket	4565628
12	Bracket	90495679
13	Screw	55566034 (replaces 7978190)
15	Nut	90191908 (replaces 4345419)
18	Clamp	7399652
19	Bracket	4686713
20	Bracket	4686705
21	Bracket	4686721
22	Bracket	4839684
24	Tie strap	11900513
25	Spring	4686747
25	Spring	12767174
26	Spring guide	4687901
27	Spring guide	4000394
28	Clutch hose	5258736
28	Clutch hose	5163506
29	Clamp	9126551 (replaces 5258553)
29	Clip	9126551
30	Screw	11900354 (replaces 7978109)
30	Screw	11900354 (replaces 92150002)
31	Silicon grease	90167353
