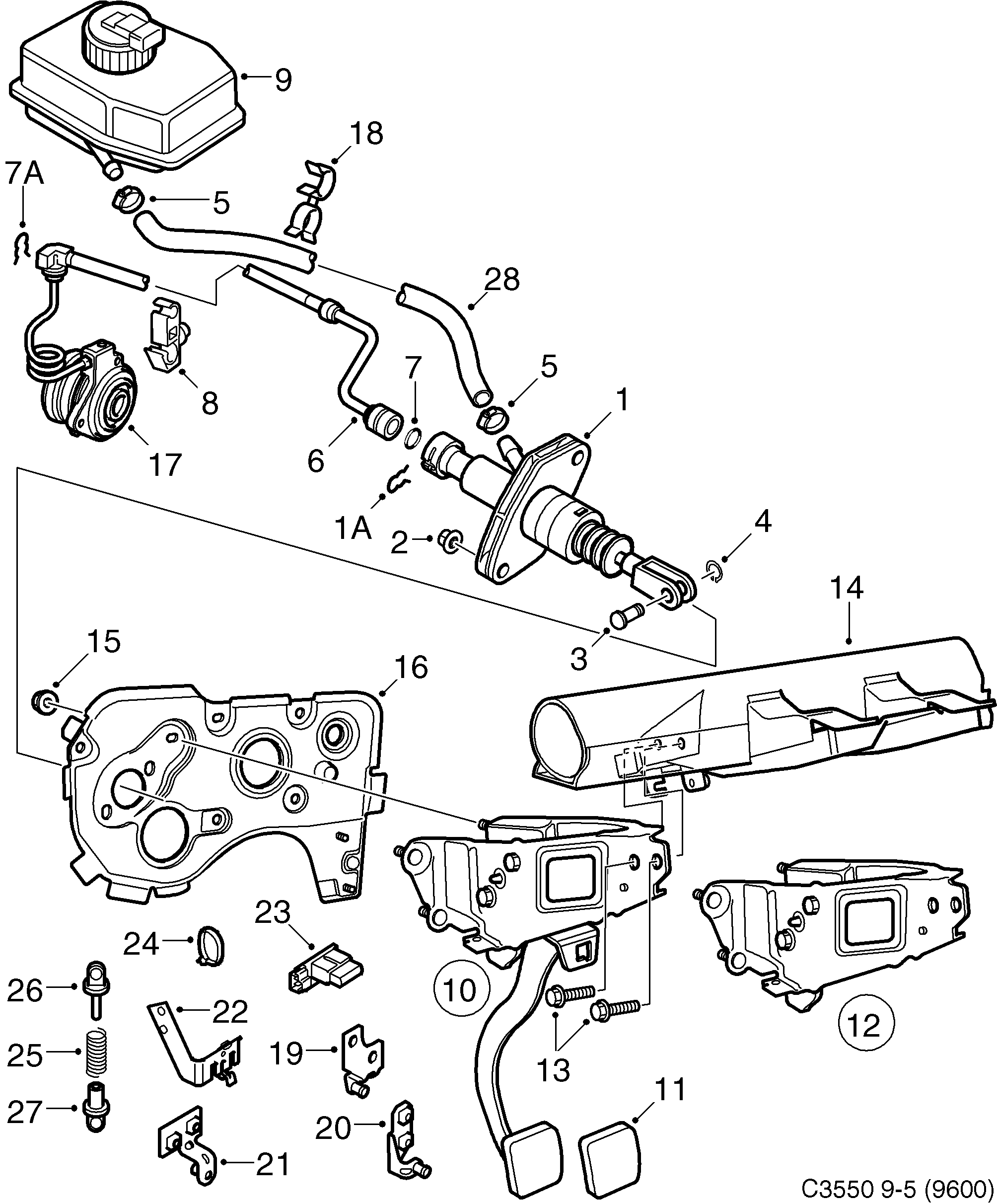

Group 4 Transmission, section 130
| Pos | Article | Part No. |
|---|---|---|
| 1 | Clutch cylinder | 4926952 (replaces 4579637) |
| 1 | Clutch cylinder | 4926952 |
| 1 | Clutch cylinder | 90490740 (replaces 5163480) |
| 1A | Lock ring | 4940722 |
| 2 | Nut | 92150143 (replaces 7971922) |
| 3 | Pin | 90222680 (replaces 4345435) |
| 4 | Clip | 90278102 (replaces 4345443) |
| 5 | Hose clamp | 90530642 (replaces 7977697) |
| 6 | Clutch hose | 4926960 (replaces 4926408) |
| 6 | Clutch hose | 4926960 |
| 6 | Clutch hose | 4926978 (replaces 4926416) |
| 6 | Clutch hose | 4926978 |
| 7 | O-ring | 4940706 |
| 7A | Lock ring | 4940714 |
| 8 | Pipe clip | 90189770 (replaces 4579363) |
| 10 | Bracket | 4687596 |
| 10 | Bracket | 24405518 (replaces 5063649) |
| 10 | Bracket | 90539467 (replaces 4687638) |
| 10 | Bracket | 4839692 |
| 11 | Pedal pad | 90468789 (replaces 4688586) |
| 12 | Bracket | 90495678 (replaces 4565610) |
| 12 | Bracket | 4565628 |
| 12 | Bracket | 90495679 |
| 13 | Screw | 55566034 (replaces 7978190) |
| 15 | Nut | 90191908 (replaces 4345419) |
| 18 | Clamp | 7399652 |
| 19 | Bracket | 4686713 |
| 20 | Bracket | 4686705 |
| 21 | Bracket | 4686721 |
| 22 | Bracket | 4839684 |
| 24 | Tie strap | 11900513 |
| 25 | Spring | 4686747 |
| 26 | Spring guide | 4687901 |
| 27 | Spring guide | 4000394 |
| 28 | Clutch hose | 5163498 |
| 28 | Clutch hose | 5163506 |
