Saab 9-5 (9600) 1998-2010 Transmission

Group 4 Transmission, section 1200

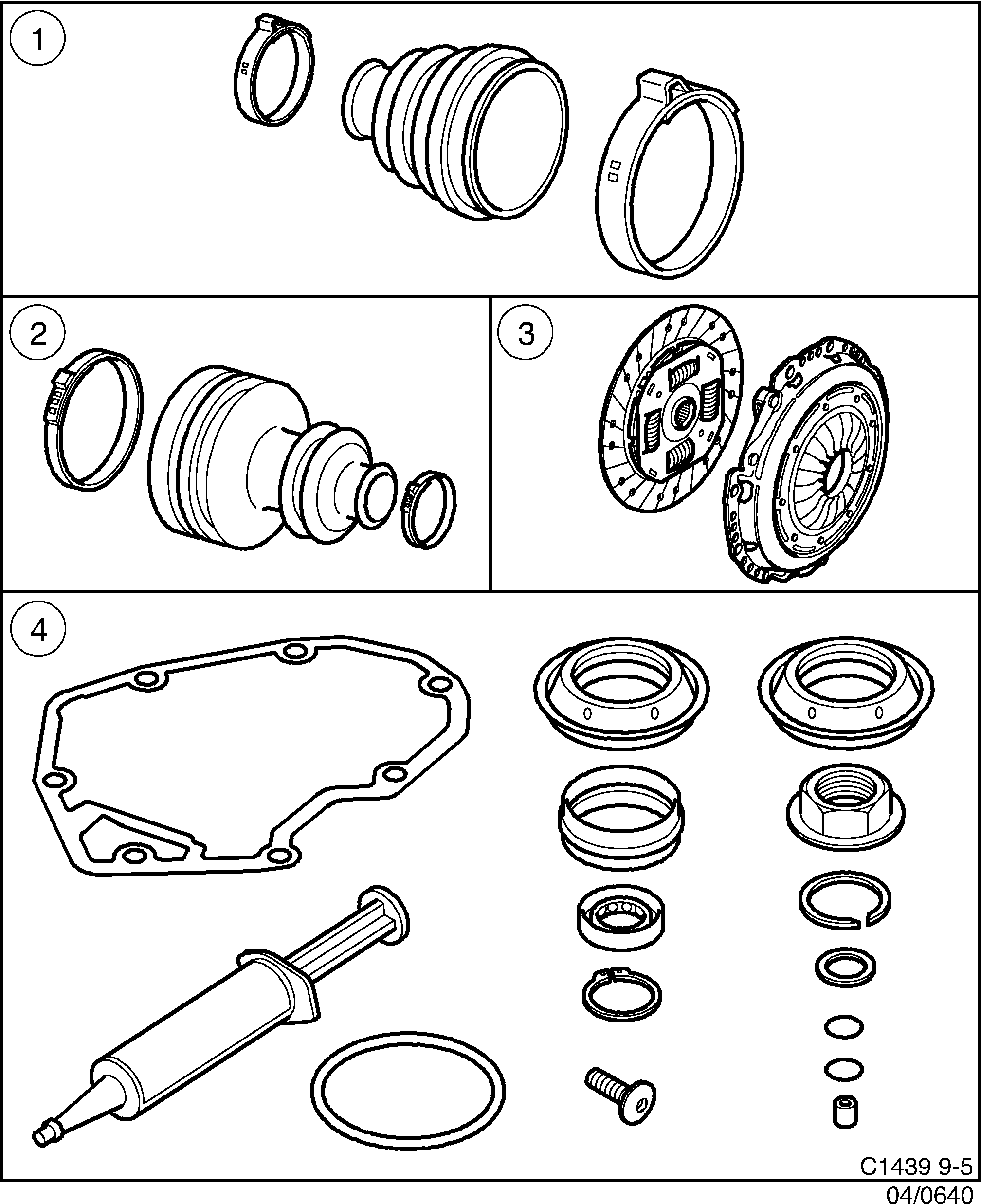

Saab 9-5 (9600) Transmission diagram

Pos	Article	Part No.
1	Bellows kit	8994154
	Bellows	4686986
	Clamp	4687018
	Clamp	4687000
1	Bellows kit	5390638
	Bellows	5390505
	Clamp	5390513
2	Bellows kit	8994170
	Bellows	4686945
	Clamp	4686937
	Clamp	4686952
2	Bellows kit	5390646
	Bellows	5390554
	Clamp	5390570
	Clamp	5390562
2	Bellows kit	5532775
	Bellows	5532734
	Bellows	5532783
	Clamp	5532742
	Clamp	5532759
3	Clutch kit	8781890
	Pressure plate	5337563 (replaces 8746711)
	Pressure plate	5337563
	Clutch disc	5448428 (replaces 8748857)
	Clutch disc	5448428
3	Clutch kit	4580346
	Pressure plate	5337571 (replaces 5160833)
	Pressure plate	5337571
	Clutch disc	5448436 (replaces 5160825)
	Clutch disc	5448436
	Pin	4685764
	Screw	55562121 (replaces 7967938)
3	Clutch kit	55562984 (replaces 5445861)
	Clutch disc	5440185
	Pressure plate	5445879
3	Clutch kit	55562984 (replaces 5448055)
	Clutch disc	5448048
	Pressure plate	5448063
3	Clutch kit	55560171
	Friction disc	55560171 (replaces 93187280)
	Pressure plate	93179220
4	Gasket kit	5440102
	Plug	90105651 (replaces 4387544)
	Gasket	12755014 (replaces 4940169)
	Nut	12755195 (replaces 5125323)
	O-ring	90541193 (replaces 7967573)
	O-ring	90486232 (replaces 8047144)
	Sintered compact	90512565 (replaces 8701658)
	Snap ring	90511077 (replaces 8721946)
	Snap ring	90511085 (replaces 8734071)
	Sleeve	90511220 (replaces 8734477)
	Gasket	90486235 (replaces 8734824)
	Seal	90511282 (replaces 8741878)
	Seal	12755013 (replaces 8749046)
	Flange sealant	90297970
