Saab 9-5 (9600) 2002-2010 Controls in gear box

Group 4 Transmission, section 1050

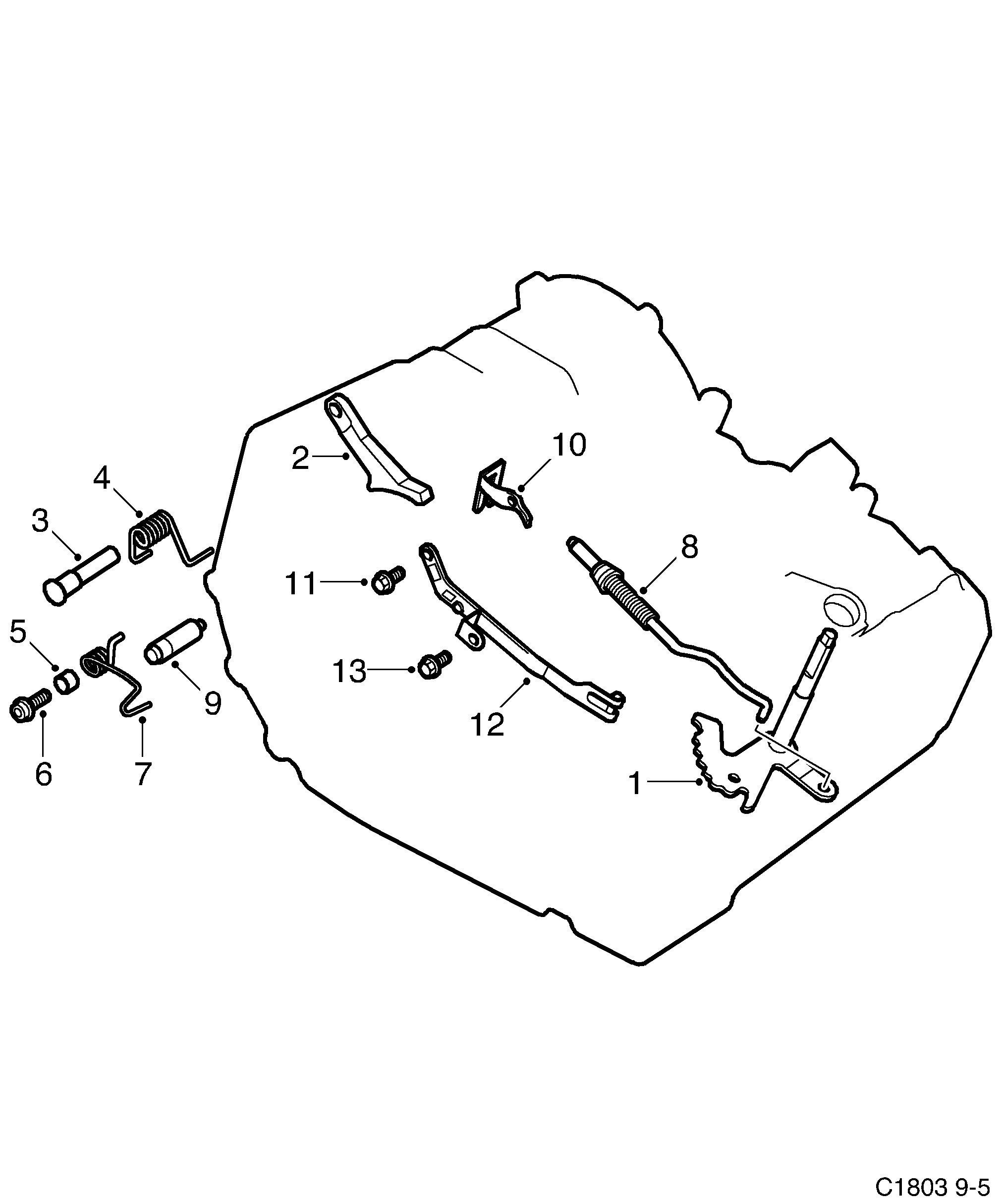

Saab 9-5 (9600) Controls in gear box diagram
PosArticlePart No.
1Lever93178064 (replaces 5441720)
2Stop5250501
2Stop93178175 (replaces 5447537)
3Pin90487789 (replaces 5250519)
4Spring9119577 (replaces 5250527)
5Sleeve90348762 (replaces 5250535)
6Screw90541817 (replaces 5250550)
7Spring93178115 (replaces 5441787)
8Shaft9119579 (replaces 5250576)
9Pin9119580 (replaces 5250584)
10Fixation plate90541820 (replaces 5250592)
11Screw5164546
12Spring9119581 (replaces 5250600)
13Screw55352202 (replaces 5164470)
