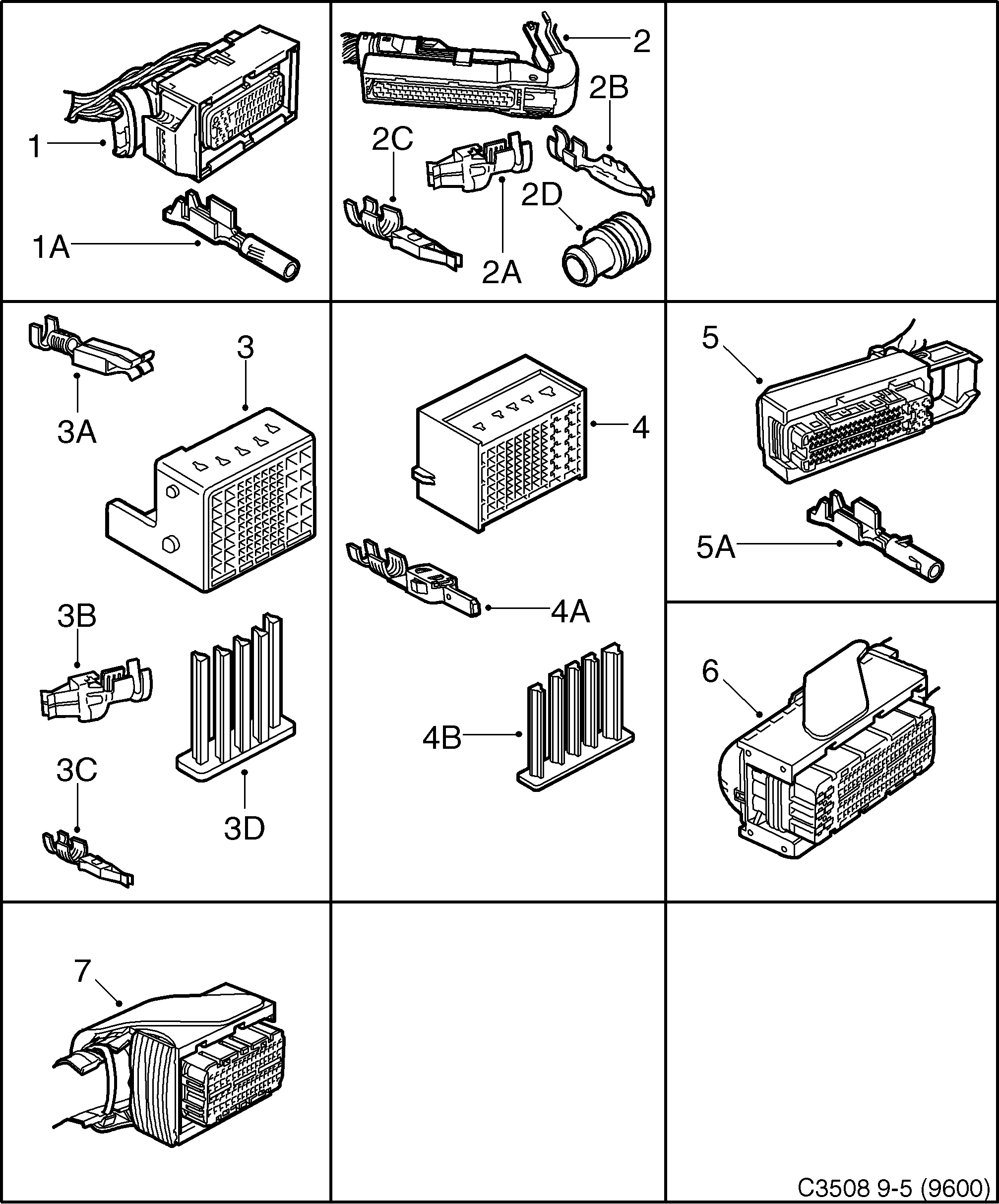

Group 3b Electrical, connector, section 530
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 5351226 |
| 1A | Cable terminal | 12790340 (replaces 5351663) |
| 1B | Cover | 5351242 |
| 1C | Locking | 5351259 |
| 1 | Connector housing | 5351234 |
| 2 | Connector housing | 4176616 |
| 2A | Cable terminal | 12789796 (replaces 9120957) |
| 2A | Cable terminal | 4061586 |
| 2B | Cable terminal | 12790414 (replaces 4115499) |
| 2C | Cable terminal | 4354353 |
| 2C | Cable terminal | 4669602 |
| 2D | Seal | 4061966 |
| 2D | Seal | 12798372 (replaces 4061974) |
| 2D | Seal | 4352928 |
| 2D | Seal | 12798370 (replaces 4061958) |
| 2D | Seal | 12798378 (replaces 4354320) |
| 2D | Seal | 4537213 |
| 3 | Connector housing | 4693016 |
| 3A | Cable terminal | 30520557 (replaces 9120791) |
| 3B | Cable terminal | 4063087 |
| 3D | Locking | 4693024 |
| 4 | Connector housing | 4693057 |
| 4A | Cable terminal | 12790614 (replaces 4115457) |
| 4A | Cable terminal | 4115580 |
| 4A | Cable terminal | 12789934 (replaces 4115077) |
| 4A | Cable terminal | 4115275 |
| 5 | Connector housing | 4949186 |
| 5A | Cable terminal | 5249305 |
| 5A | Cable terminal | 4692331 (replaces 4061578) |
| 5A | Cable terminal | 5249297 |
| 5B | Cover | 4949194 |
| 5C | Locking | 4949202 |
| 6 | Connector housing | 13125816 |
| 7 | Connector housing | 13165094 |
