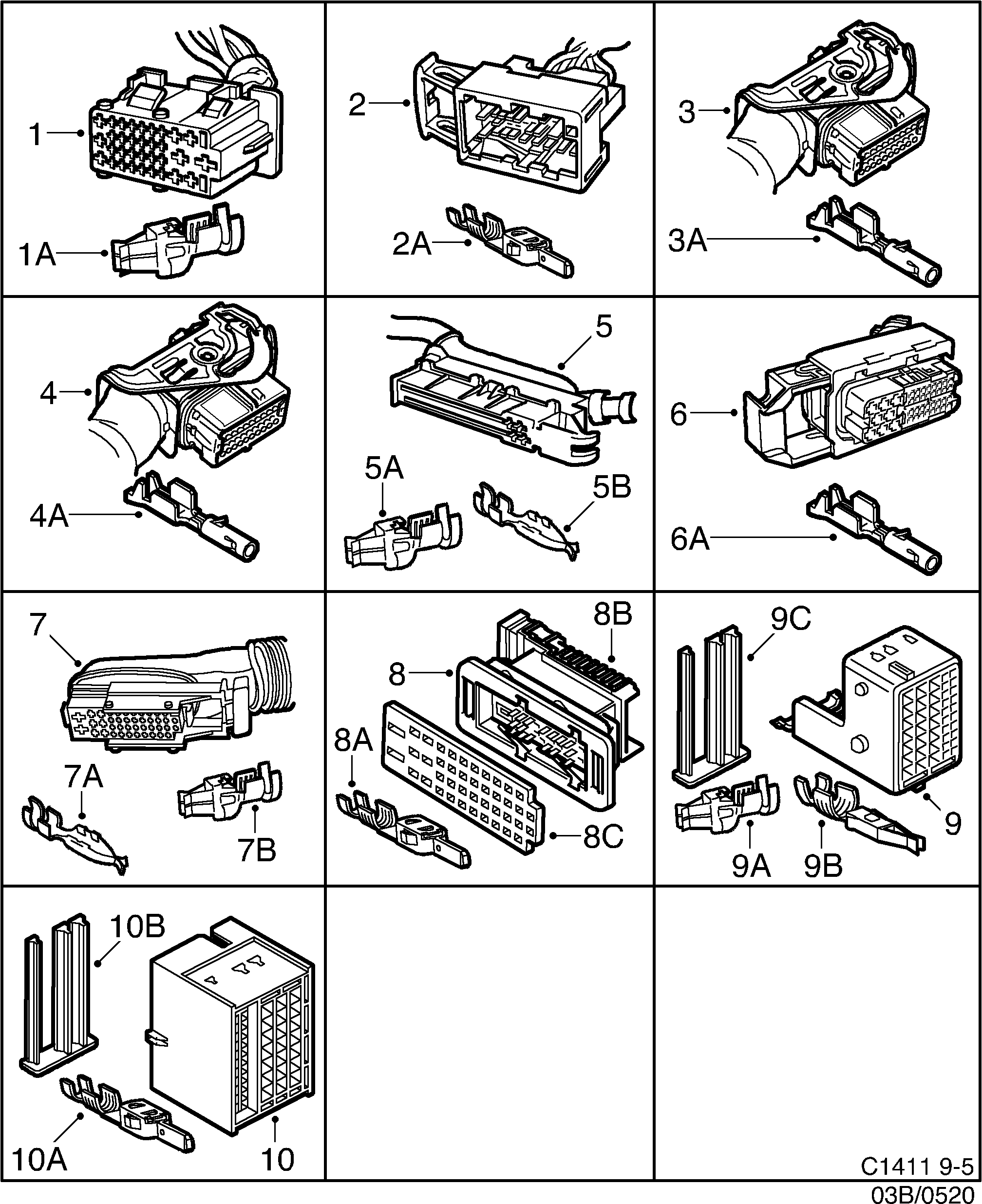

Group 3b Electrical, connector, section 520
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 5241435 (replaces 4173803) |
| 1A | Cable terminal | 12789796 (replaces 9120957) |
| 2 | Connector housing | 12798080 (replaces 4173852) |
| 2A | Cable terminal | 4115580 |
| 3 | Connector housing | 5351382 |
| 3A | Cable terminal | 12790409 (replaces 5351978) |
| Cover | 12789364 (replaces 5351374) | |
| Locking | 5351366 | |
| 4 | Connector housing | 5351408 |
| 5 | Connector housing | 9565045 |
| 5B | Cable terminal | 12790467 (replaces 4063970) |
| 6 | Connector housing | 4949145 |
| 6A | Cable terminal | 5249305 |
| 6A | Cable terminal | 4692331 (replaces 4061578) |
| 6A | Cable terminal | 5249297 |
| Cover | 4949152 | |
| Locking | 4949160 | |
| 7 | Connector housing | 12797694 (replaces 4811212) |
| 7A | Cable terminal | 4538229 |
| 7B | Cable terminal | 4061586 |
| Locking | 12797692 (replaces 4737029) | |
| 8 | Connector housing | 12797699 (replaces 4811238) |
| 8A | Cable terminal | 4535548 |
| 8B | Locking | 12797697 (replaces 4737052) |
| 8C | Seal | 4587713 |
| 9 | Connector housing | 4692984 |
| 9A | Cable terminal | 12790614 (replaces 4115457) |
| 9B | Cable terminal | 12790414 (replaces 4115499) |
| 9C | Locking | 4692992 |
| 9 | Connector housing | 4693008 |
| 10 | Connector housing | 4693032 |
| 10 | Connector housing | 4693040 |
