Saab 9-5 (9600) 2002-2010 Connector housing etc 18-pin - 32-pin

Group 3b Electrical, connector, section 510

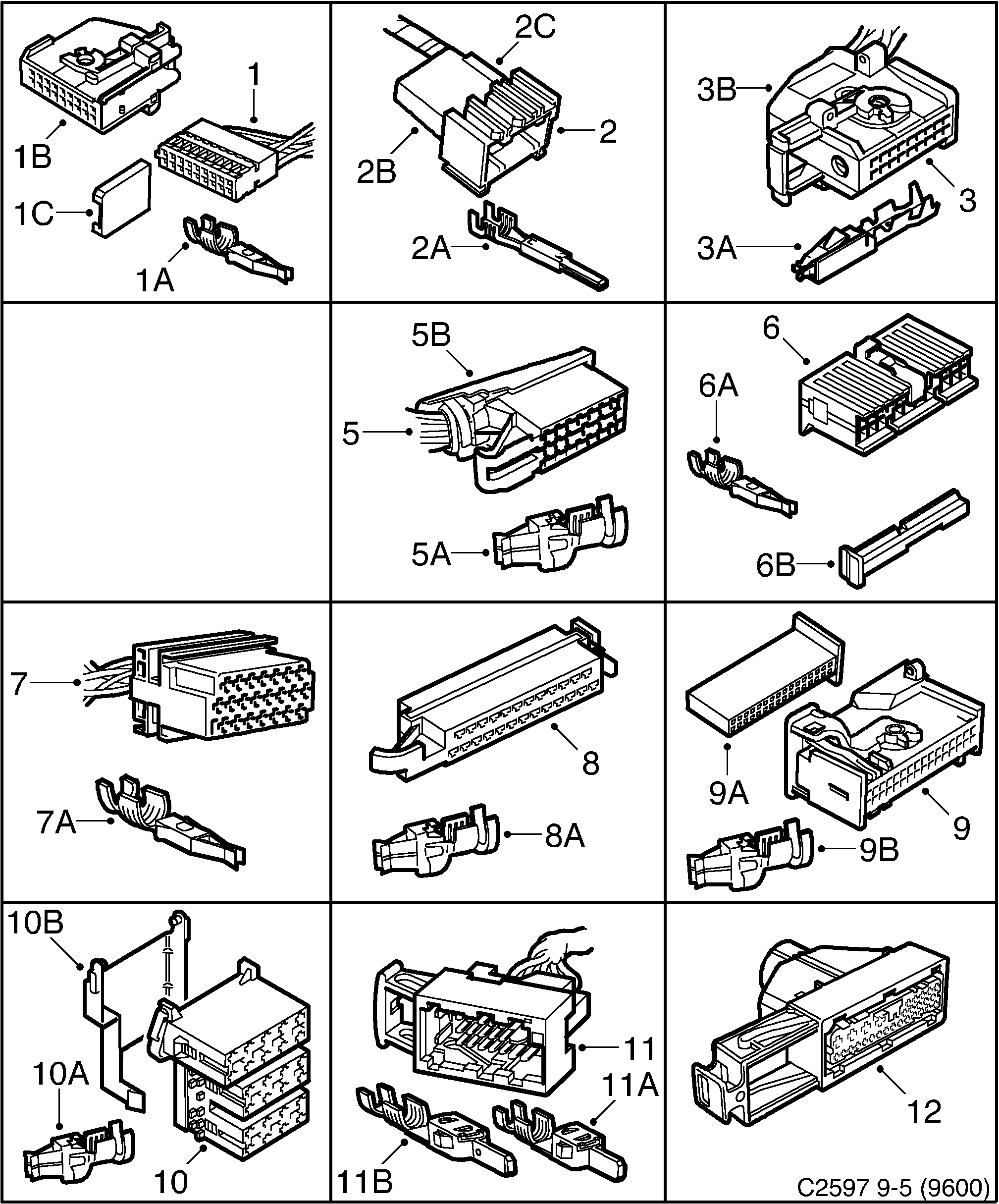

Saab 9-5 (9600) Connector housing etc 18-pin - 32-pin diagram

Pos	Article	Part No.
1	Connector housing	5243167
1A	Cable terminal	12789765 (replaces 5351739)
1B	Cover	5243175
1C	Locking	5247457
2	Connector housing	5243142
2A	Cable terminal	5351788
2B	Cover	5243159
2C	Locking	5243597
3B	Cover	5248851
5	Connector housing	4060893
5A	Cable terminal	30520557 (replaces 9120791)
5B	Cover	4067617
6	Connector housing	4739181
6A	Cable terminal	12790414 (replaces 4115499)
6B	Locking	4739199
7	Connector housing	4223624
8	Connector housing	4176186
8A	Cable terminal	12789796 (replaces 9120957)
9	Connector housing	12798073
9A	Cover	12798074
10	Connector housing	4587846
10B	Cover	4587853
11	Connector housing	4806873
11A	Cable terminal	4115580
12	Connector housing	4734414 (replaces 5241336)
