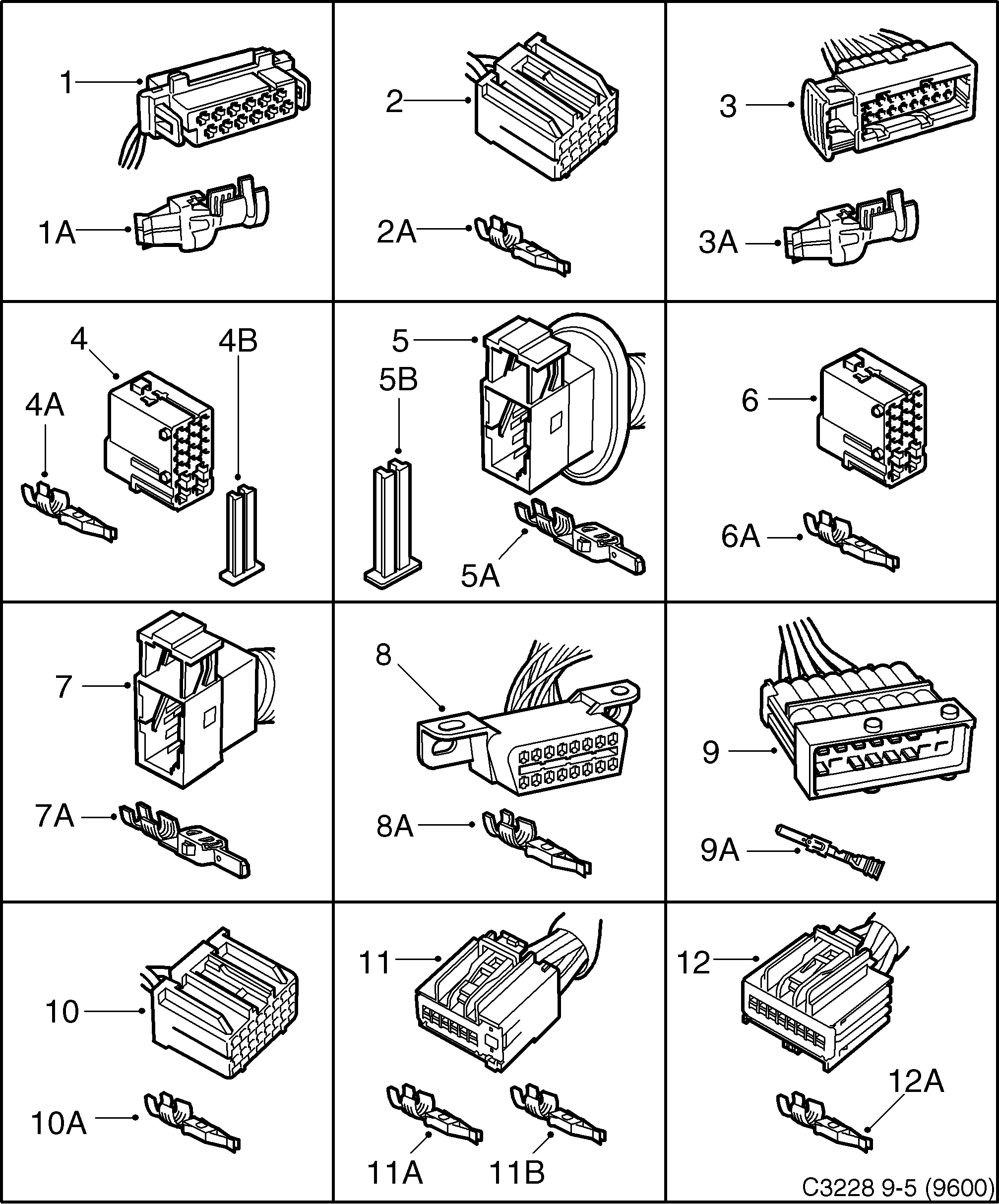

Group 3b Electrical, connector, section 500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 9525031 |
| 1A | Cable terminal | 12789796 (replaces 9120957) |
| 2 | Connector housing | 12806015 |
| 2A | Cable terminal | 12806021 |
| 3 | Connector housing | 12791005 (replaces 4114401) |
| 3A | Cable terminal | 4061586 |
| 4 | Connector housing | 4737060 |
| 4A | Cable terminal | 12790414 (replaces 4115499) |
| 4B | Locking | 4737086 |
| 5 | Connector housing | 4737102 |
| 6 | Connector housing | 4737078 |
| 6A | Cable terminal | 12789794 (replaces 9120684) |
| 6A | Cable terminal | 4466801 |
| 6C | Locking | 4737094 |
| 7 | Connector housing | 4737110 |
| 7A | Cable terminal | 12789932 |
| 7A | Cable terminal | 12790627 (replaces 4692547) |
| 7A | Cable terminal | 12790614 (replaces 4692612) |
| 8 | Connector housing | 4807954 |
| 9 | Connector housing | 5359476 |
| 9A | Cable terminal | 4115259 |
| 10 | Connector housing | 12806016 |
| 11 | Connector housing | 12762945 |
| 11A | Cable terminal | 12763137 |
| 11B | Cable terminal | 12763138 |
| 12A | Cable terminal | 12191812 |
| Connector housing | 12805741 | |
| Locking | 12806027 |
