Saab 9-5 (9600) 2002-2010 Connector housing etc 9-pin - 11-pin

Group 3b Electrical, connector, section 490

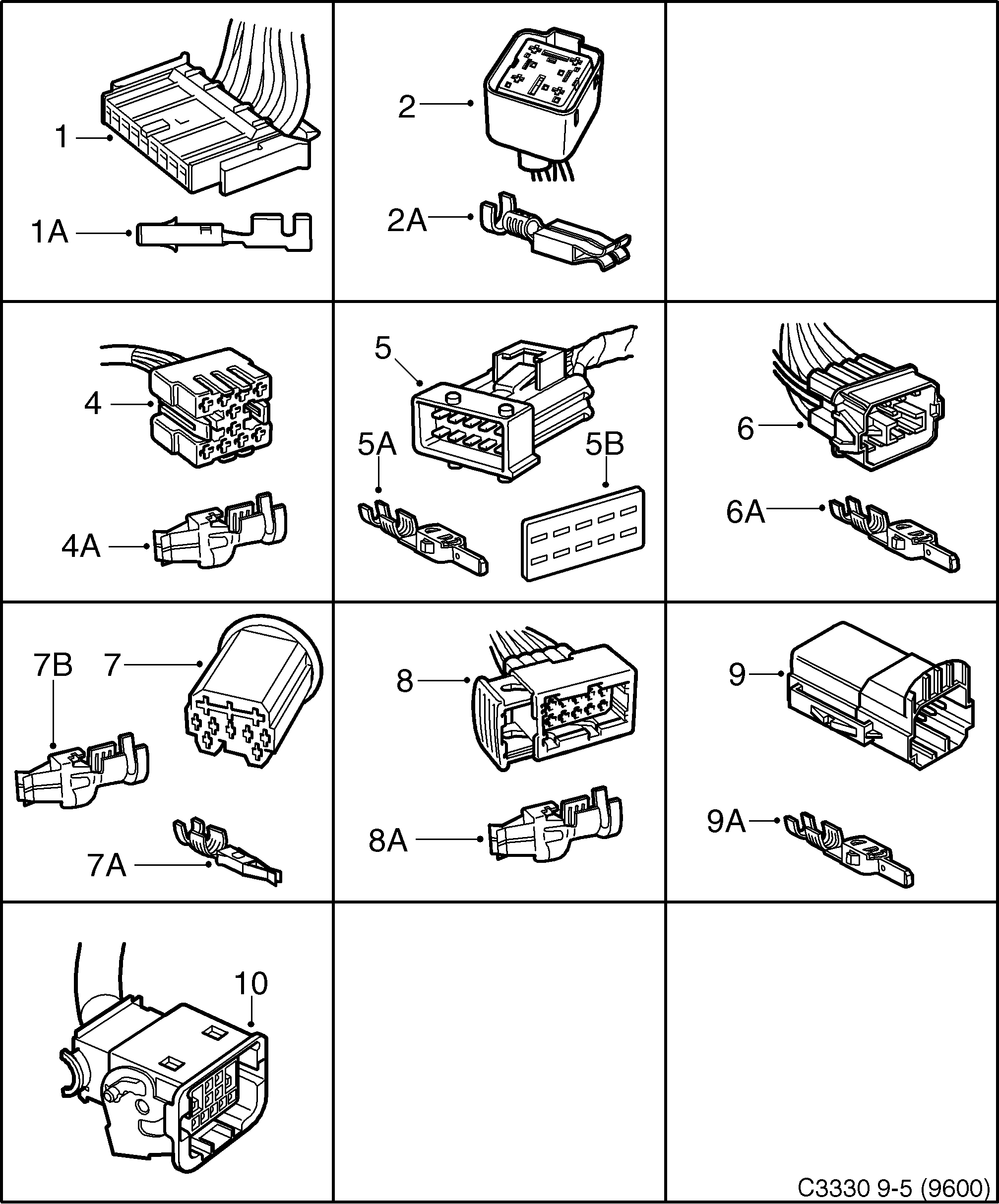

Saab 9-5 (9600) Connector housing etc 9-pin - 11-pin diagram

Pos	Article	Part No.
1	Connector housing	12790279 (replaces 5243613)
1A	Cable terminal	12789765 (replaces 5351739)
2	Connector housing	12790277 (replaces 4941829)
2A	Cable terminal	12795411 (replaces 5106315)
2A	Cable terminal	12795389 (replaces 5106364)
4	Connector housing	12764801 (replaces 9123399)
4A	Cable terminal	12789796 (replaces 9120957)
5	Connector housing	12788959 (replaces 4114054)
5A	Cable terminal	12789934 (replaces 4115192)
5B	Seal	12788965 (replaces 4114153)
6	Connector housing	4117461
6A	Cable terminal	12789934 (replaces 4115077)
7	Connector housing	12756334 (replaces 4411518)
7A	Cable terminal	12790414 (replaces 4115499)
7	Connector housing	12756333 (replaces 4411526)
8	Connector housing	12788954 (replaces 4114005)
8A	Cable terminal	4350526
8A	Cable terminal	4061586
9	Connector housing	4587895
9A	Cable terminal	12790614 (replaces 4115457)
9	Connector housing	4587903
10	Connector housing	13132235
