Saab 9-5 (9600) 2002-2010 Connector housing etc 7-pin - 8-pin

Group 3b Electrical, connector, section 480

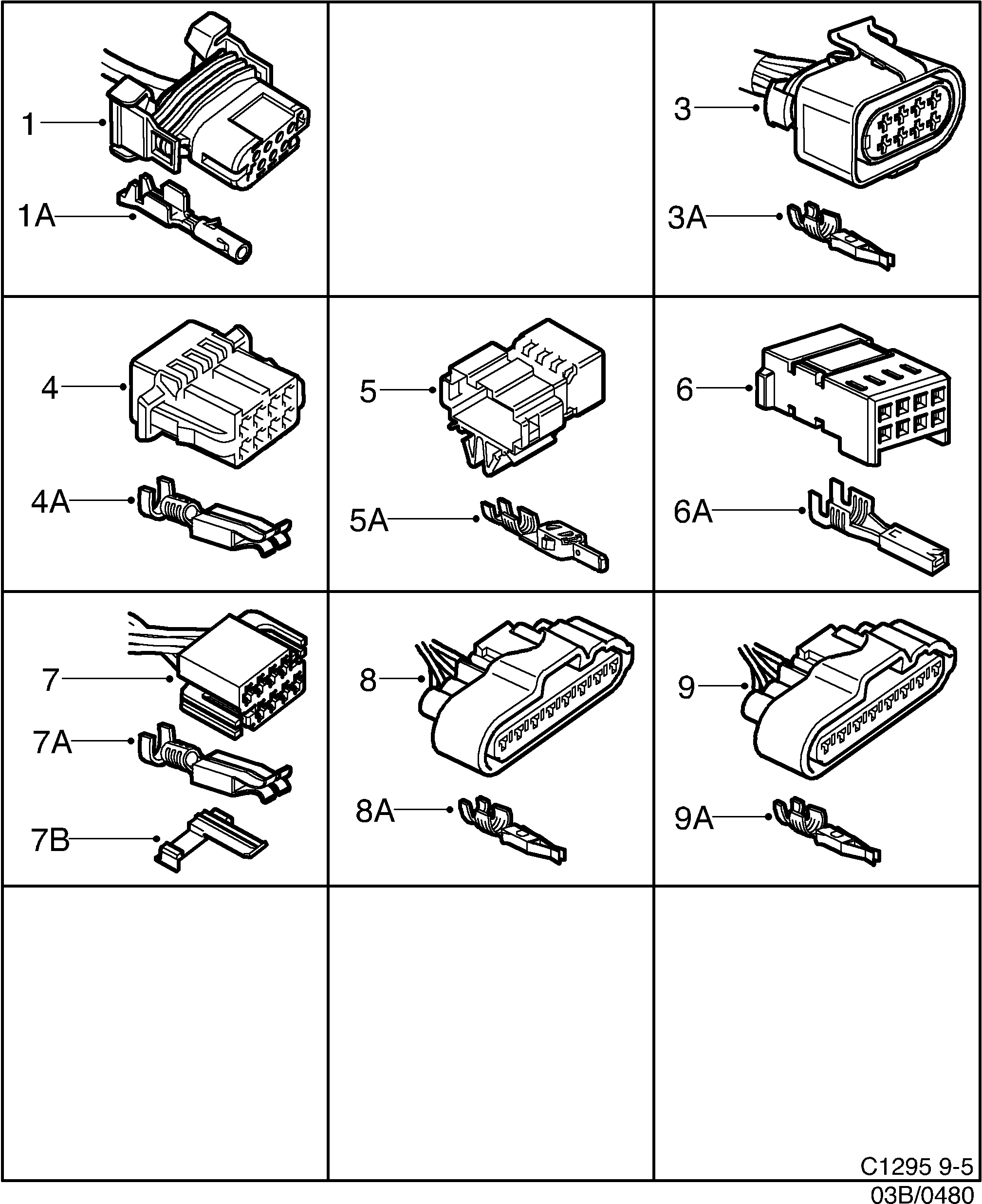

Saab 9-5 (9600) Connector housing etc 7-pin - 8-pin diagram

Pos	Article	Part No.
1	Connector housing	5241286
1A	Cable terminal	5249297
3	Connector housing	4806568
3A	Cable terminal	4692331 (replaces 4061578)
3B	Seal	4061966
4	Connector housing	12789185 (replaces 4807962)
4A	Cable terminal	12790414 (replaces 4115499)
4	Connector housing	12789185 (replaces 4807970)
5	Connector housing	12790204 (replaces 4808028)
5A	Cable terminal	12790614 (replaces 4115457)
5B	Locking	12789185 (replaces 4733267)
6	Connector housing	5241294
6A	Cable terminal	5243639
7	Connector housing	12798372 (replaces 5241674)
7A	Cable terminal	30520557 (replaces 9120791)
7B	Locking	5241401
7	Connector housing	5241658
8	Connector housing	5352505
9	Connector housing	5352513
