Saab 9-5 (9600) 2002-2010 Connector housing etc 5-pin - 6-pin

Group 3b Electrical, connector, section 470

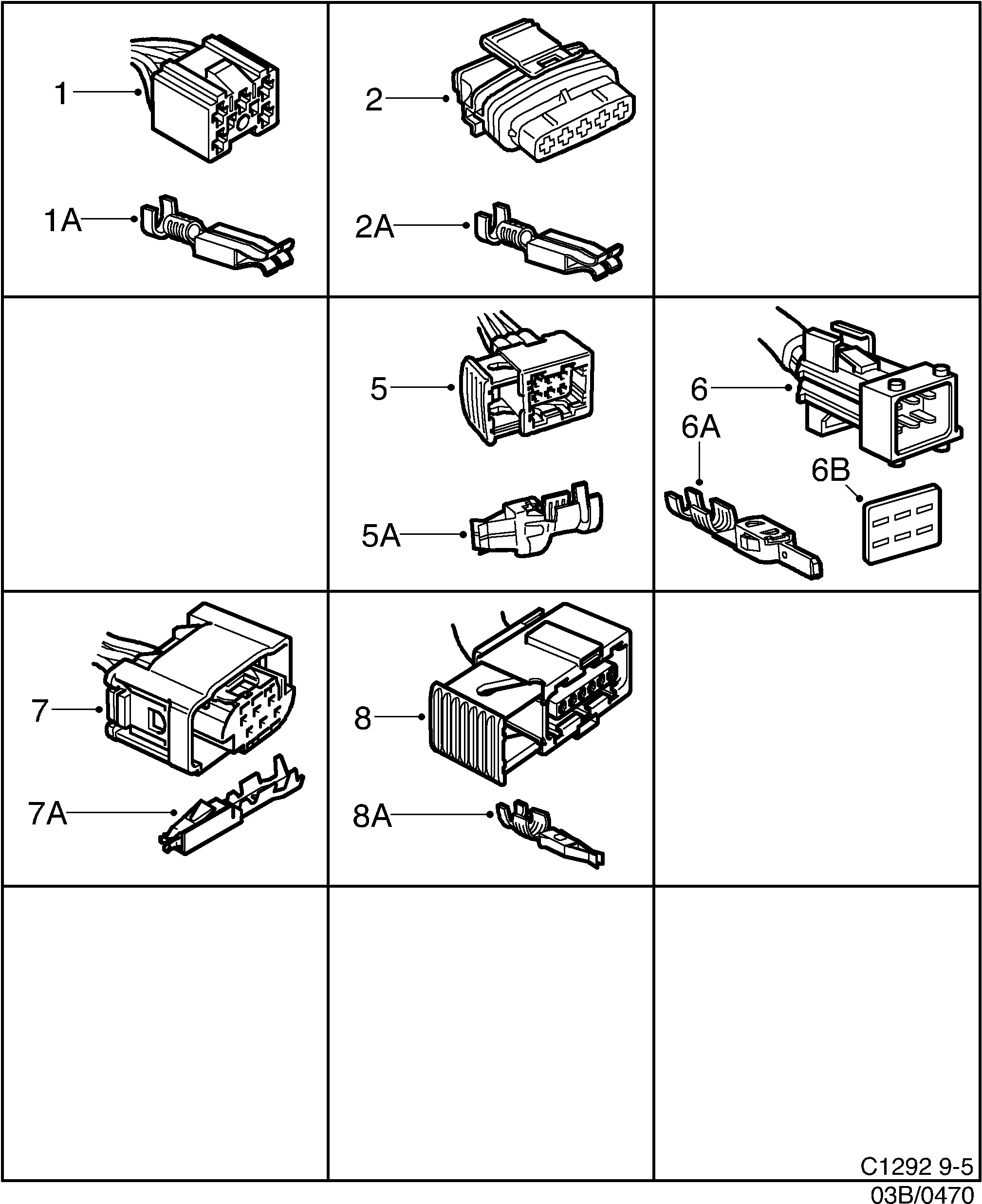

Saab 9-5 (9600) Connector housing etc 5-pin - 6-pin diagram

Pos	Article	Part No.
1	Connector housing	4224168
1A	Cable terminal	30520557 (replaces 9120791)
2	Connector housing	4738886
2A	Cable terminal	4692331 (replaces 4061578)
2B	Seal	4061966
5	Connector housing	12788966 (replaces 4113809)
5A	Cable terminal	4061586
5A	Cable terminal	12789796 (replaces 9120957)
5	Connector housing	5544556
6	Connector housing	4113858
6A	Cable terminal	12789934 (replaces 4115192)
6B	Seal	4114377
7	Connector housing	12789894 (replaces 5241278)
7A	Cable terminal	5351747
8	Connector housing	5351325
8A	Cable terminal	4466801
