Saab 9-5 (9600) 2002-2010 Connector housing etc 2-pole

Group 3b Electrical, connector, section 430

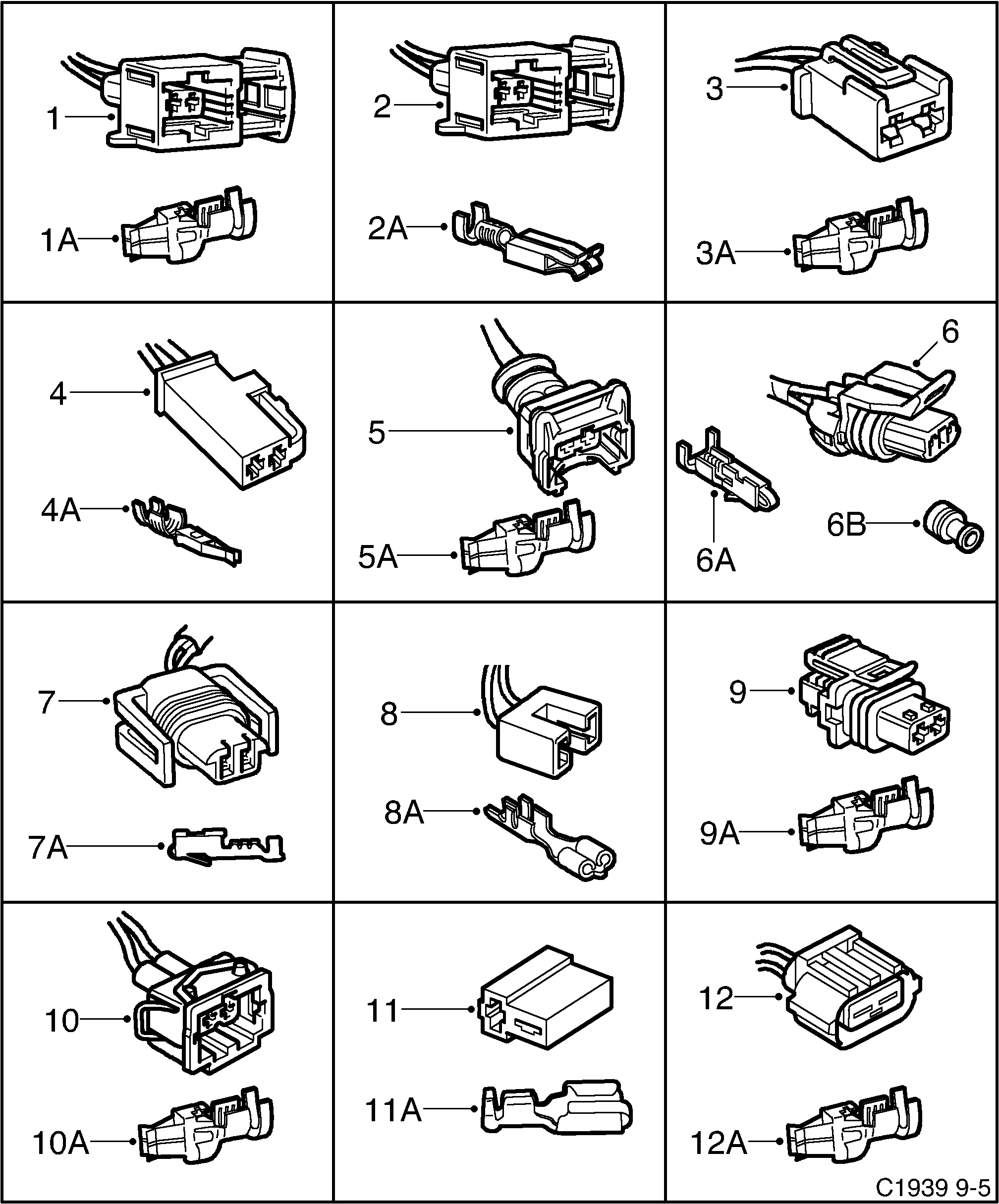

Saab 9-5 (9600) Connector housing etc 2-pole diagram

Pos	Article	Part No.
1	Connector housing	12788933 (replaces 4113205)
1	Connector housing	24444339
1	Connector housing	12788933
1A	Cable terminal	4061586
1	Connector housing	4174207
1A	Cable terminal	4063087
2	Connector housing	12788982 (replaces 4113411)
2A	Cable terminal	12970428 (replaces 4354171)
2A	Cable terminal	30520557 (replaces 9120791)
3	Connector housing	12790106 (replaces 9123548)
3A	Cable terminal	12789796 (replaces 9120957)
4	Connector housing	12795968 (replaces 4117164)
4A	Cable terminal	12789934 (replaces 4115077)
4	Connector housing	12789425
4A	Cable terminal	12790414 (replaces 4115499)
5	Connector housing	12790247 (replaces 4178414)
5	Connector housing	4433439
6	Connector housing	12790252 (replaces 4201224)
6A	Cable terminal	4418505
6B	Locking	12789184 (replaces 4201232)
7	Connector housing	4201273
7A	Cable terminal	4488458
7	Connector housing	4434841
8	Connector housing	12790259 (replaces 4203733)
8A	Cable terminal	12798482 (replaces 4464442)
9	Connector housing	12790267 (replaces 4668596)
10	Connector housing	4738175
11	Connector housing	12790282 (replaces 8574949)
11A	Cable terminal	4464400
12	Connector housing	12790273 (replaces 4811162)
