Saab 9-5 (9600) 2001-2001 Connector housing etc 43-pin-

Group 3b Electrical, connector, section 410

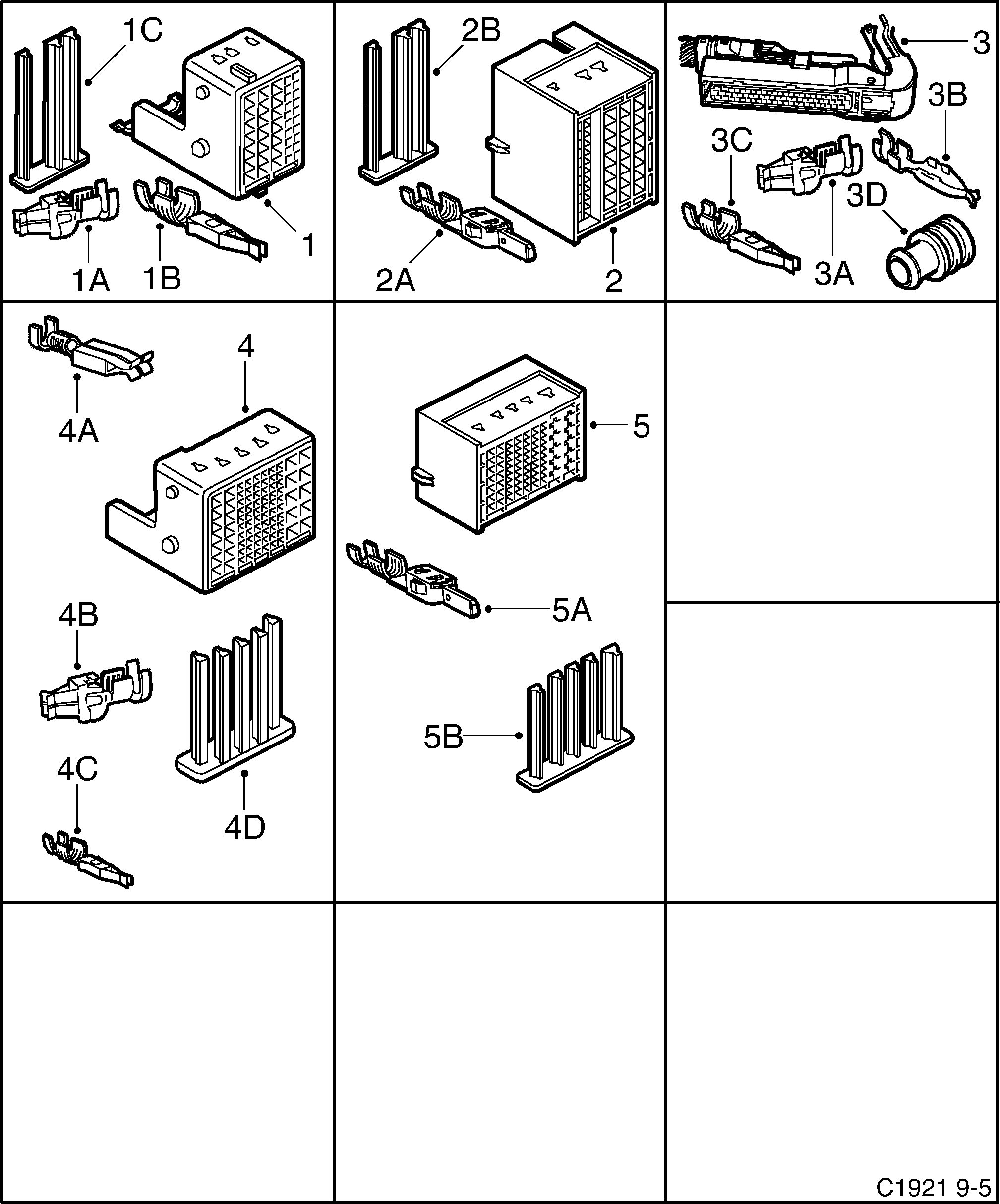

Saab 9-5 (9600) Connector housing etc 43-pin- diagram

Pos	Article	Part No.
1	Connector housing	4692984
1A	Cable terminal	12789796 (replaces 9120957)
1A	Cable terminal	12790614 (replaces 4115457)
1B	Cable terminal	12790414 (replaces 4115499)
1C	Locking	4692992
1	Connector housing	4693008
2	Connector housing	4693040
2A	Cable terminal	12789934 (replaces 4115077)
2	Connector housing	4693032
3	Connector housing	4176616
3A	Cable terminal	4061586
3C	Cable terminal	4354353
3C	Cable terminal	4669602
3D	Seal	4061966
3D	Seal	12798372 (replaces 4061974)
3D	Seal	4352928
3D	Seal	12798378 (replaces 4354320)
3D	Seal	12798370 (replaces 4061958)
3D	Seal	4537213
4	Connector housing	4693016
4A	Cable terminal	30520557 (replaces 9120791)
4B	Cable terminal	4063087
4D	Locking	4693024
5	Connector housing	4693057
5A	Cable terminal	4115580
5A	Cable terminal	4115275
